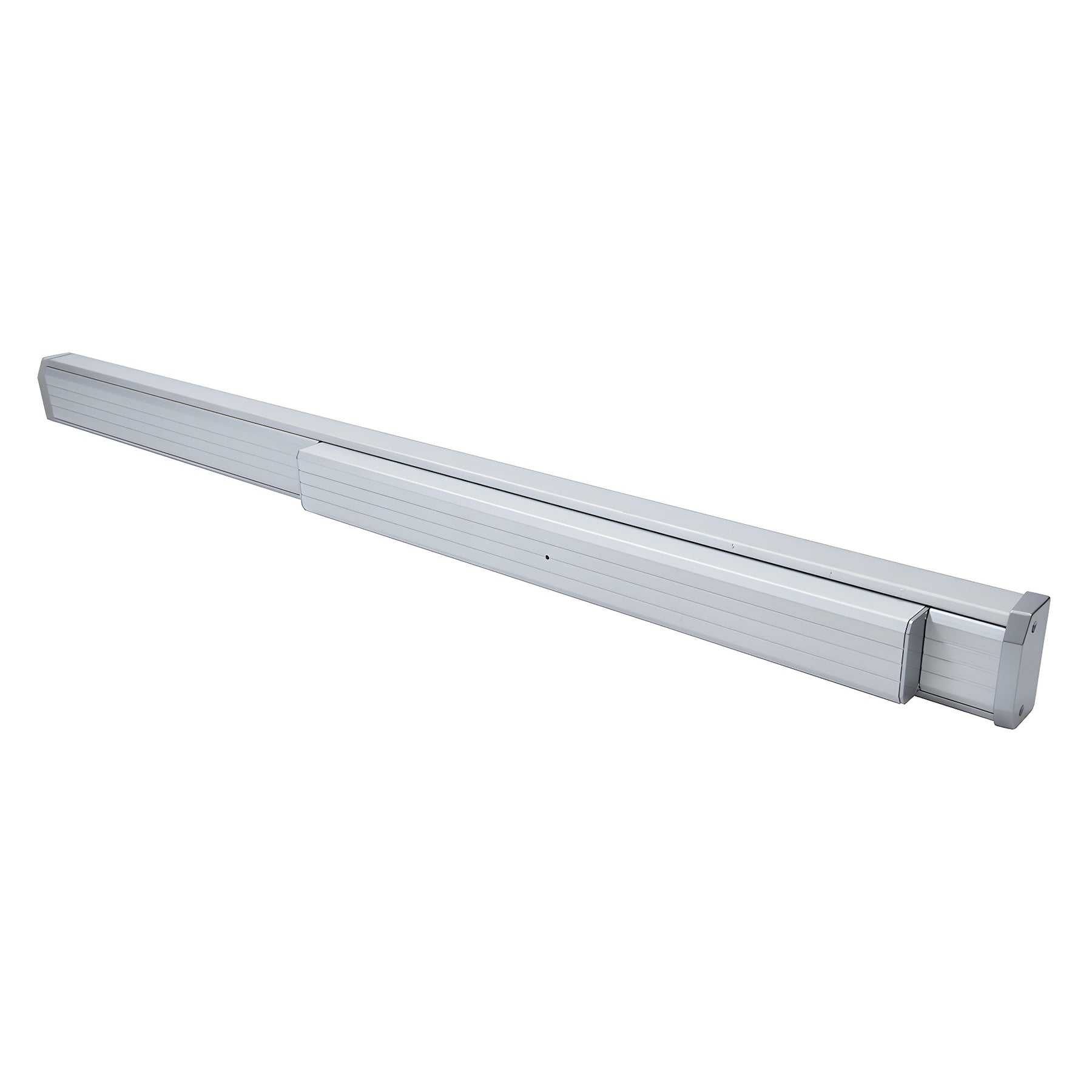

CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Item # 311285R4628
$505.93
CAD
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 311285R4628 |
|---|---|
| Sold As | 1 Each |
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Height | 84 in. (2133.6 mm) |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Door Width | 48 in. (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material - End Cap | Aluminum |
| Material - Housing | Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height | 3-3/16 in. (81 mm) |
| Panic Bar Projection | 2-7/8 in. (73 mm) |
| Panic Bar Width Net | 46-1/2 in. (1181.1 mm) |
| Panic Dogging | Standard Hex Key Dogging |
| Panic Type | Concealed Vertical Rods |
| Push Pad Width | 24 in. (609.6 mm) |
| Recommended Door Type | Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J628 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| UL Listed | Yes |
Description
- Suitable for Use with Narrow, Medium and Wide Stile Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
This sleek, contemporary CRL Jackson® Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" (1.22 m) standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
