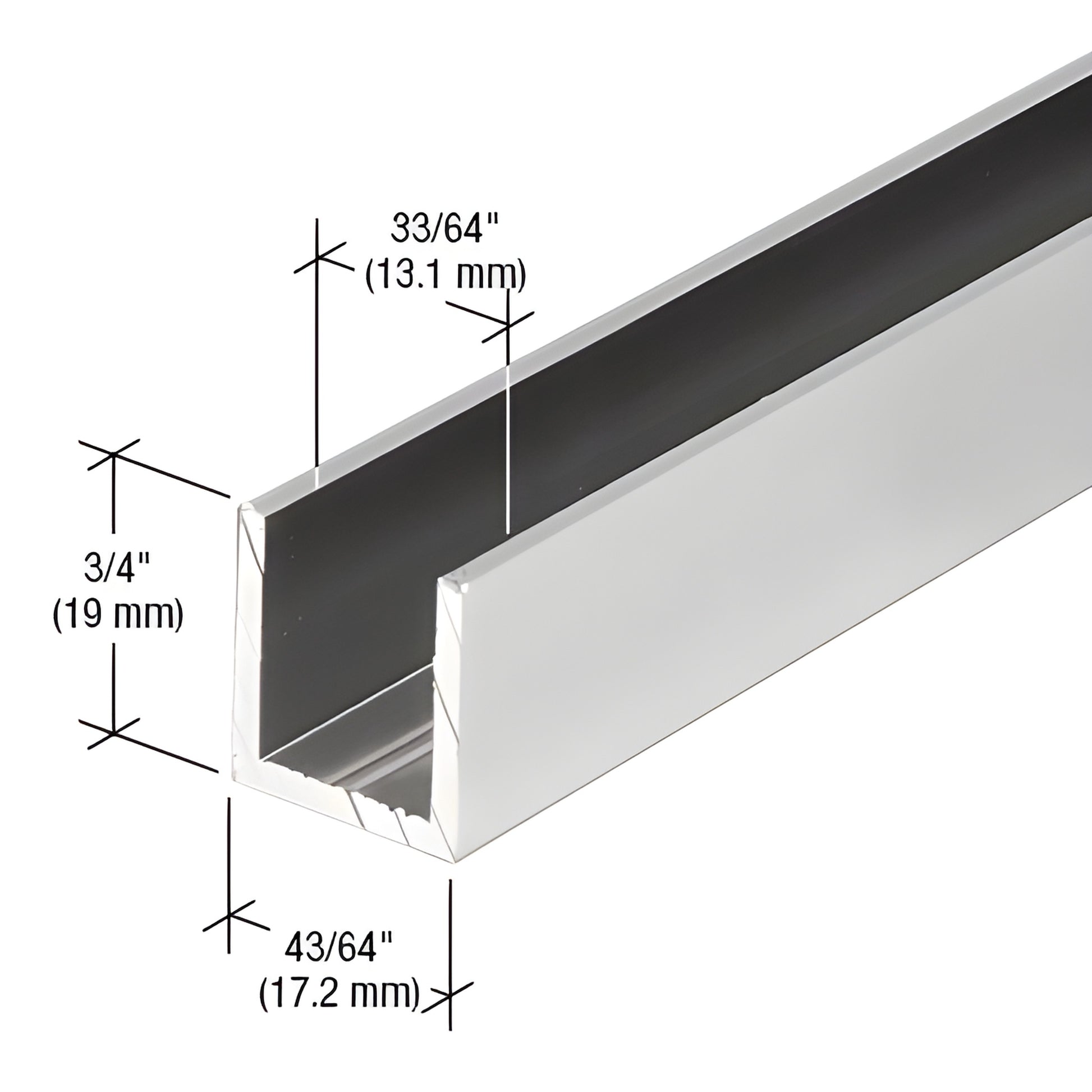

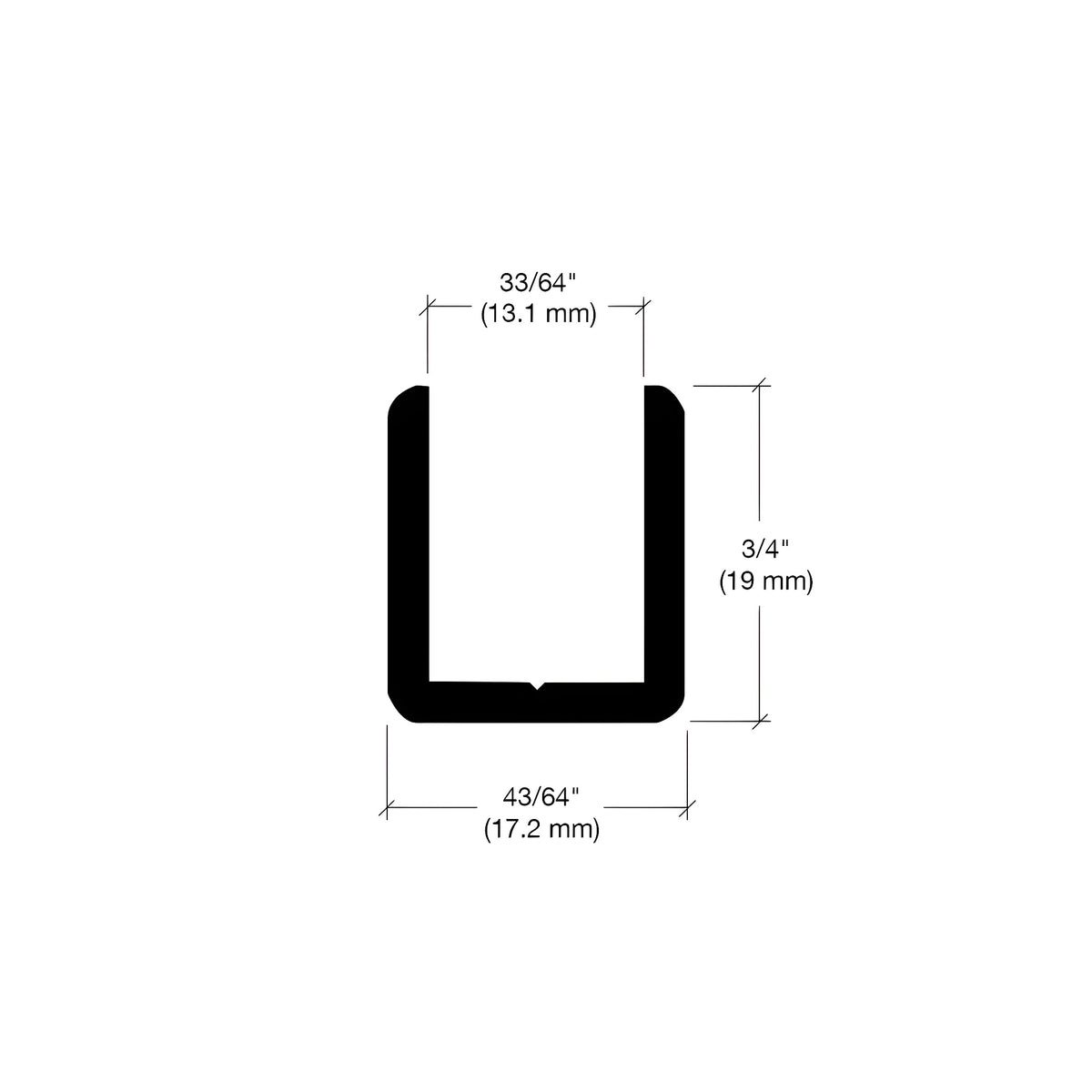

CRL Satin Anodized 1/2" Fixed Panel Shower Door Deep U-Channel 95"
Item# SDCD12A
Shipping Weight: 1.44 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.44 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Satin Anodized
Glazing Pocket Width
.518
Glazing Thickness
1/2 in. (12 mm)
Height
3/4 in. (19 mm)
Length
95 in. (2413 mm)
Material
Aluminum
Profile
Deep
Width
11/16 in. (17.1 mm)
- Fits 3/8" and 1/2" (10 and 12 mm) thick glass
- Deep pocket design secures fixed glass panels—ideal for frameless shower enclosures
- Can be used alone or paired with regular-depth U-channel
- Wet-glazed installation with clear silicone for permanent glass retention
- Available in popular 95" (2.41 m) lengths; select profiles also in economical 144" (3.66 m)
- End caps available to conceal and finish channel ends
- Works with monolithic tempered glass
CRL Deep U-Channel (SKU: SDCD12A) secures fixed glass panels to walls, ceilings, or floors. The 3/4" (19 mm) high profile and deep pocket make it especially useful as a top channel where glass is inserted from above and set into a regular U-channel at the base. Widths suitable for 1/2" (12 mm) glass are individually wrapped to protect the finish. Over a dozen stock finishes are offered for matching aesthetics.
SPECIFICATIONS:
Typical Uses: Commonly used in frameless shower installations to secure fixed glass panels to wall, ceiling, or floor.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, please contact CRL Customer Service. Product images are actual product or close representations; colors may vary by monitor.
Contact CRL to confirm finish availability and place your order today.
Cleaning & Maintenance
