CRL Antique Brass 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
Item # SDCD12ABRS
$108.26
CAD
Finish (21)
-
Oil Rubbed Bronze -
Satin Anodized -
Brushed Anodized -
Antique Brass -
Brite Anodized -
Brushed Bronze -
Brushed Chrome -
Brite Gold Anodized -
Gloss Black -
Brushed Nickel -
Brushed Stainless Anodized -
Dark Brushed Bronze -
French Gold -
Gun Metal -
Matte Black -
Modern Gold -
Matte Gun Metal -
Polished Nickel -
Polished Stainless -
Satin Brass -
Satin Nickel
Overview
| SKU | SDCD12ABRS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Antique Brass |

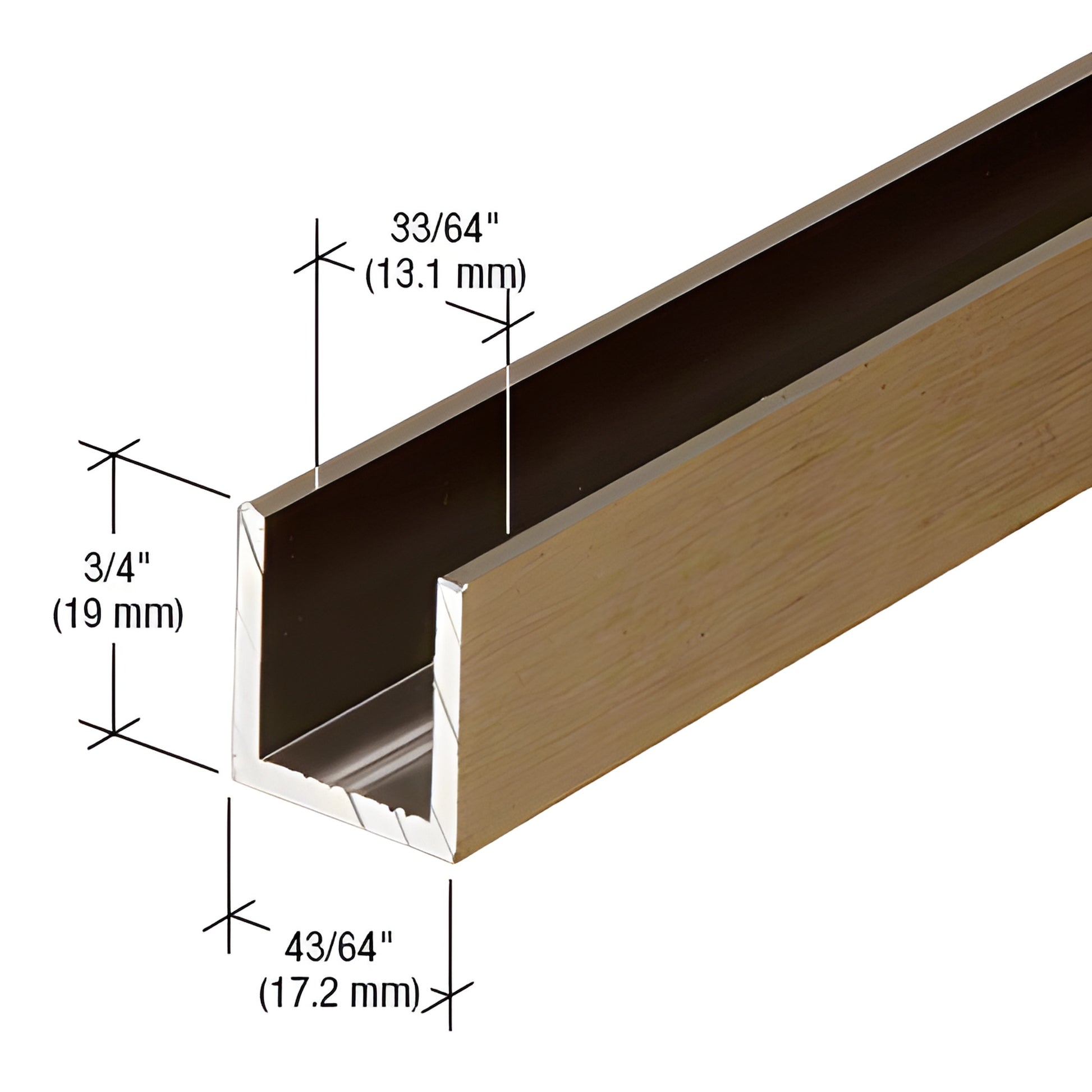

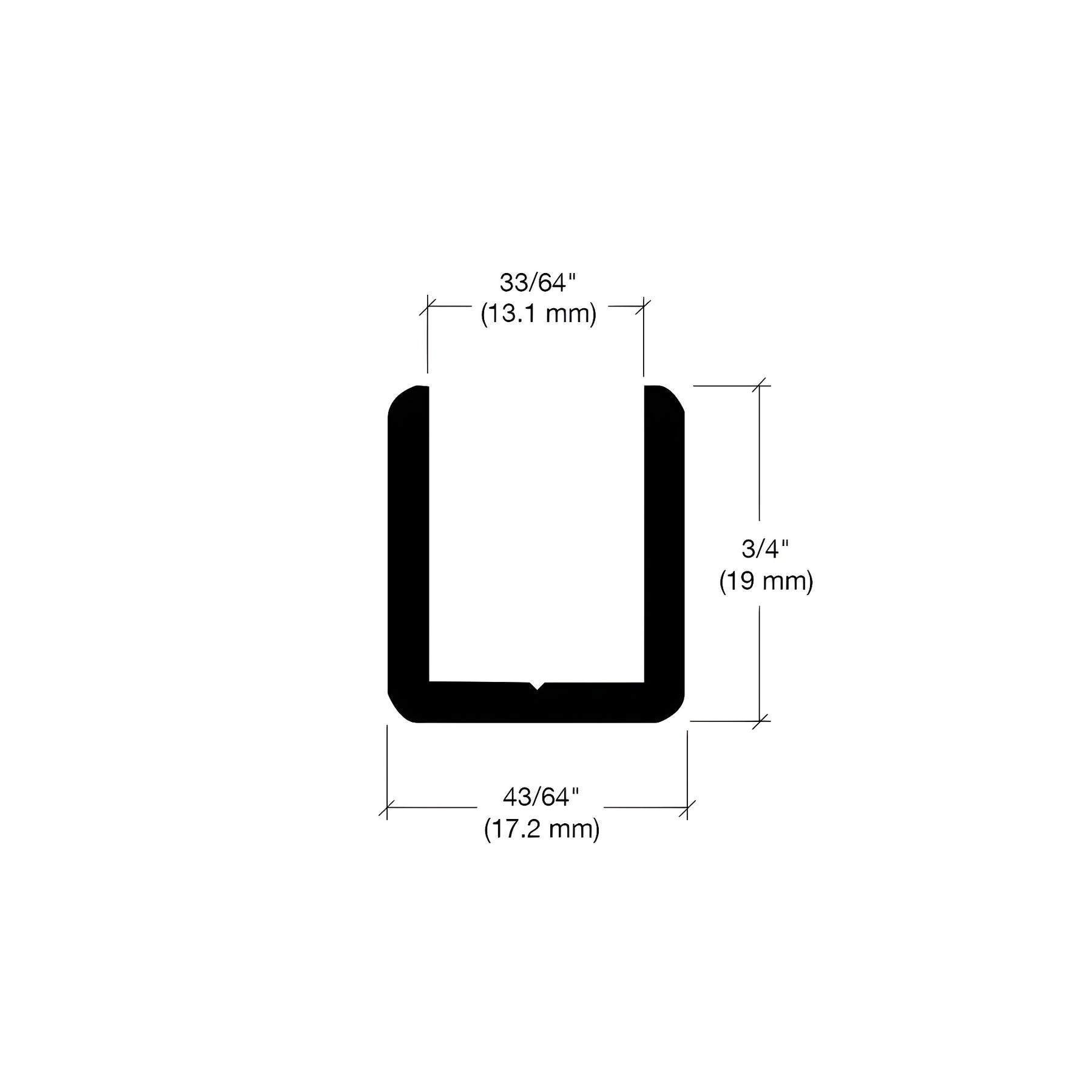

| Glazing Pocket Width | 0.518 in. (13 mm) |
| Glazing Thickness | 1/2 in. (12 mm) |
| Height | 3/4 in. (19 mm) |
| Leg Height | 3/4 in. (19 mm) |
| Length | 95 in. (2413 mm) |
| Material | Aluminum |
| Profile | Deep |
| Width | 11/16 in. (17.1 mm) |
Description
- For 3/8" and 1/2" (10 and 12 mm) Thick Glass
- Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
- May Be Used Alone or with Regular Depth U-Channel
- Wet Glazed with Clear Silicone to Secure Glass
- All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
- End Caps Offered to Conceal Ends of Channel
- Use Monolithic Tempered Glass
CRL Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" (12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) high profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. Over a dozen stock finishes are offered.
SPECIFICATIONS:
Typical Uses: Most Commonly Used in Frameless Shower Installations for Securing Fixed Panels of Glass to the Wall, Ceiling or Floor
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
