CRL Satin Anodized Aluminum Single Glass Channel 1/4" x 1"
Item# D623A
Shipping Weight: 1.8 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.8 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
50
Finish/Color
Satin Anodized
Glazing Thickness
1/4

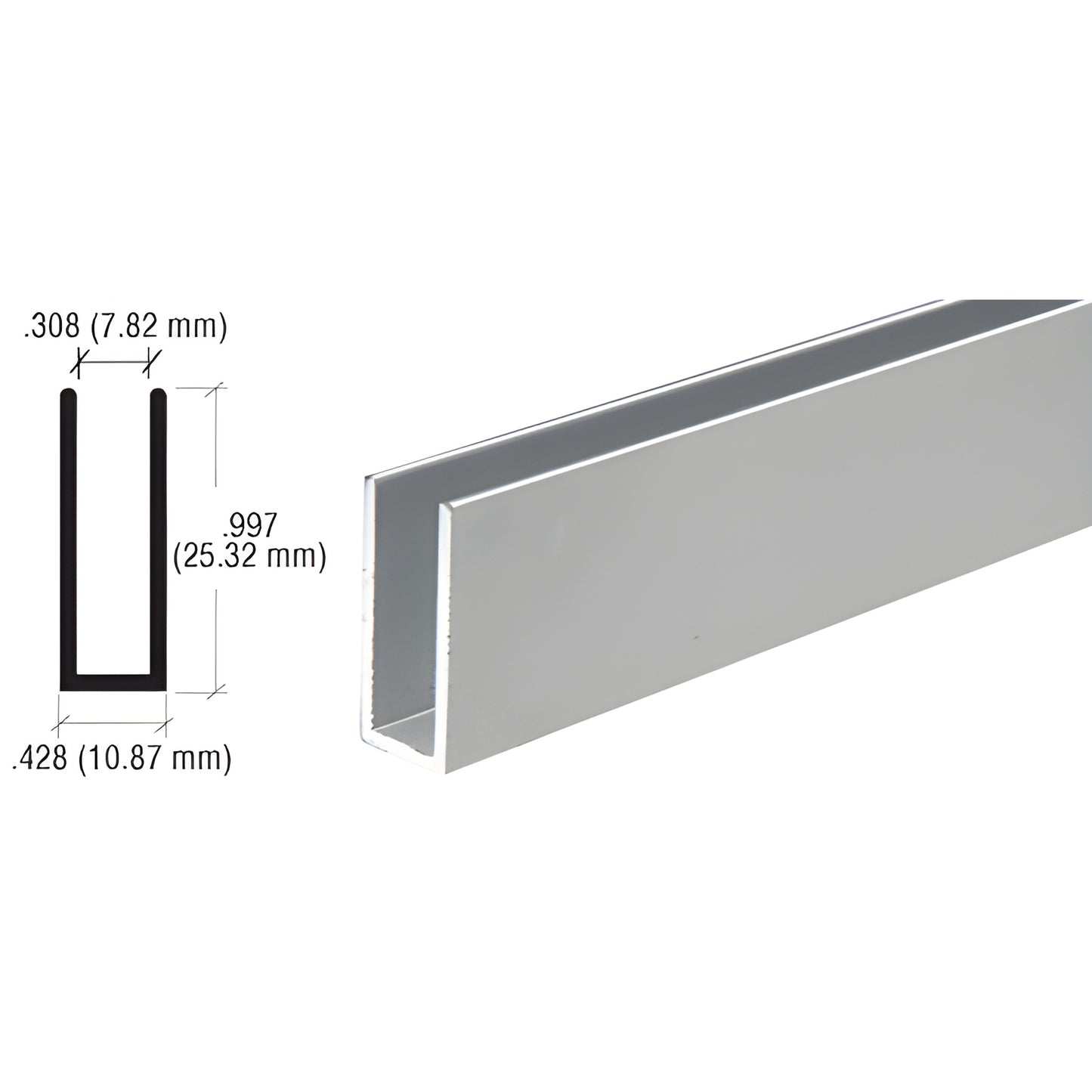

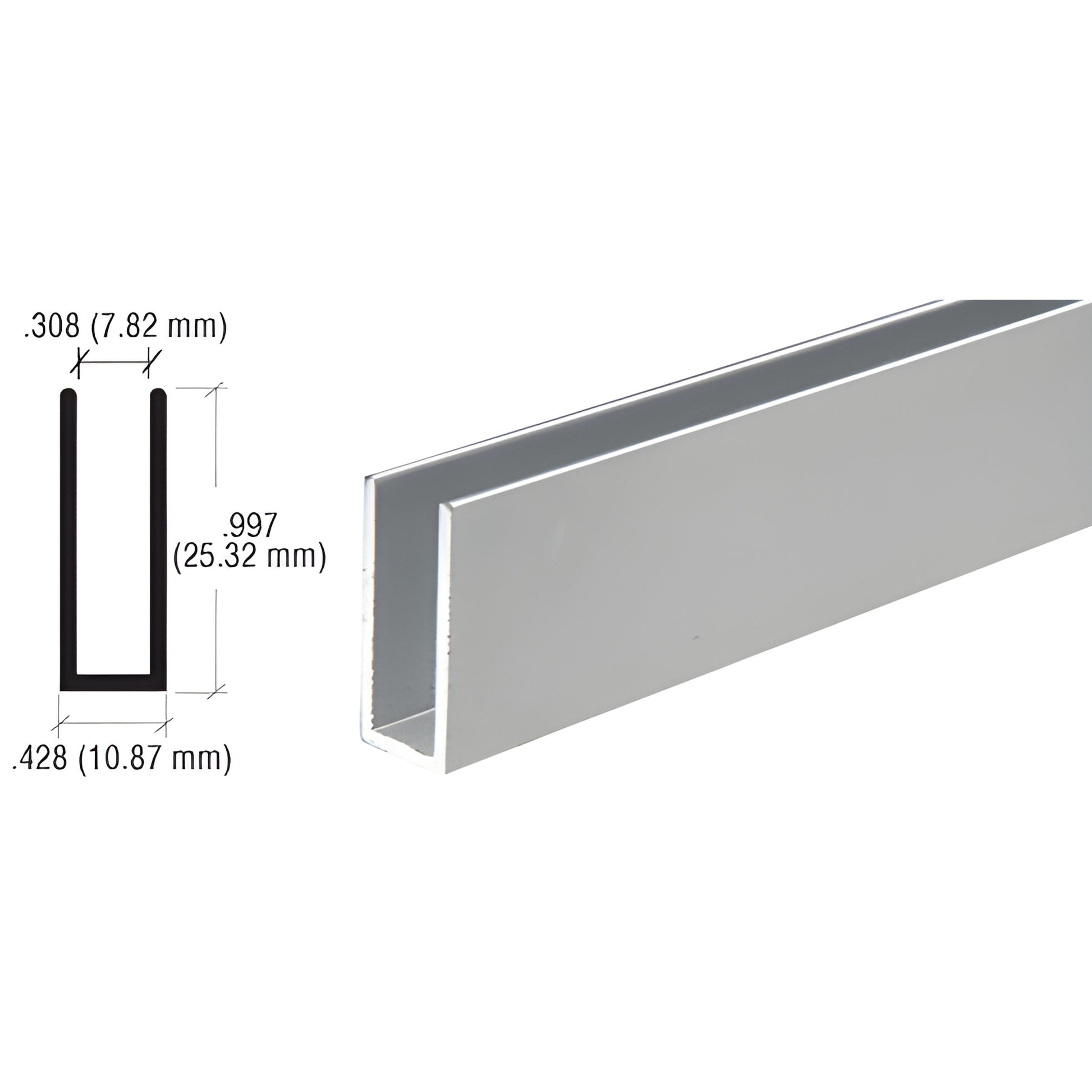

Height
0.997 in. (25 mm)
Length
144 in. (3658 mm)
Material
Aluminum
Open Width
0.308 in. (8 mm)
Thickness
0.06 in. (1.52 mm)
Width
0.428 in. (11 mm)
Wrist Circumference
1/4 in. (6 mm)
- Use to frame hinged doors or fixed frames for 1/4" (6 mm) materials
- Easy-to-install aluminum extrusion for glass doors and display frames
- Attractive finishes available for showcases, shadow boxes, and cork boards
CRL Universal Framing Extrusions are 6063-T5 aluminum extrusions designed for framing smaller hinged glass doors, showcase displays, cork board frames, and shadow boxes. Compatible with CRL Vinyl glazing. Uses Cat. No. D662WS corner and screws (sold separately).
SKU: D623A
SPECIFICATIONS:
Material: 6063-T5 aluminum alloy
Thickness: 0.060" (1.52 mm)
Stock Length: 12' (3.66 m)
Typical Uses: Glass edge protection; fabricate hinged doors, small windows, and display frames for 1/4" materials
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, please contact CRL Customer Service. Product images are actual product or close representations; colors may vary by monitor.
Order D623A today to get durable, easy-to-install aluminum framing extrusions for your 1/4" glass door and display projects.
