CRL 10 ft Satin Anodized Aluminum Glazing Channel for 1/2 in Glass

• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass
• Use monolithic tempered glass
• Standard channel requires no holes in the glass (no-drill glass channel)
• Two-piece front-load clamp-on mechanical glazing channel for dry glazed assemblies
• Pre-drilled and tapped for channel clamps every 11-13/16" (300 mm) on center
• Available finishes: satin anodized and brushed brite anodized
• Standard 10' (3.05 m) lengths

SKU: MGC12SA

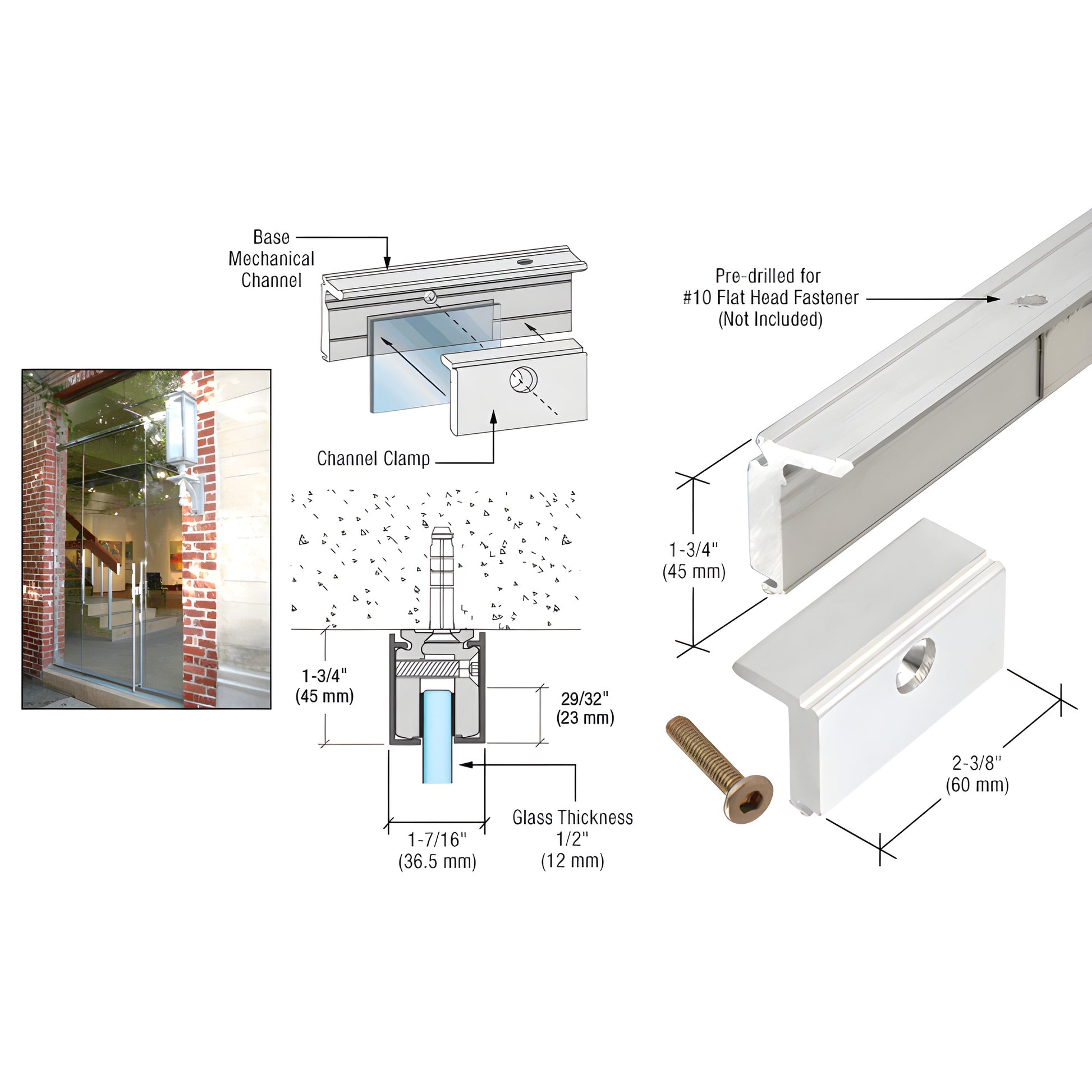

CRL Mechanical Glazing Channel is a dry-glazed, two-piece, front-load clamp-on channel designed for installations where lift-and-drop glazing is not possible. The system installs without wet silicone and requires no holes in the glass, making it ideal for no-drill tempered glass partitions and balustrades. Channel clamps fasten to the channel (pre-drilled every 300 mm) and Channel End Caps provide a finished appearance.

Includes: one base channel, ten channel clamps with screws, and two decorative snap-on covers. End caps sold separately.

NOTE: No holes are required in the glass. Kits ship as described; verify glass thickness and finish before ordering.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety requirements, and appropriate fixing procedures.

Order SKU MGC12SA today or contact CRL Customer Service to confirm fit and finish.
