CRL Satin Anodized 10' Mechanical Glazing Channel for 3/4"
CRL Satin Anodized 10' Mechanical Glazing Channel for 3/4"
Regular price
$548.40 CAD
Regular price
Sale price
$548.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MGC34SA
Shipping Weight: 14.75 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.75 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/4 in. (19 mm) |
| Height 1-3/4 in. | (44 mm) |
| Length 120 in. | (3048 mm) |
Overview

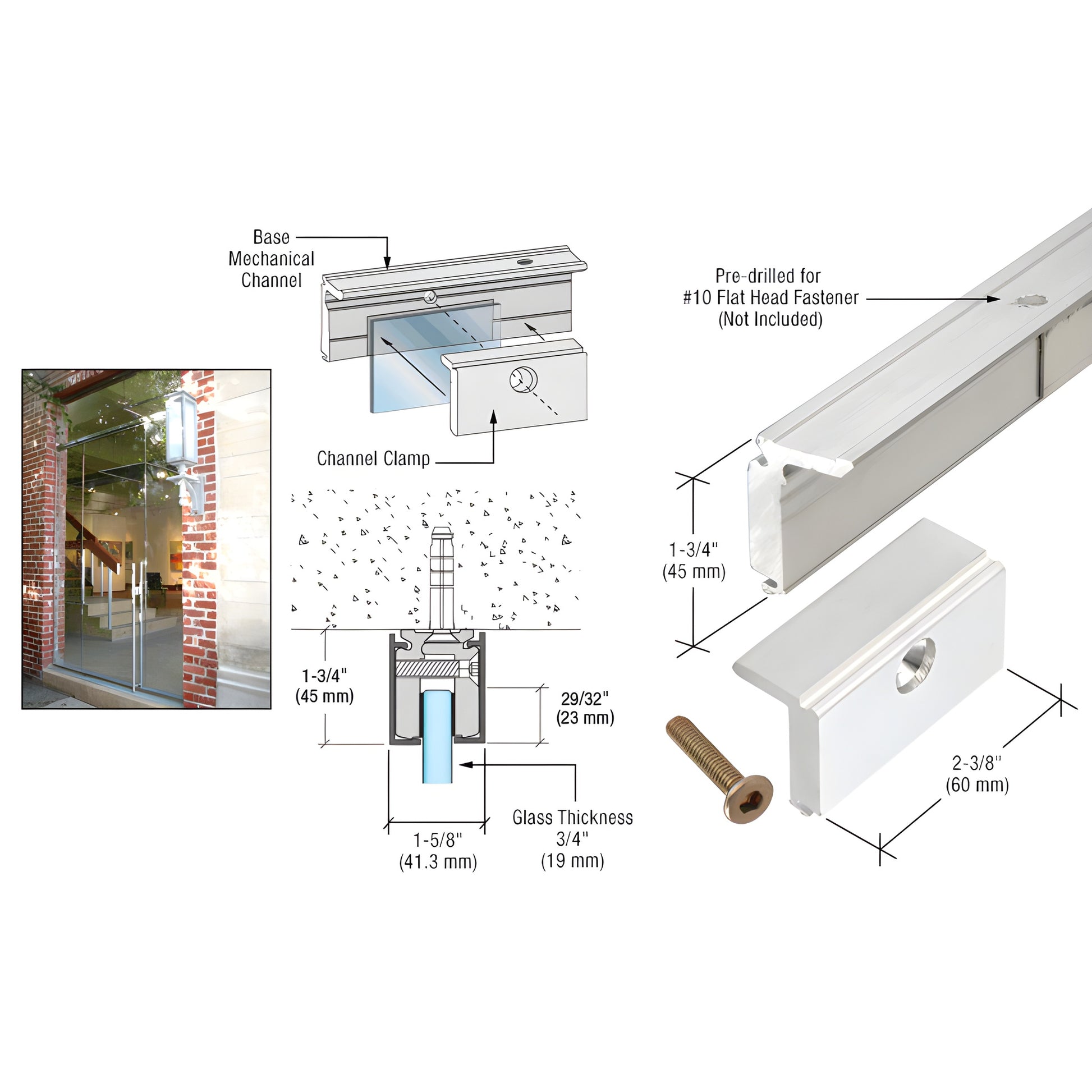

The CRL Mechanical Glazing Channel offers a versatile solution for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass, ideal for use with monolithic tempered glass.
This dry glazed system eliminates the need for wet silicone glazing and features a two-piece front load clamp-on channel for easy installation, especially in situations where lift and drop applications aren't feasible.
Available in satin anodized and brushed brite anodized finishes, these channels come in standard 10' (3.05 m) lengths and include pre-drilled and tapped holes for channel clamps every 11-13/16" (300 mm) on center.
Please note, no holes are required in the glass for installation, and the product kits include a base channel, ten channel clamps with screws, and two decorative snap-on covers, while end caps are sold separately.
This dry glazed system eliminates the need for wet silicone glazing and features a two-piece front load clamp-on channel for easy installation, especially in situations where lift and drop applications aren't feasible.
Available in satin anodized and brushed brite anodized finishes, these channels come in standard 10' (3.05 m) lengths and include pre-drilled and tapped holes for channel clamps every 11-13/16" (300 mm) on center.
Please note, no holes are required in the glass for installation, and the product kits include a base channel, ten channel clamps with screws, and two decorative snap-on covers, while end caps are sold separately.
