CRL Satin Anodized Aluminum 10' Glazing Channel for 3/8" Glass

• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass
• Use with monolithic tempered glass
• Standard channel requires no holes in the glass—dry glazed system
• Two-piece, front-load clamp-on channel for easier installation where lift-and-drop isn’t possible
• Pre-drilled and tapped holes for channel clamps every 11-13/16" (300 mm) on center
• Available finishes: Satin Anodized and Brushed Brite Anodized
• Standard 10' (3.05 m) lengths

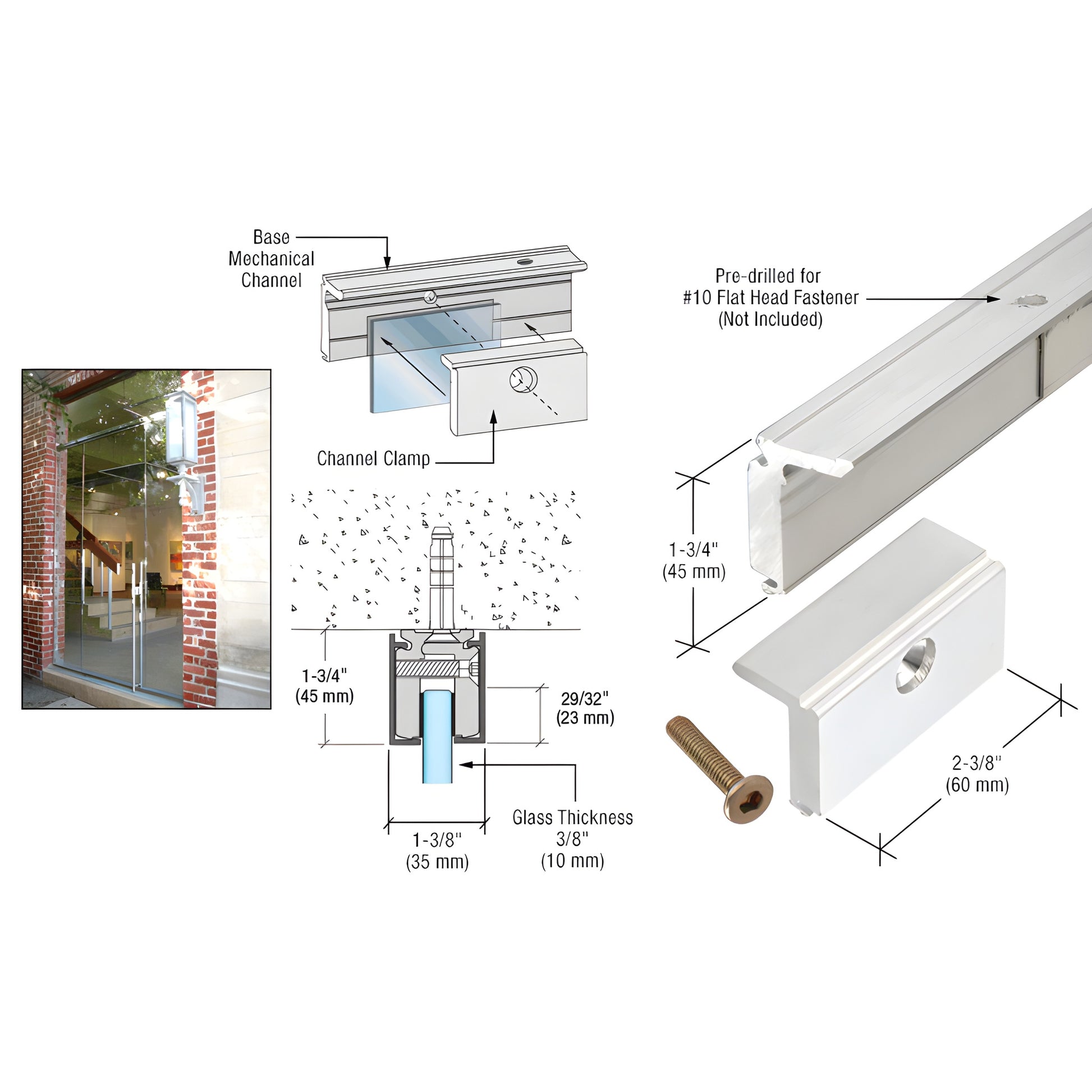

CRL Mechanical Glazing Channel (SKU: MGC38SA) is a dry-glazed, two-piece clamp-on channel designed for monolithic tempered glass applications. Because the system is front-load and requires no glass drilling, it’s ideal for retrofit and lift-and-drop-restricted installations. Pre-drilled, tapped mounting locations accept channel clamps every 11-13/16" (300 mm). Decorative snap-on covers provide a finished appearance; end caps are sold separately.

Kit includes: one base channel, ten channel clamps with screws, and two decorative snap-on covers. End caps sold separately.

NOTE: No holes are required in the glass.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Order the CRL MGC38SA mechanical glazing channel for a no-drill, clamp-on glass channel solution—contact CRL or add to cart to get started.
