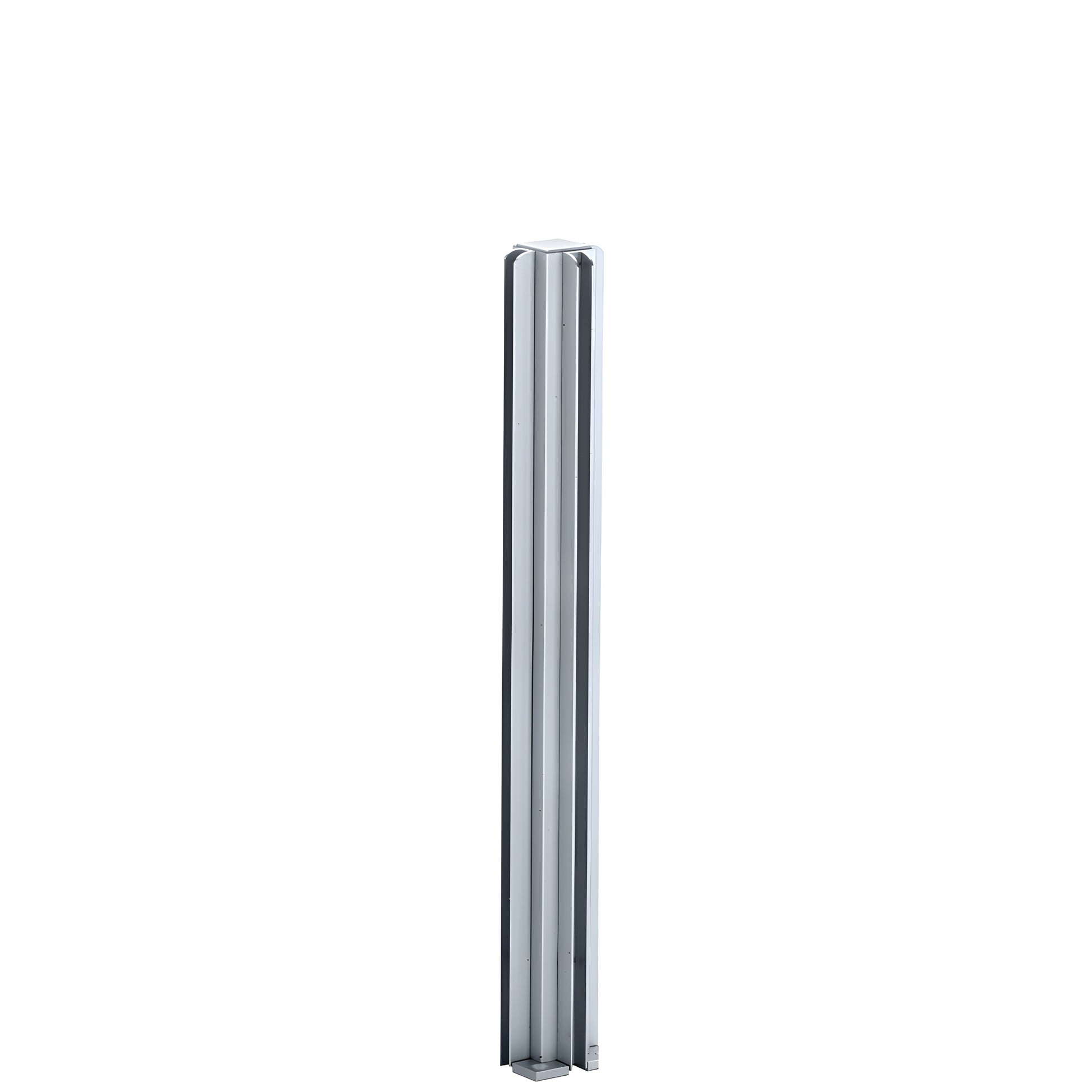

CRL 18in Satin Anodized 4-Way Restroom Partition Post

• Stock post sizes, RED-E to ship
• Standard heights: 12", 18", and 24" (305, 457, and 610 mm); available in four finishes
• Five configurations: End, Center, Corner, 3-Way, and 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included
• Designed for monolithic tempered glass

CRL Design Series partition posts (SKU: D990A184W) are widely used in banks, offices, restaurants, and commercial interiors as durable partition posts for glass panels. Their slim-line profile, full-length aluminum glazing channels, and easy-to-install mounting base make these partition posts a trusted choice for tempered glass room dividers, office glass partitions, and glass railing infill systems. Glass is secured using Cat. No. 33SC Clear Silicone. Custom 135° posts are available in select finishes and sizes. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws for mounting.

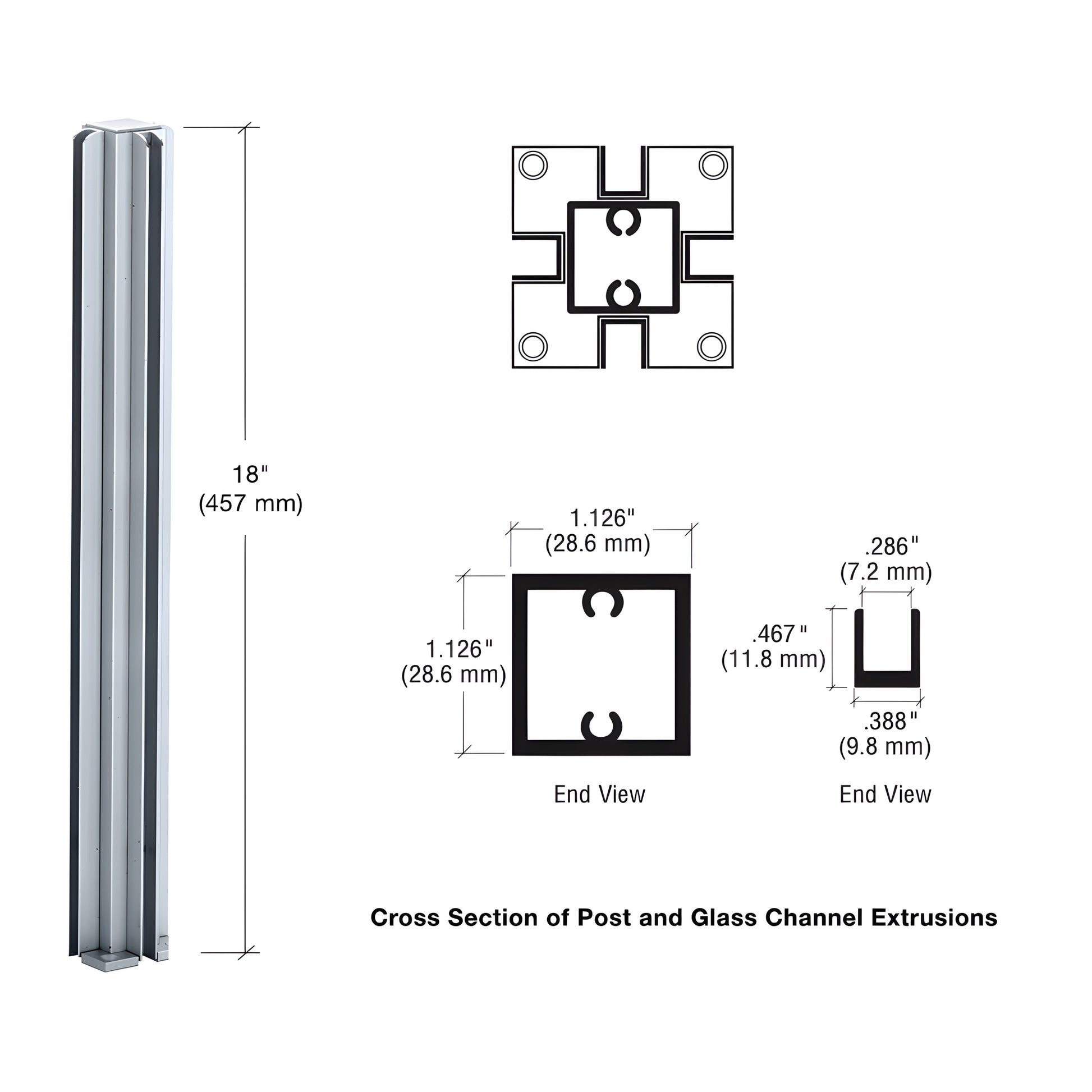

Fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.

Product Warning:
Use Cat. No. 33SC Clear Silicone to secure glass into the glazing channels. Ensure tempered glass and thickness match product specifications and local code requirements.


Ready to order partition posts for glass? Contact CRL or add SKU D990A184W to your cart.
