CRL Satin Anodized 3m Cladding for L56S/L21S/L25S Aluminum Shoe
Item# LBSCSA10
Shipping Weight: 7.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Satin Anodized
Height
4-13/16 in. (122.2 mm)
Length
118-1/8 in. (3000 mm)
Material
Aluminum
Thickness
.050 in. (1.27 mm)
Width
7/8 in. (22.2 mm)
- Adhere with AT234 Cladding Tape or 33SC Silicone Sealant for secure installation
- Available in seven architectural finishes for exterior and interior base shoe cladding
- Custom cutting and mitering service available for precise fit on site

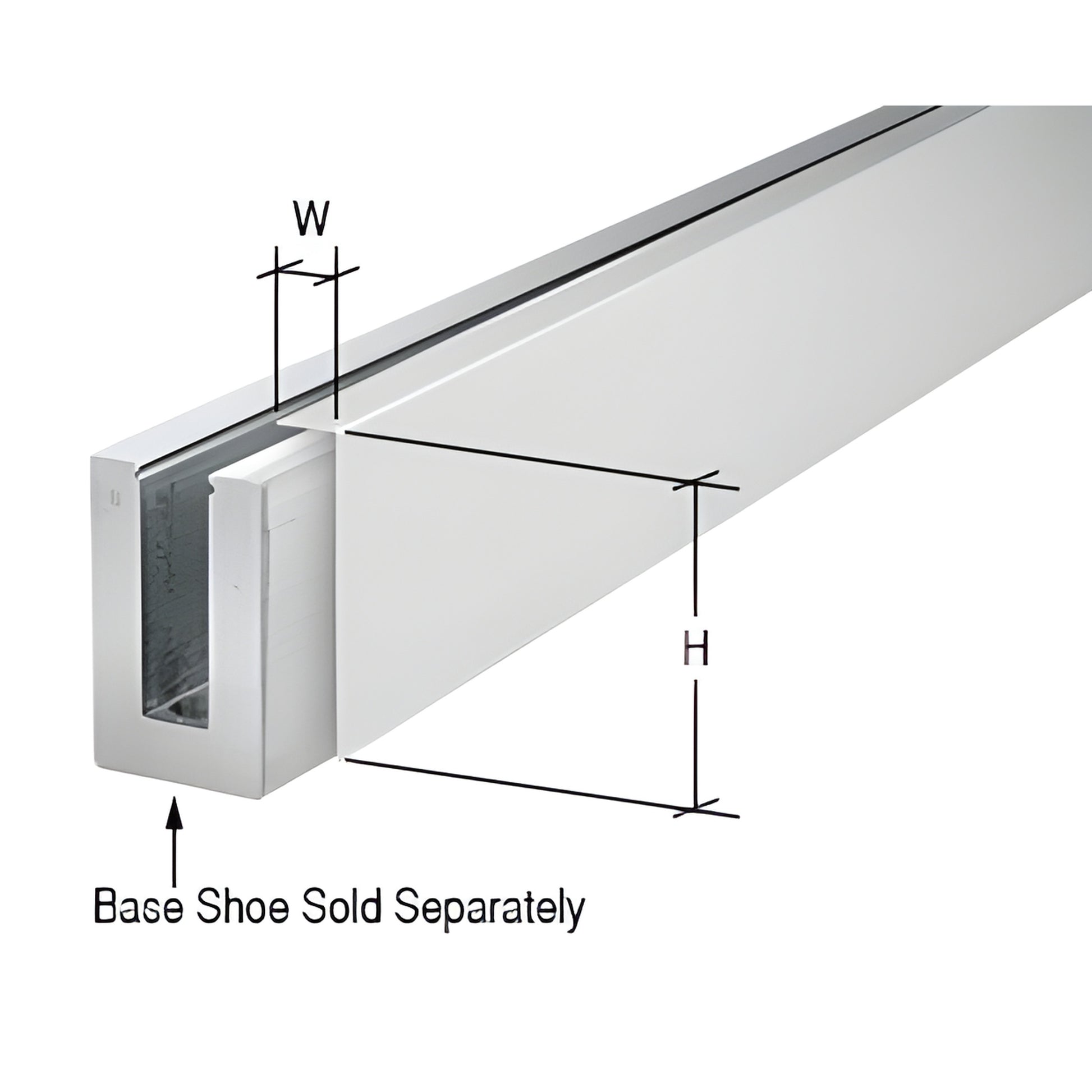

CRL cladding for 9BL56, L56S, 9BL68, L68S, 9BL21, L21S, and L25S series base shoes (SKU: LBSCSA10) — architectural-grade base shoe cladding offered in seven finishes to match storefronts, curtainwall, and glazing systems. Designed to attach to compatible base shoes using AT234 cladding tape or 33SC silicone sealant.
NOTE: Sold individually. Two pieces are required to cover both sides of a base shoe.
W: 7/8" (22.2 mm)
H: 4-13/16" (122.2 mm)
Shipping weights are approximate. If exact weight is needed to determine shipping costs, contact CRL Customer Service before ordering. Product images represent the product or a close likeness; actual colors may vary with monitor settings.
