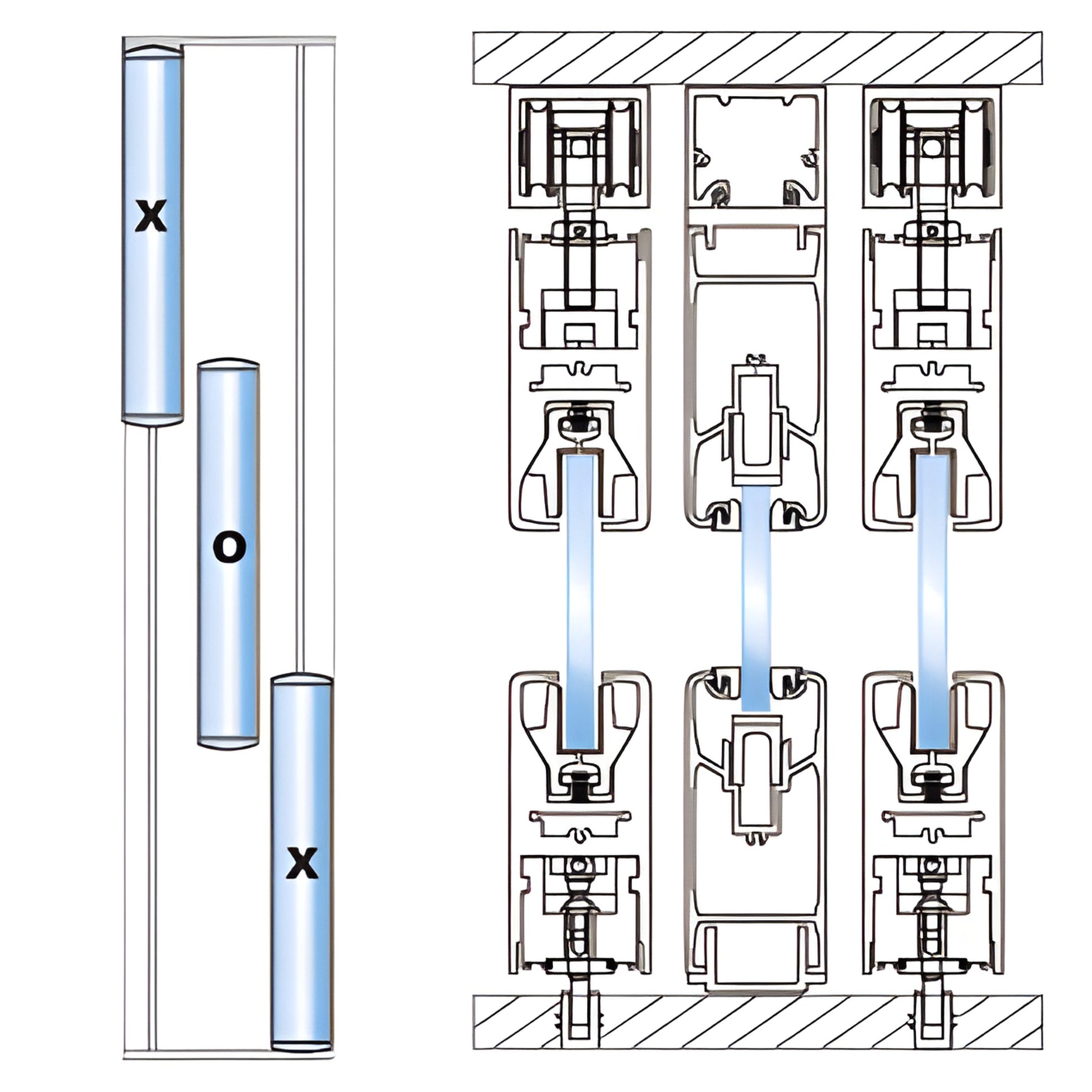

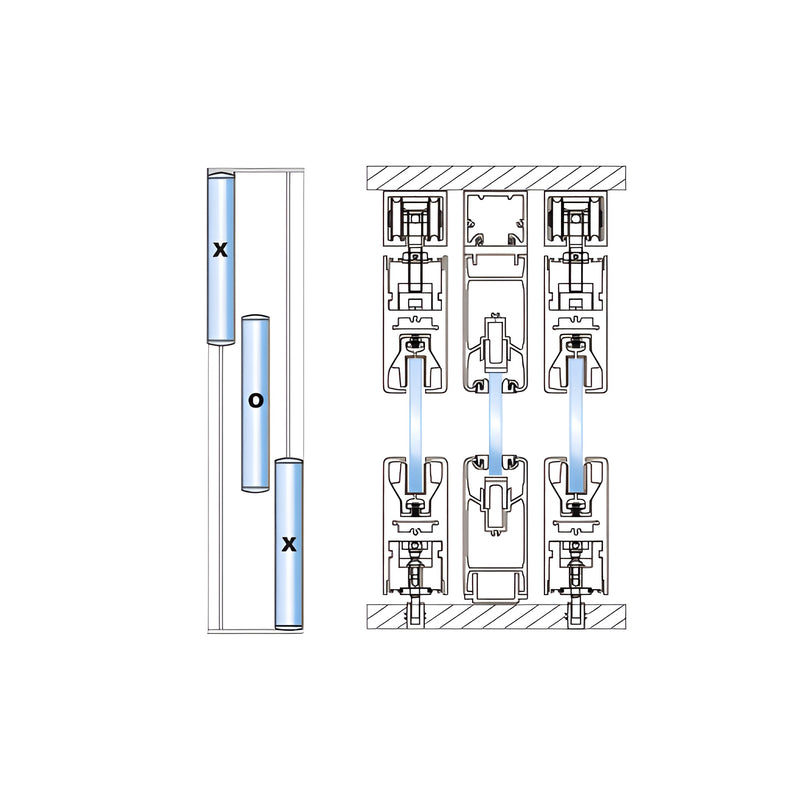

CRL 3-Panel XOX Bypass Double-Track Overhead Sliding Door System

• Silent moving four-roller carriage assemblies for smooth, low-noise operation
• Custom built in eight standard sliding configurations and eight standard bi-fold configurations
• For use with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available in six architectural finishes; custom finishes available on special order

The CRL Overhead Track Sliding and Bi-Fold Door Systems (SKU: 0TS203SA) are engineered for versatility—use as sliding doors, half-panel bi-folds, or full-panel bi-folds. The universal track and roller design delivers consistent sight lines and reliable performance across applications. Each unit is custom built to your opening size, glass thickness, and locking hardware preferences.

Our Cat. No. 0TCA top roller carriage assemblies provide easy height and alignment adjustment. The compact carriage profile lets the top track and door rail widths match for a clean visual. A pile weatherstrip fills the gap between track and rail; an optional recessed 0TBR Series guide channel is included for improved performance and added security.

CRL overhead track sliding door systems are available in eight standard sliding configurations. Each sliding panel is hung from two Cat. No. 0TCA carriage assemblies. Maximum panel weight: 225 lbs. (102 kg). Maximum panel width: 72" (1.83 m). Minimum panel width: 25" (635 mm). Standard with 4" (102 mm) square rails; alternative rail combinations (4", 6", or 10" / 102, 152, or 254 mm) are available by custom order. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales Department for additional information.

Why choose this system: Silent four-roller carriages, universal overhead track for sliding and bi-fold tempered glass doors, quick fabrication options, and multiple finish choices. Order SKU 0TS203SA or contact us to get a custom quote today.
