CRL Satin Anodized 34" Wide x 38" High Bullet Resistant Interior Window With Surround Sound and 12" Shelf With Deal Tray
Item# C01W3036A
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Code CompliancesUL 752
- Deal Tray Depth8-1/4 in. (209.6 mm)
- Deal Tray Height1-9/16 in. (39.7 mm)
- Deal Tray Width11 in. (279.4 mm)
- Finish/Color:Satin Anodized
- Finish - Shelf & Deal TrayBrushed Stainless Steel
- Frame Depth5 in. To 8-1/2 in. (127 mm To 216 mm)
- Frame Size34" (863.6mm) W x 38"(965.2mm) H
- Frame Width2-5/8 in. (66.7 mm)
- Glazing Type1-1/4" Acrylic
- IncludesN666 Speak-Thru
- MaterialAluminum
- Protection Level1
- Rough Opening Size30" (762mm) W x 36" (812.8mm) H
- Shelf Depth12 in. (304.8 mm)
- Shelf Thickness2 in. (50.8 mm)
- Shelf Width22-3/4 in. (577.9 mm)
- Surround Sound FeatureYes
- UsageInterior
- Window StyleFixed Single Lite
- Fits Walls from 5" to 8-1/2" (127 to 216 mm) Thick
- Assembled and Ready-to-Install
- Drawings and Specifications are Available Online

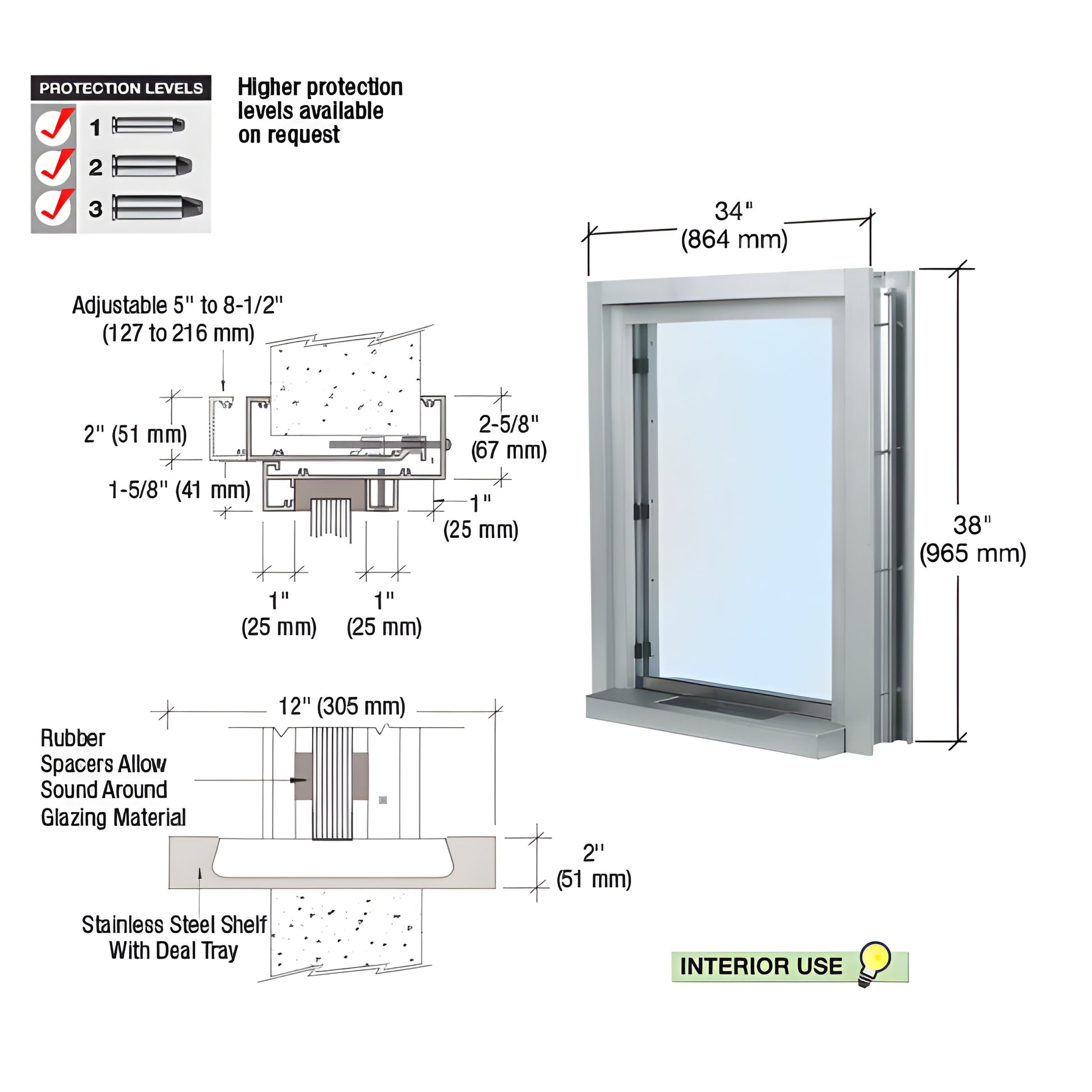

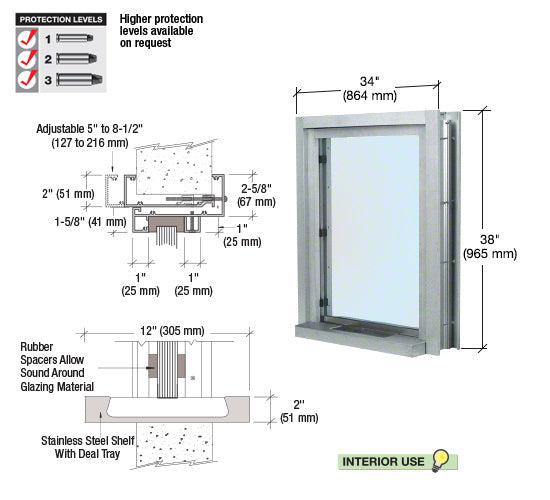

This CRL Clamp-On Frame Interior Window uses the Surround Sound Voice Transmission System for unobstructed viewing through the glazing material. Designed for installation in wall thicknesses from 5" to 8-1/2" (127 to 216 mm). Screws fastened through the interior side of the frame clamp the window securely in the opening. Supplied with a 12" (305 mm) deep Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray. Glazing is 1-1/4" (32 mm) thick bullet resistant acrylic rated for Level 1 protection. Two finishes are supplied in three stock sizes. Custom units are available.
SPECIFICATIONS:
Materials: Frame - .125" (3 mm) Thick Extruded 6063-T5 Aluminum Alloy; Glazing - 1-1/4" (32 mm) Level 1 Acrylic; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized or Bronze Anodized; Shelf - Brushed Stainless Steel #4 Finish
Speak-Thru: Surround Sound System
Deal Tray: Level 1 Protection
Instructions Included
Product Warning:
Intended for interior use only.
