CRL OXXO 4-Panel Satin Anodized Bi-Parting Double-Track Sliding Door

• Silent moving four-roller carriage assemblies for smooth, low-noise operation
• Custom built in eight standard sliding configurations and eight standard bi-fold configurations
• Compatible with 3/8" or 1/2" (10 or 12 mm) tempered glass panels
• Available in six architectural finishes; custom finishes on special order

The CRL overhead track sliding and bi-fold door systems (SKU: 0TS202SA) are engineered for commercial and residential openings that require durable tempered glass hardware. One universal track and roller design supports Sliding, Half Panel Bi-Fold, or Full Panel Bi-Fold layouts—each unit is custom built to your opening size, glass thickness, and locking hardware specifications.

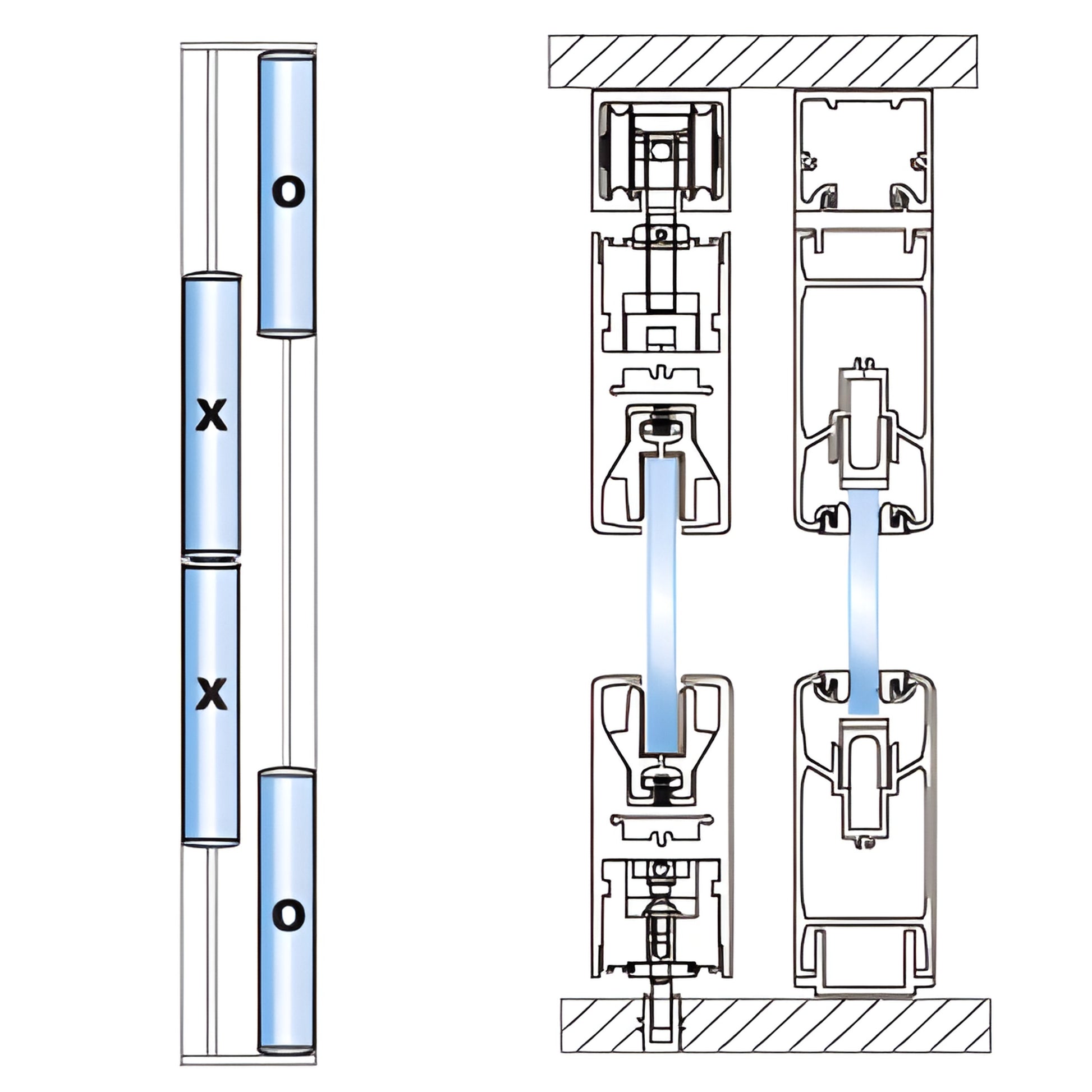

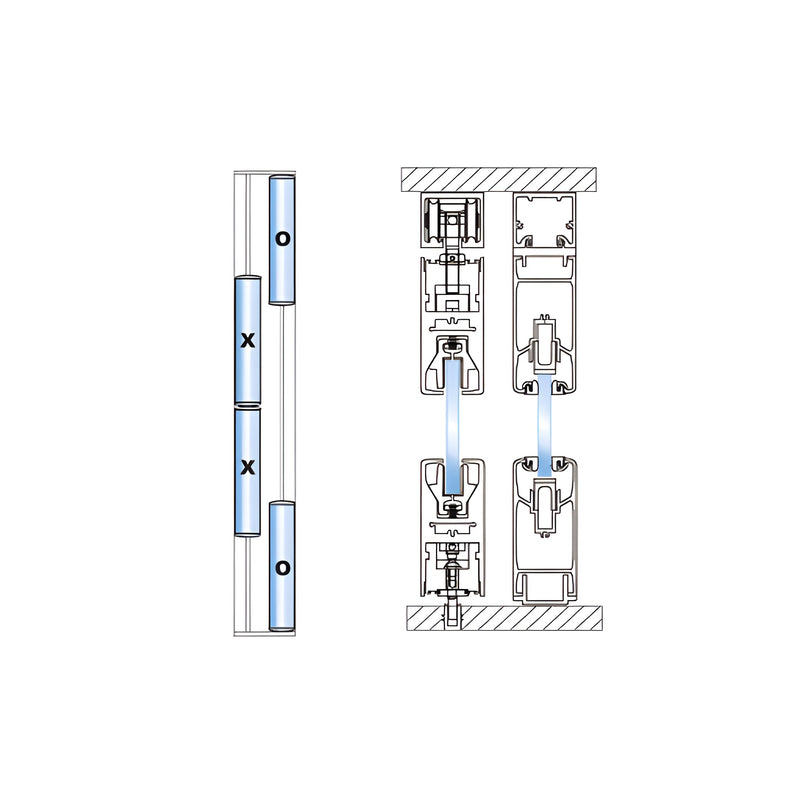

Each panel is hung from two Cat. No. 0TCA top roller carriage assemblies that adjust for both height and alignment. The compact carriage keeps the top track and door rail widths matched for an even sight line. A pile weatherstrip seals the gap between the top track and door rail, and an optional recessed 0TBR Series guide channel is included with each system for improved performance and added security.

Key specifications:

• Maximum panel weight: 225 lb (102 kg)
• Panel width: minimum 25" (635 mm), maximum 72" (1.83 m)
• Standard rail: 4" (102 mm) square; custom combinations available in 4", 6", or 10" (102, 152, 254 mm)
• Most orders fabricated in five business days at our Los Angeles, CA facility (custom orders available)

Most shipping weights are approximate. If exact weight is required for shipping cost calculation, contact CRL Customer Service prior to ordering. Product images represent the actual product or a close representation; colors may vary by monitor settings.

Choose CRL overhead track systems for a versatile, quiet, and secure sliding door solution for tempered glass installations. Contact CRL Technical Sales to get a quote or place a custom order.
