CRL Satin Anodized 40" Wide Bullet Resistant Exterior Window with Surround Sound, Speak-Thru and Shelf with Deal Tray
Item# C0EW3636A
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Code CompliancesUL 752
- Deal Tray Depth8-1/4 in. (209.6 mm)
- Deal Tray Height1-9/16 in. (39.7 mm)
- Deal Tray Width11 in. (279.4 mm)
- Finish/Color:Satin Anodized
- Finish - Shelf & Deal TrayBrushed Stainless Steel
- Frame Depth5 in. To 8-1/2 in. (127 mm To 216 mm)
- Frame Width2-5/8 in. (66.7 mm)
- GlazedYes
- Glazing Thickness1-1/4 in. (32 mm)
- Glazing TypeAcrylic
- Height38 in. (965.2 mm)
- IncludesN666 Speak-Thru
- MaterialAluminum
- Protection Level1
- Shelf Depth12 in. (304.8 mm)
- Shelf Thickness2 in. (50.8 mm)
- Shelf Width34-3/4 in. (882.7 mm)
- Surround Sound FeatureNo
- UsageInterior,Exterior
- Width40 in. (1016 mm)
- Window StyleFixed Single Lite
- Fits Walls from 5" to 8-1/2" (127 to 216 mm) Thick
- Assembled and Ready-to-Install
- Drawings and Specifications are Available Online

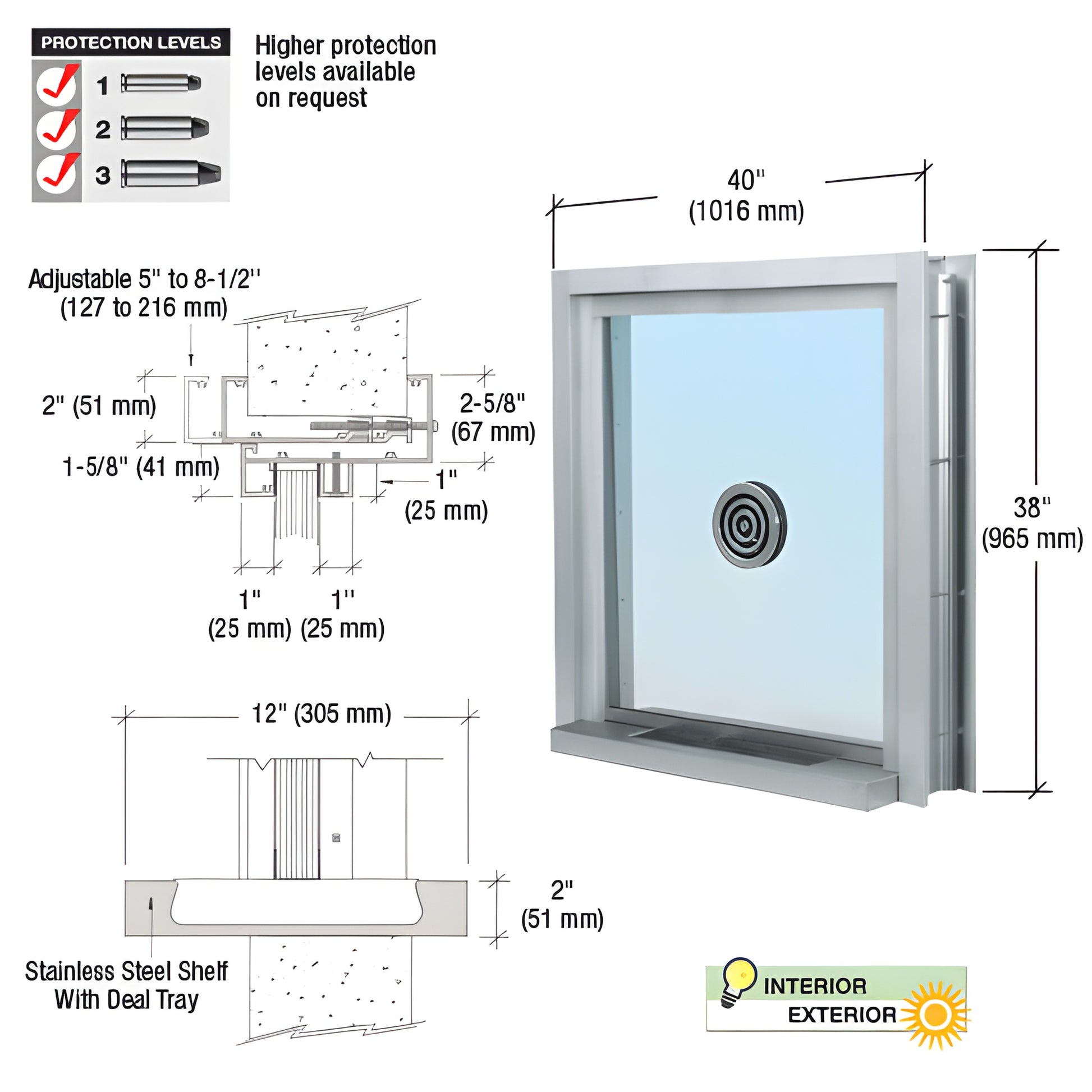

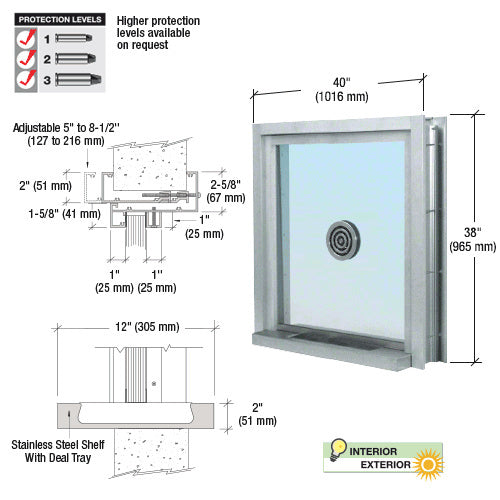

This CRL Bullet Resistant Exchange Window uses a Clamp-On Frame designed for installation into wall openings that are 5" to 8-1/2" (127 to 216 mm) thick. The window is secured in the opening by tightening the interior side of the frame to the unit. Each window comes complete with a 12" (305 mm) deep Stainless Steel Shelf with a Non-Ricochet Bullet Resistant Deal Tray. The 1-1/4" (32 mm) thick bullet resistant acrylic is rated for Level 1 protection. A Cat. No. N666 Speak-Thru is built into the acrylic, and offers Level 3 protection while allowing natural voice transmission. An overhang is recommended if used in an exterior application. Two finishes and two sizes are available in stock. Custom units are available.
SPECIFICATIONS:
Materials: Frame - .125" (3 mm) Thick Extruded 6063-T5 Aluminum Alloy; Glazing - 1-1/4" (32 mm) Level 1 Acrylic; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized or Duranodic Bronze; Shelf - Brushed Stainless Steel #4 Finish
Speak-Thru: N666 Level 3 Stainless Steel
Deal Tray: Level 1 Protection
Instructions Included
