CRL Roton 210HD 83" Satin Anodized Heavy-Duty Full-Surface Door Hinge
CRL Roton 210HD 83" Satin Anodized Heavy-Duty Full-Surface Door Hinge
Regular price
$646.47 CAD
Regular price
Sale price
$646.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 210HD83A
Shipping Weight: 10.55 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.55 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
26469SA
Series
Roton 210HD
Width
3-3/16 in. (81 mm)
Overview
- Specified everywhere for long service life
- Straight hole pattern
- Available in standard or heavy-duty models
- Standard duty: for doors up to 200 lbs (90 kg)
- Heavy-duty: for doors up to 600 lbs (272 kg)

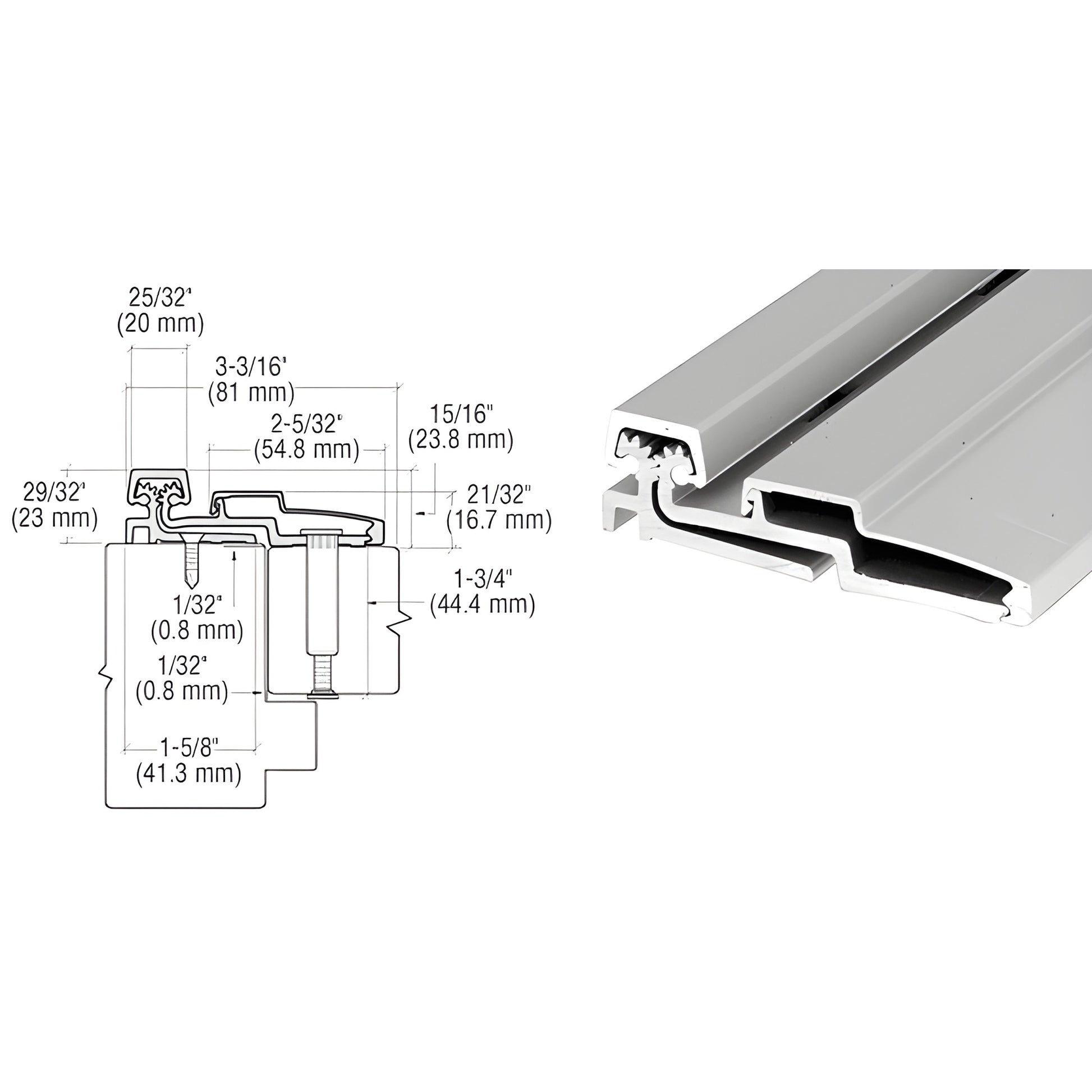

CRL Heavy-Duty Full Surface Roton Hinges (SKU: 210HD83A) are high-strength aluminum hinges featuring a full-length rolling gear profile that aligns doors precisely from top to bottom. These 83" heavy-duty Roton hinges include dual self-lubricating polyacetal load-bearing blocks for smooth, near-floating operation even on very heavy doors. All mounting hardware is hidden after installation for a clean, secure finish. Easy to install—each hinge ships with instructions and all required mounting hardware. Available finishes: clear satin anodized and dark bronze duranodic. Replacement screw packs available. Stocked lengths: 83" (2.10 m) and 95" (2.41 m).
Buy durable 83" heavy-duty full surface Roton hinges (SKU 210HD83A) for reliable alignment and smooth operation.
