CRL Roton 210HD 83" Dark Bronze Heavy-Duty Full-Surface Door Hinge
CRL Roton 210HD 83" Dark Bronze Heavy-Duty Full-Surface Door Hinge
Regular price
$786.44 CAD
Regular price
Sale price
$786.44 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 210HD83DU
Shipping Weight: 10.86 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.86 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
29815DU
Series
Roton 210HD
Width
3-3/16 in. (81 mm)
Overview
- Specified everywhere for long service life
- Straight hole pattern for consistent alignment
- Available in standard or heavy-duty models
- Standard duty: supports doors up to 200 lbs (90 kg)
- Heavy duty: supports doors up to 600 lbs (272 kg)

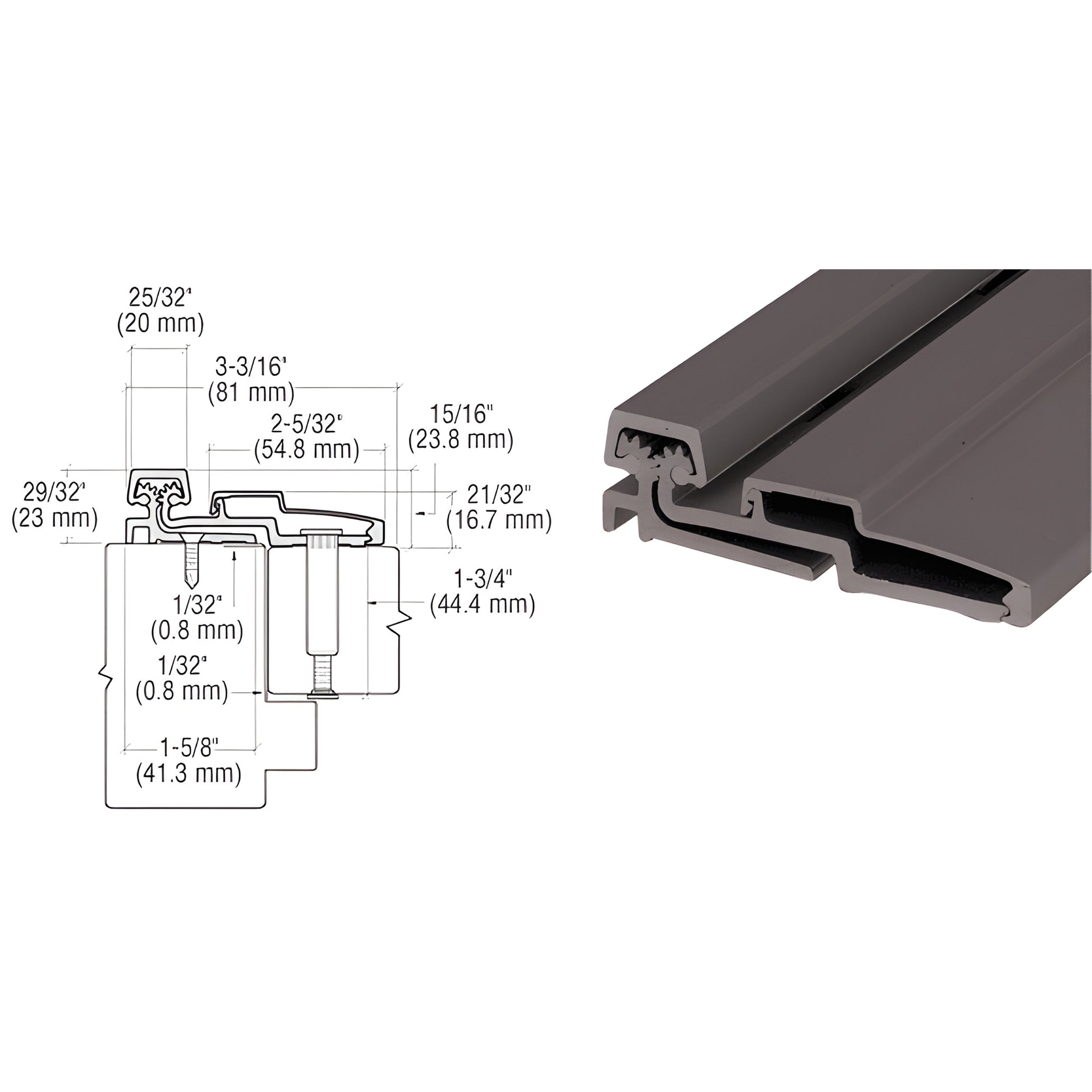

The CRL Heavy-Duty Full Surface Roton Hinges (SKU: 210HD83DU) are extruded from high-strength aluminum with a full-length rolling gear profile to maintain perfect top-to-bottom door alignment. These heavy-duty Roton hinges include double, self-lubricating polyacetal load-bearing blocks for smooth, near-floating operation on the heaviest doors. All mounting hardware is concealed after installation for a clean, secure look.
Features and differentiators:
- Twice the standard load-bearing blocks for extended life and reduced maintenance
- Concealed mounting hardware for tamper-resistant installation
- Easy to install—includes instructions and all required mounting hardware
- Available finishes: clear satin anodized and dark bronze duranodic
- Stocked lengths: 83" (2.10 m) and 95" (2.41 m)
- Replacement screw packs available
Order the CRL Heavy-Duty Full Surface Roton Hinge (210HD83DU) for reliable, long-lasting support on heavy doors—contact us or add to cart to get started.
Specifications
Templates
