CRL 36 in Satin Anodized Bullet-Resistant Window w/Speak-Thru & Tray
Item# S1EW3636A
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Code Compliances
UL 752
Deal Tray Included
Integral Deal Tray
Finish/Color
Satin Anodized
Frame Depth
4-7/8 in. (123.8 mm)
Glazed
Yes
Glazing Thickness
1-1/4 in. (32 mm)
Glazing Type
Acrylic
Height
36 in. (914.4 mm)
Includes
N666
Material
Aluminum
Protection Level
1
Shelf Depth
12 in. (304.8 mm)
Shelf Thickness
2 in. (50.8 mm)
Shelf Width
36 in. (914.4 mm)
Surround Sound Feature
No
Usage
Interior,Exterior
Width
36 in. (914.4 mm)
Window Style
Fixed Single Lite

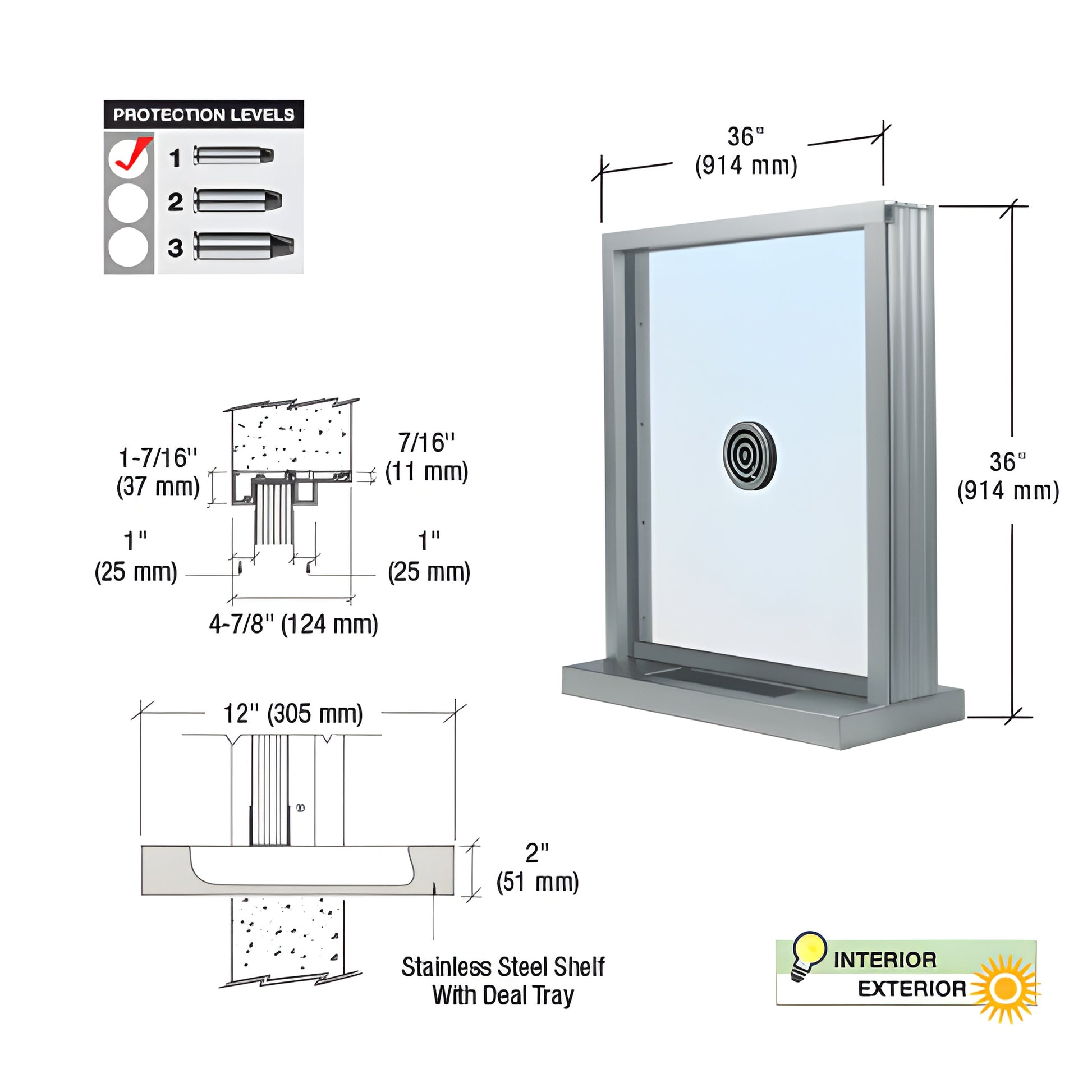

- Bullet resistant speak-thru window with stainless steel shelf and non-ricochet deal tray
- Fits walls at least 4-7/8" (124 mm) thick
- Level 1 bullet resistant glazing (1-1/4" / 32 mm)
- Assembled and ready-to-install — inset frame design for fast retrofit
This CRL Standard Inset Frame Exchange Window (SKU: S1EW3636A) is engineered for secure teller and transaction applications. The unit installs into openings for walls ≥ 4-7/8" (124 mm) thick and is fastened with screws through the perimeter frame. It includes a 12" (305 mm) deep stainless steel shelf with an integrated non-ricochet, bullet resistant deal tray for safe document/cash exchange. Glazing is 1-1/4" (32 mm) acrylic rated Level 1 protection; the included Cat. No. N666 Level 3 stainless steel speak-thru enables natural voice transmission. For exterior installations, an overhang or awning is recommended. Two frame finishes and two stocked sizes available.
SPECIFICATIONS:
Materials: Frame - .125" (3.2 mm) extruded 6063-T5 aluminum alloy; Glazing - 1-1/4" (32 mm) Level 1 acrylic; Shelf - stainless steel.
Finishes: Frame - Satin Anodized or Bronze Anodized; Shelf - Brushed Stainless Steel #4 finish, 16 gauge.
Speak-Thru: N666 Level 3 stainless steel.
Deal Tray: Built-in, non-ricochet, Level 1 protection.
Instructions included.
Most shipping weights are approximate. If you require exact weight or shipping cost prior to ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor.
Reliable bullet resistant exchange window with speak-thru and stainless steel deal tray — order SKU S1EW3636A today.
