• CRL SKU 0TS1SA single-track overhead sliding glass door system, satin anodized aluminum track with flush bottom threshold
1 1

CRL

CRL Satin Anodized Overhead Sliding Door Track Kit

CRL Satin Anodized Overhead Sliding Door Track Kit

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0TS1SA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single Track 1 Panel Slide
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Width
72 in. (1829 mm)
Series
OT Overhead Track Slider

Overview

  • Four-roller carriage assemblies for smooth, silent door movement
  • Flush bottom surface for a clean, low-profile threshold
  • Available in multiple configurations and architectural finishes

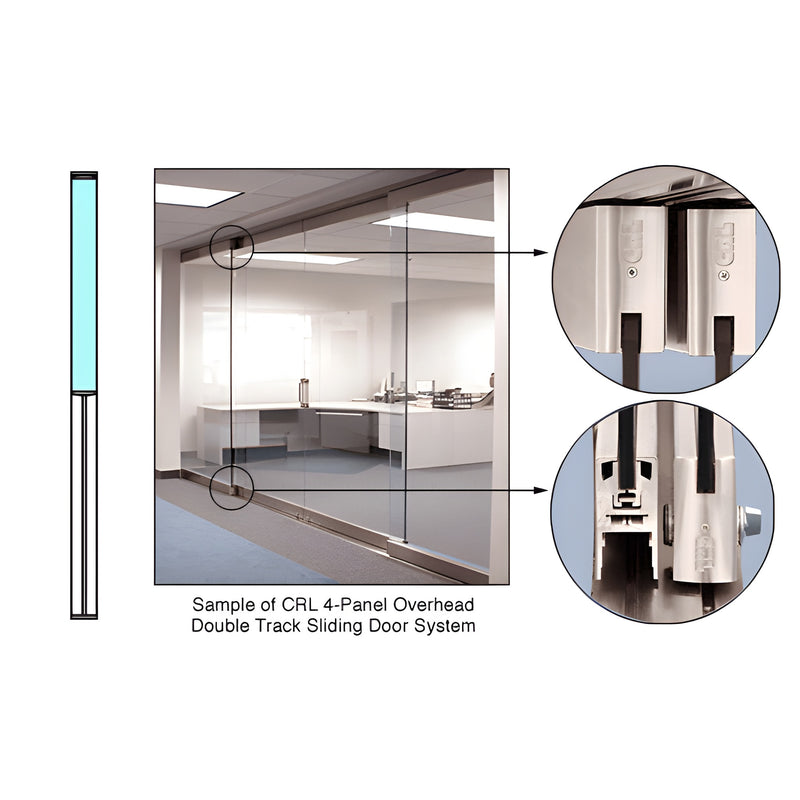

CRL Overhead Track Sliding Door Systems (SKU: 0TS1SA) are offered in four standard configurations. Each sliding panel is suspended from two Cat. No. 0TCA carriage assemblies. Maximum panel weight: 225 lbs. (102 kg). Maximum panel width: 72" (1.83 m). Minimum panel width: 25" (635 mm). These systems are ideal for commercial and residential applications requiring a low-profile flush-bottom sliding door with quiet operation and customizable architectural finishes.

NOTE: This product is available by custom order only. Most orders can be fabricated within five business days at our Los Angeles, California manufacturing facility. For configuration, finish options, or technical assistance, contact our Technical Sales Department.

Most shipping weights are approximate and have not been verified. If you need an exact shipping weight to determine shipping costs before ordering, please request this information from CRL Customer Service. Product images show the actual product or a close representation; colors may vary based on your monitor settings.

Need help selecting the right overhead track sliding door system or finish? Contact us to get a quote and technical support.
