CRL Roton 112HD Satin Anodized Heavy-Duty Concealed Continuous Hinge
CRL Roton 112HD Satin Anodized Heavy-Duty Concealed Continuous Hinge
Regular price
$428.57 CAD
Regular price
Sale price
$428.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 112HD83A
Shipping Weight: 7.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
61362SA
Series
Roton 112HD
Width
25/32 in. (19.8 mm)
Overview

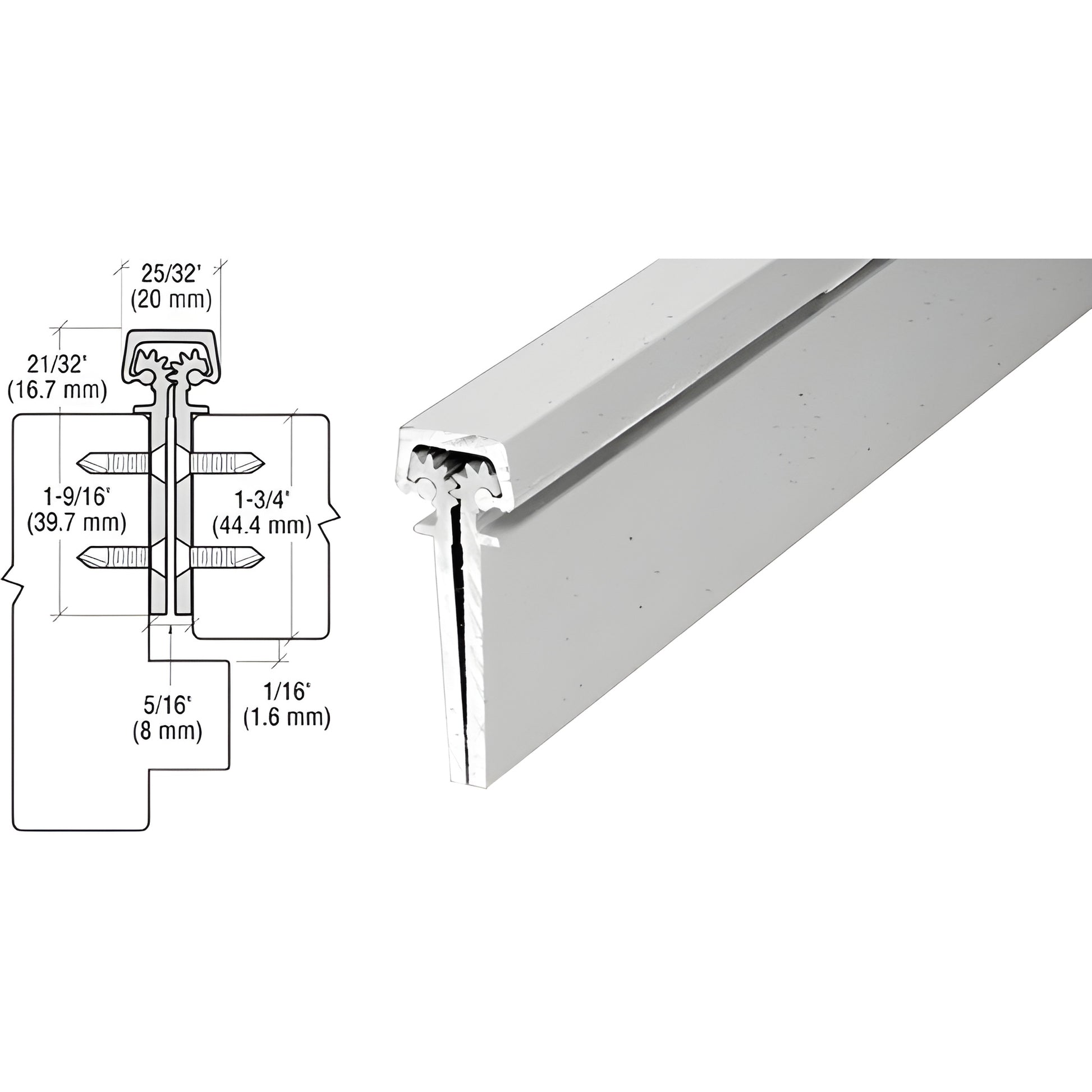

- Heavy-duty concealed leaf continuous hinge for 1-3/8" (35 mm) doors — supports doors up to 600 lbs (272 kg) (Heavy-Duty model)
- Straight hole pattern for fast, precise installation
- Available in satin anodized and dark bronze anodized finishes
- Stocked in 83" (2.1 m) lengths; installation screws included (replacement screw packs sold separately)
These CRL Roton Concealed Leaf Continuous Hinges (SKU: 112HD83A) feature load-bearing blocks spaced every 5-1/8" (130 mm) on the Standard Duty hinge and every 2-9/16" (65 mm) on the Heavy-Duty hinge for even weight distribution and long-lasting performance. Ideal as an 83-inch continuous hinge for heavy doors, they provide smooth, concealed operation and a clean aesthetic for commercial and residential 1-3/8" door installations.
Order SKU 112HD83A now to get an 83" heavy-duty concealed continuous hinge engineered for high-load 1-3/8" doors.
