CRL Roton 112HD Dark Bronze Anodized Concealed Continuous Hinge
CRL Roton 112HD Dark Bronze Anodized Concealed Continuous Hinge
Regular price
$445.89 CAD
Regular price
Sale price
$445.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 112HD83DU
Shipping Weight: 7.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
61815DU
Series
Roton 112HD
Width
25/32 in. (19.8 mm)
Overview

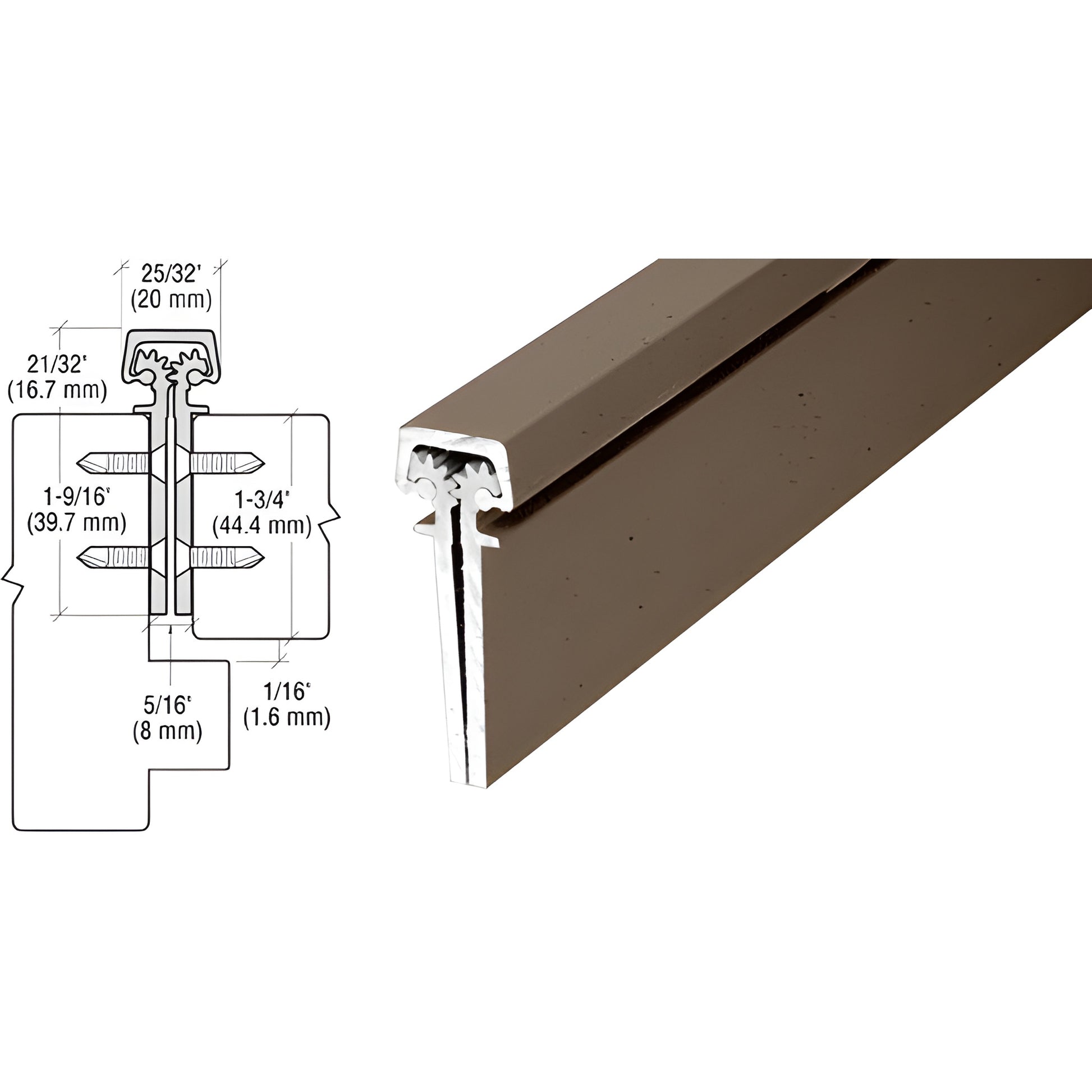

- Concealed leaf continuous hinge for 1-3/8" (35 mm) doors — SKU: 112HD83DU
- Straight hole mounting pattern for quick installation
- Standard Duty: load-bearing blocks every 5-1/8" (130 mm) — supports doors up to 200 lbs (90 kg)
- Heavy Duty: load-bearing blocks every 2-9/16" (65 mm) — supports doors up to 600 lbs (272 kg)
- Stocked in 83" (2.1 m) lengths
- Finishes: satin anodized and dark bronze anodized
- Includes a pack of installation screws; replacement screw packs sold separately
These CRL Roton Concealed Leaf Continuous Hinges are designed for heavy-duty commercial and residential doors, providing concealed support and smooth operation for 1-3/8" (35 mm) door applications. The closer spacing of load-bearing blocks on the heavy-duty model delivers superior durability for high-traffic or heavyweight door installations. Available in satin anodized and dark bronze anodized finishes and stocked in 83" (2.1 m) lengths for on-site cutting or continuous run installation.
Order SKU 112HD83DU today to get a concealed continuous hinge engineered for heavy-duty doors.
