CRL Satin Anodized Vertical Weatherstile Kit - 3/4" Glass Door Seal

• Kit for 3/4" (19 mm) glass doors
• Designed for monolithic tempered glass
• Reduces drafts and protects the glass edge while preserving an all‑glass appearance
• Compatible only with CRL DRS Wedge-Lock® door rails for single or double door applications
• Available in five cladded architectural finishes

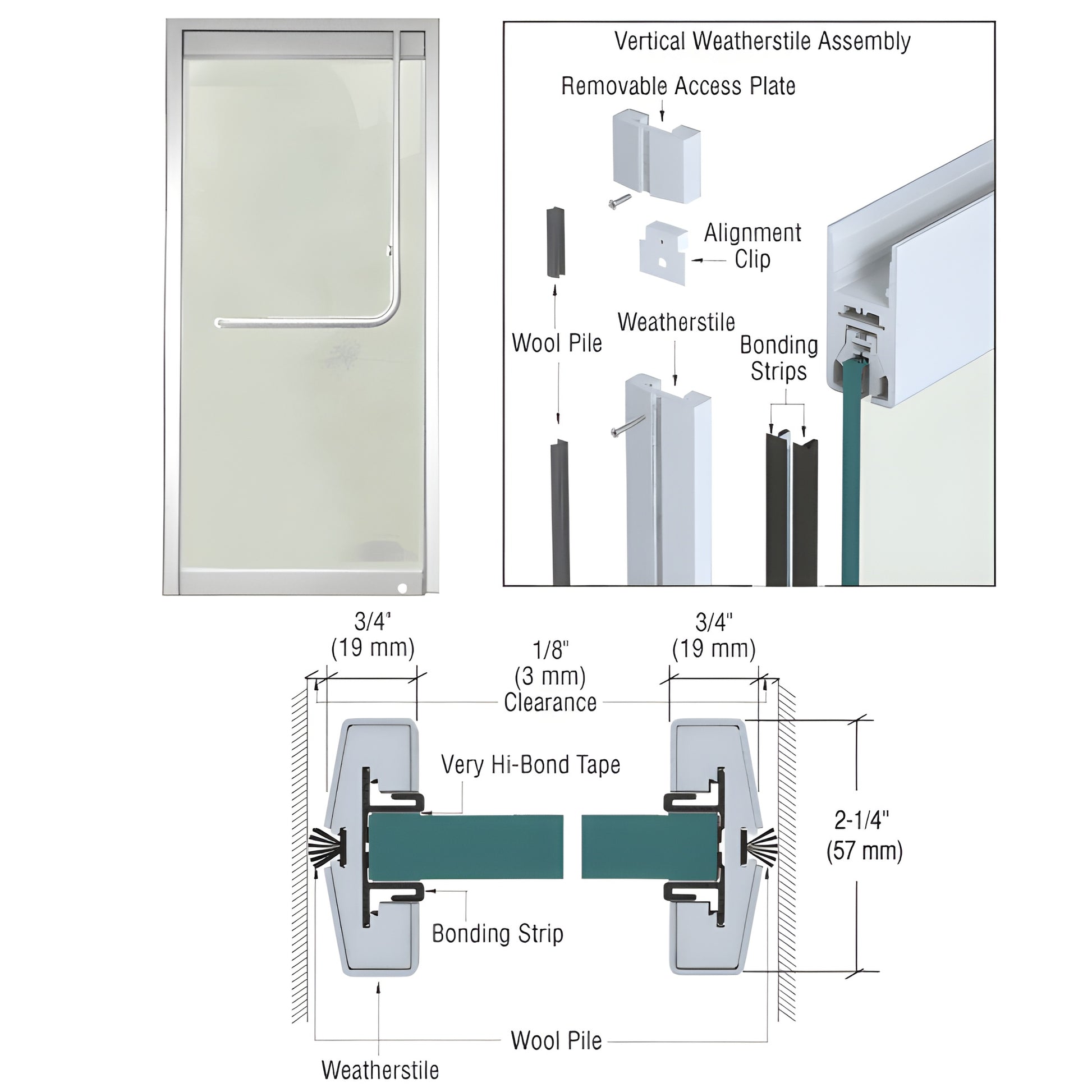

CRL Vertical Weatherstile Kits include two 117" (2.97 m) lengths of weatherstile with wool pile weatherstrip, one 120" (3.05 m) black EPDM filler strip (for double doors), four 117" (2.97 m) bonding strips with Very Hi‑Bond Tape, four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and clear installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.

CRL Vertical Weatherstile Kits have been redesigned for newly fabricated single or double doors using either 1/2" (12 mm) or 3/4" (19 mm) tempered glass. These narrow vertical weatherstiles reduce drafts and protect the glass edge with minimal disruption to the all‑glass aesthetic—an ideal solution for commercial storefronts and office entrances seeking a low‑profile glass door weathersealing solution.

Installation uses internal bonding strips secured to the glass with Very Hi‑Bond Tape for a fast, accurate, mechanically stable fit—no wait time for traditional adhesive to set. This makes the kit a reliable option when installing new doors equipped with CRL DRS Wedge-Lock® rails.

NOTE: CRL Vertical Weatherstiles are intended only for newly fabricated doors to be installed into new or existing openings. They are not compatible with existing doors that already have pre-installed door rails.

SKU: W34SAS — order this 3/4" glass door weatherstile kit or contact CRL Customer Service for exact shipping weight, custom lengths, or finish matching.
