CRL Satin Brass 120" Cladding for B5S Series Standard Square Aluminum Base Shoe
Item# BSCSB10
Shipping Weight: 5
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Finish/Color:Satin Brass
- Height4-3/16 in. (106.4 mm)
- Length120 in. (3048 mm)
- MaterialBrass
- Thickness.045 in. (1.14 mm)
- Width13/16 in. (20.6 mm)
- Adhere with Cladding Tape or Silicone Sealant
- Available in Eight Architectural Finishes
- Custom Cutting and Mitering Service Available
- Use Monolithic Tempered Glass
CRL Cladding allows the user to match any of six architectural finishes offered in Cap Railing. It can be secured to the Base Shoe using Cladding Tape or Silicone Sealant. CRL Cladding Tape and Silicone Sealant come with attachment instructions.
NOTE: Sold by individual pieces. Base Shoe requires two pieces for coverage on both sides.

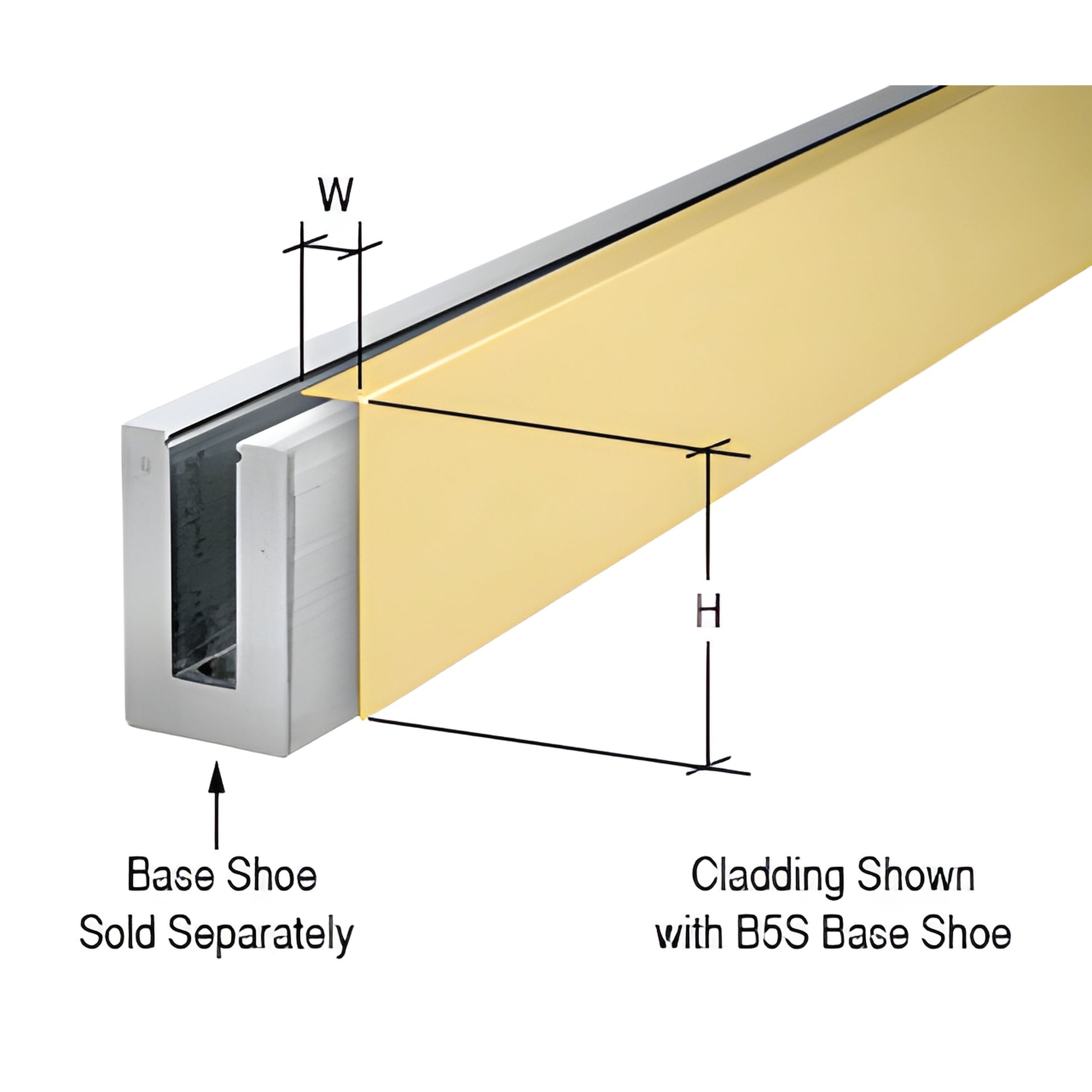

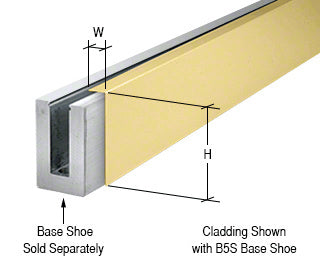

W: 7/8" (22.2 mm)
H: 4-3/16" (106.4 mm)
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
