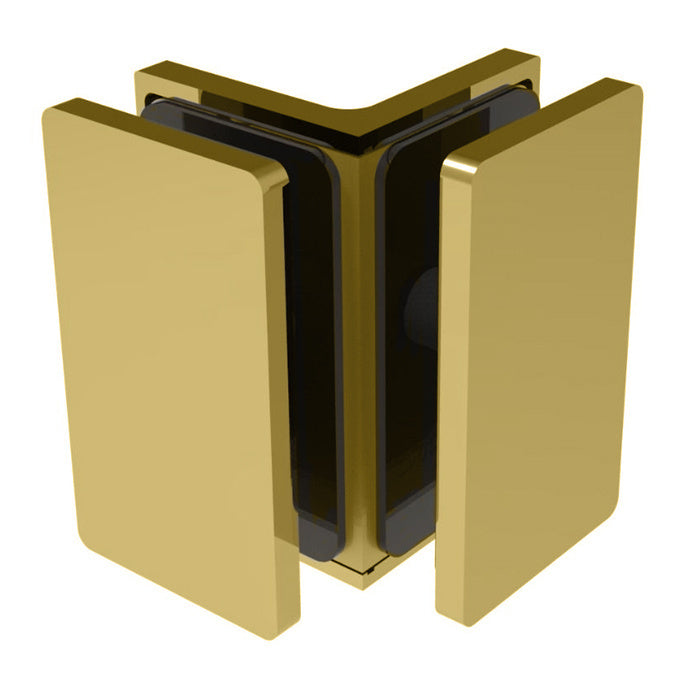

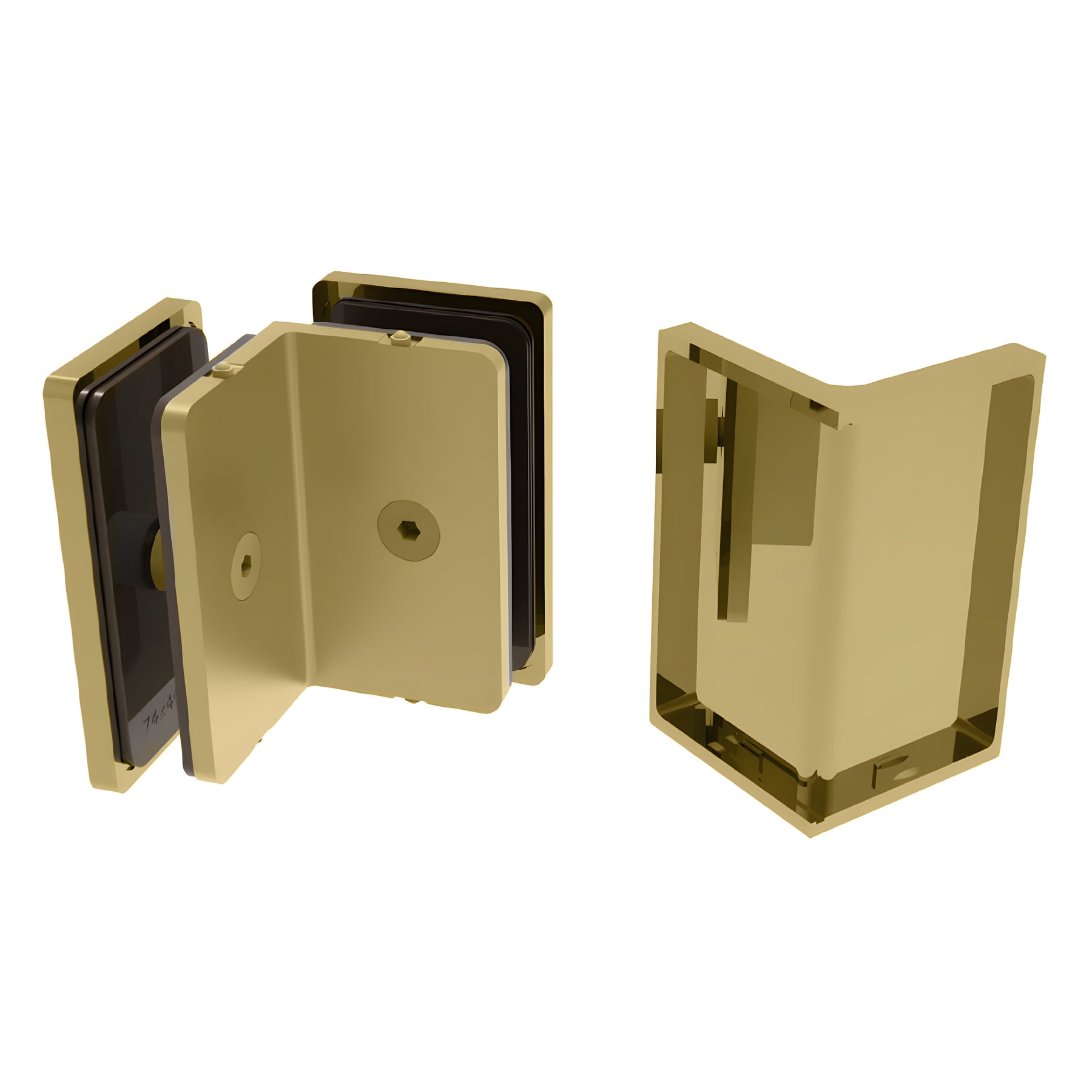

CRL Satin Brass Como Series Glass-to-Glass Bracket
Item# C0M090SB
Shipping Weight: 1.345
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.345
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Design StyleConcealed/Premium
- Enclosure TypeCorner, Niche, Bathtub, Tailor Made Solutions
- Finish/Color:Satin Brass
- Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
- Height3-1/8 in. (79 mm)
- Leg Length1-7/8 in. (47.6 mm)
- Length1-7/8 in. (48 mm)
- MaterialBrass
- Mounting TypeGlass To Glass
- Opening StyleSwing(side)
- SeriesComo
- Width - Sidelite Portion1-7/8
- Use Monolithic Tempered Glass
- Works with 5/16" to 3/8" (8 to 10 mm) glass
- Snap-on Covers Conceal Screws

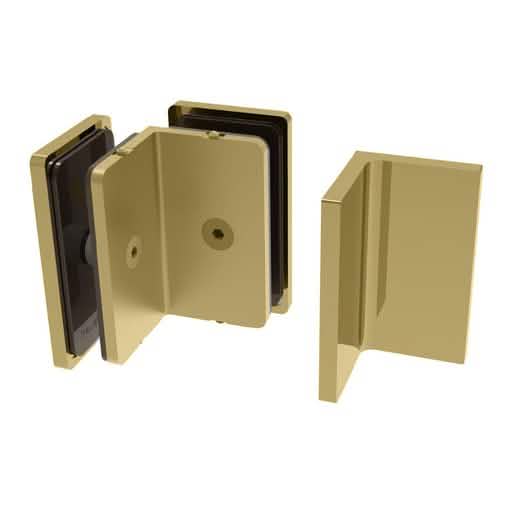

The COMO Series 90 Degree Glass-to-Glass Brackets are designed for 5/16" to 3/8" (8 to 10 mm) glass projects. The two mounting screws per panel matches the configuration of many of our most popular hinge series. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
