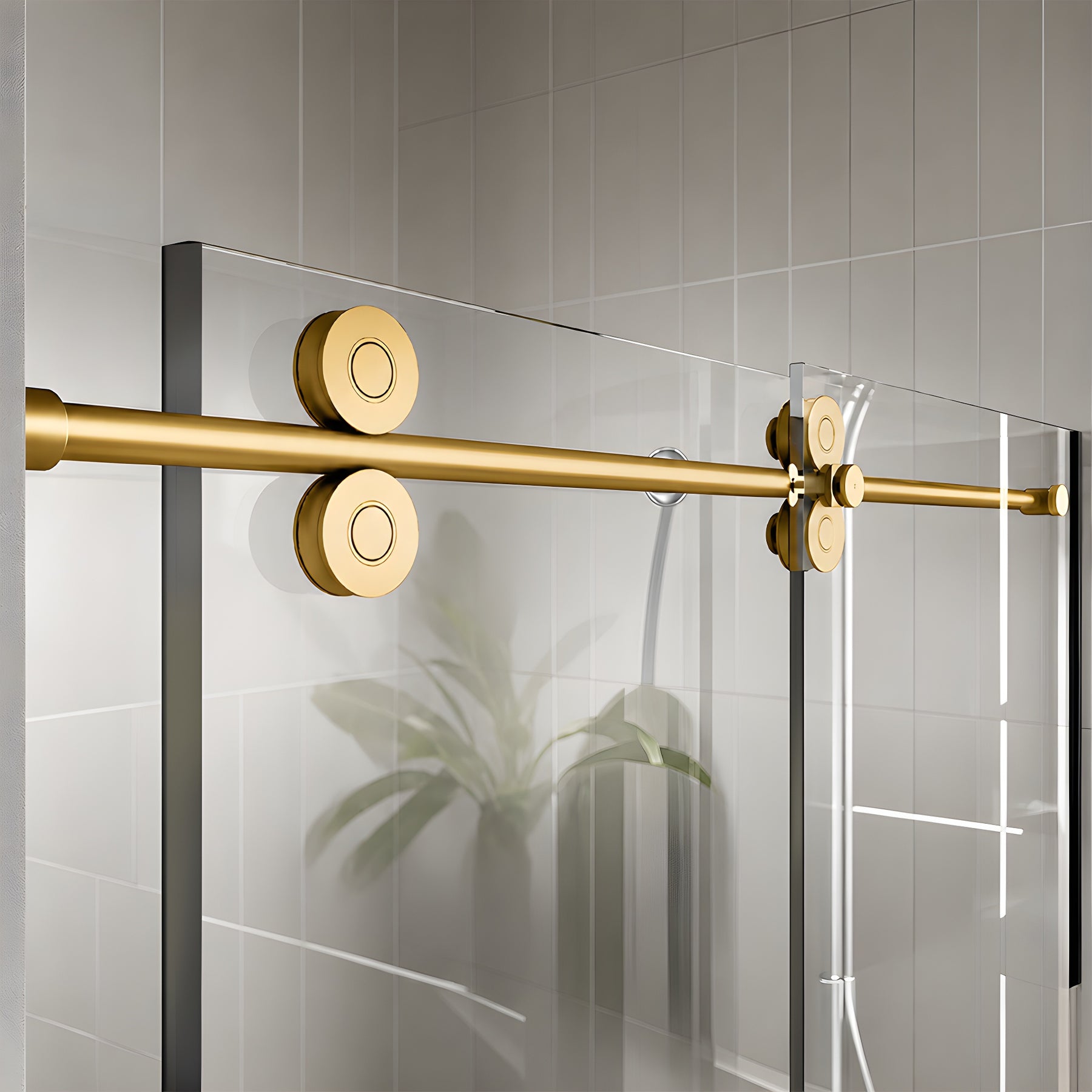

CRL Crescent Series 180° Sliding Door System Complete Satin Brass Kit

• System Features: One sliding door and one fixed panel
• Quality roller bearings assure quiet, smooth door movement
• Circular header and round rollers for symmetrical, modern aesthetics
• Available finishes: Polished Stainless, Brushed Stainless, Matte Black, Brushed Bronze
• Handle or knob for door glass ordered separately
• Glass clamps or U-channel for fixed panel ordered separately
• Accommodates 1/2" or 3/8" (12 or 10 mm) thick tempered safety glass (not included)

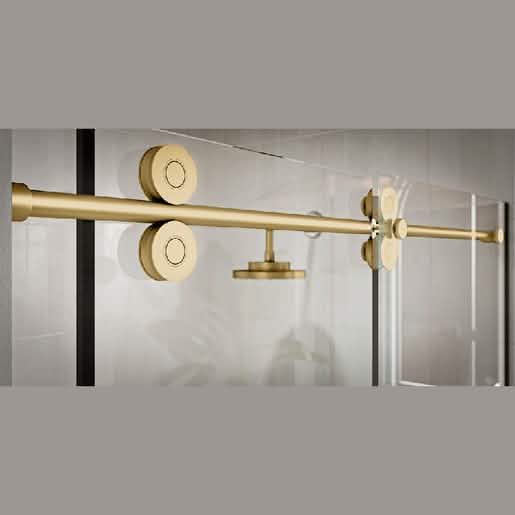

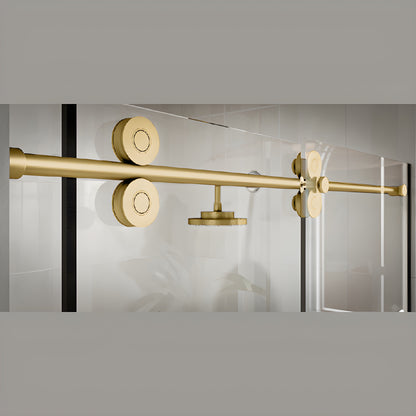

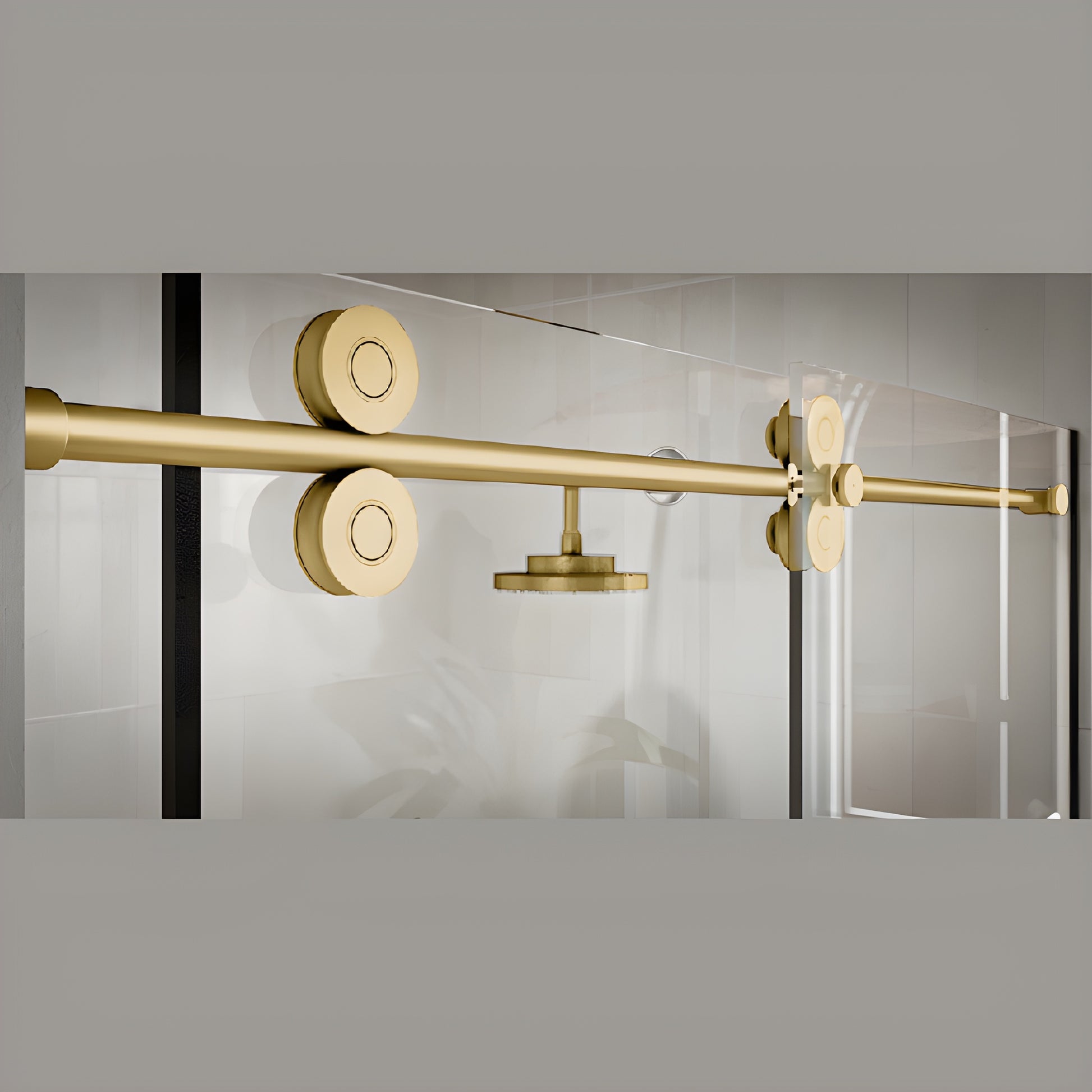

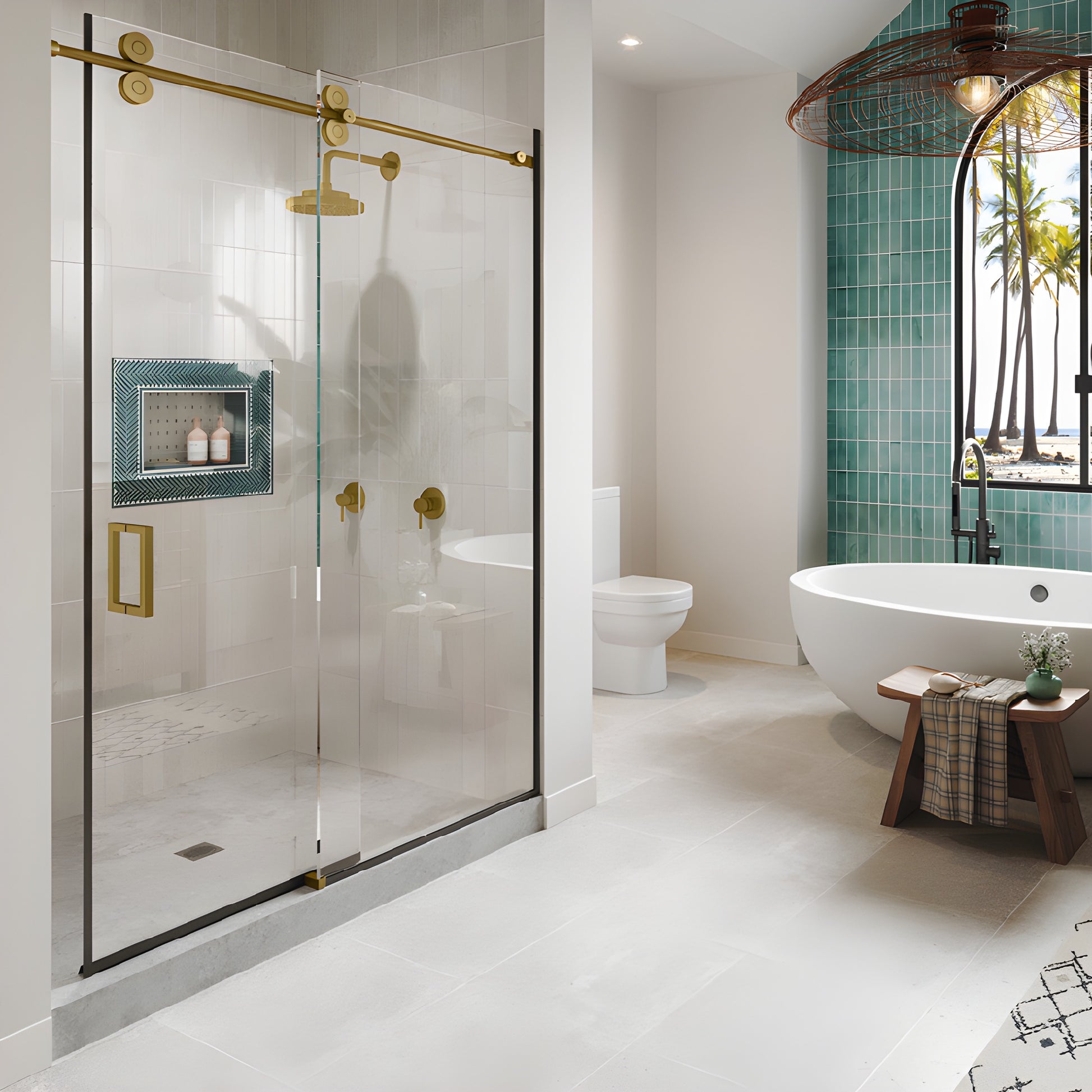

The circular header and round rollers of the Crescent Series Sliding Door System (SKU: CRE78SB) provide a cohesive, contemporary look ideal for frameless sliding shower door installations. Minimal hardware maximizes visible glass for a clean, modern appearance. Durable roller bearings ensure quiet operation and effortless sliding. The system accepts 1/2" or 3/8" (12 or 10 mm) tempered safety glass (not included) and supports reversible installation of the fixed and sliding panels. Choose from polished stainless steel, brushed stainless steel, brushed bronze, or the popular matte black finish for a custom aesthetic.

Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary with monitor settings.

Create a custom look with our black seals and black edge moldings sold separately. (View Here)

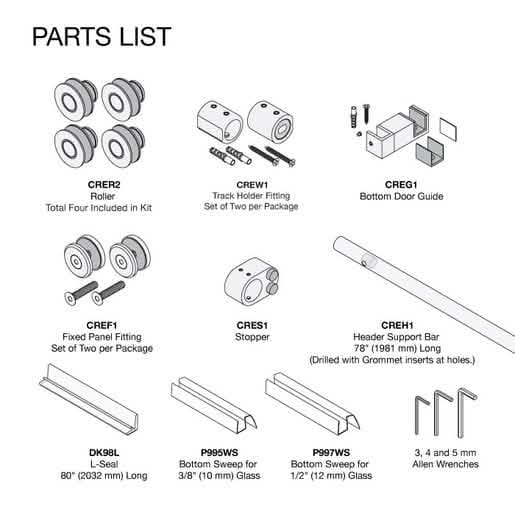

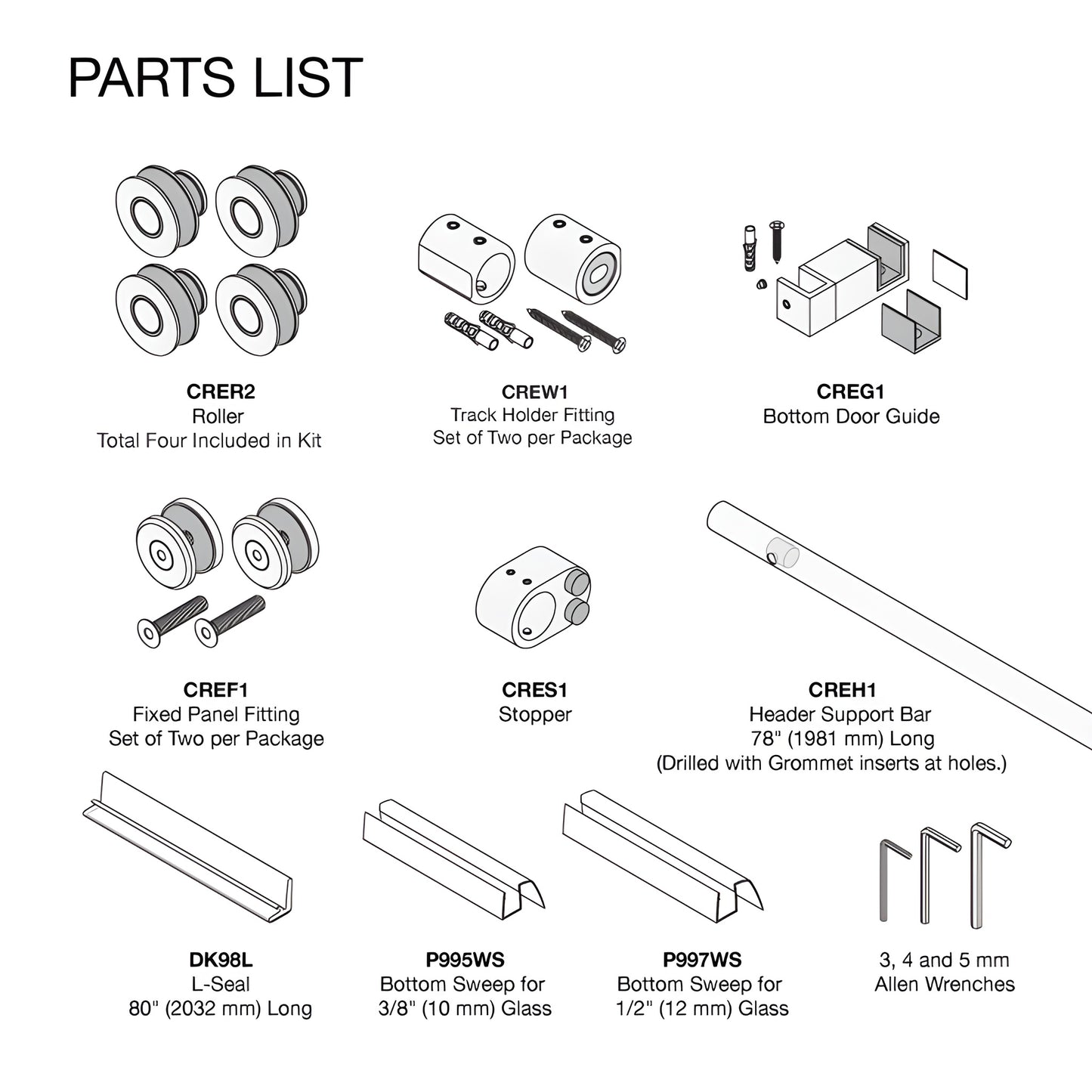

STANDARD 180 DEGREE KIT INCLUDES:

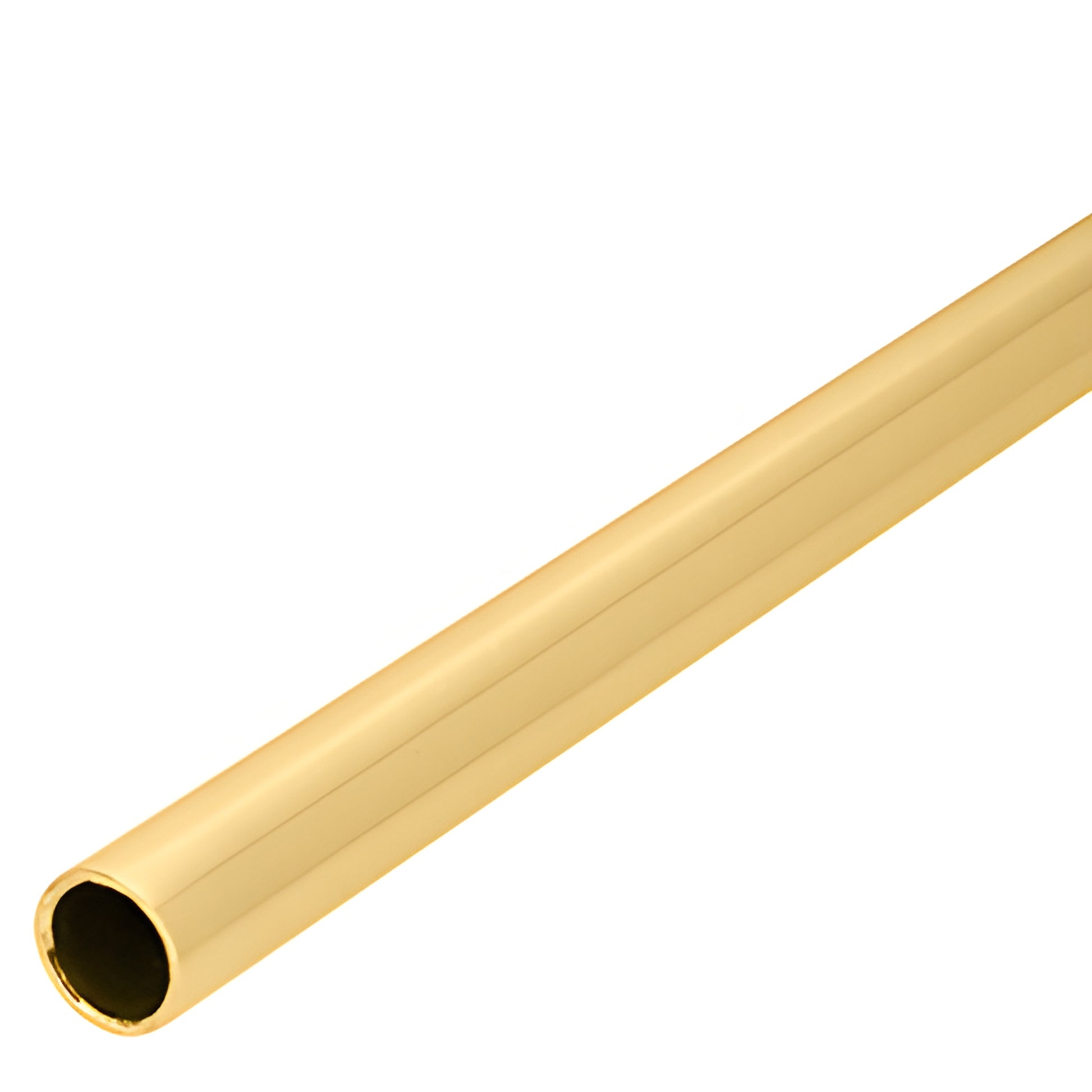

• One - 78" (1981 mm) length header bar

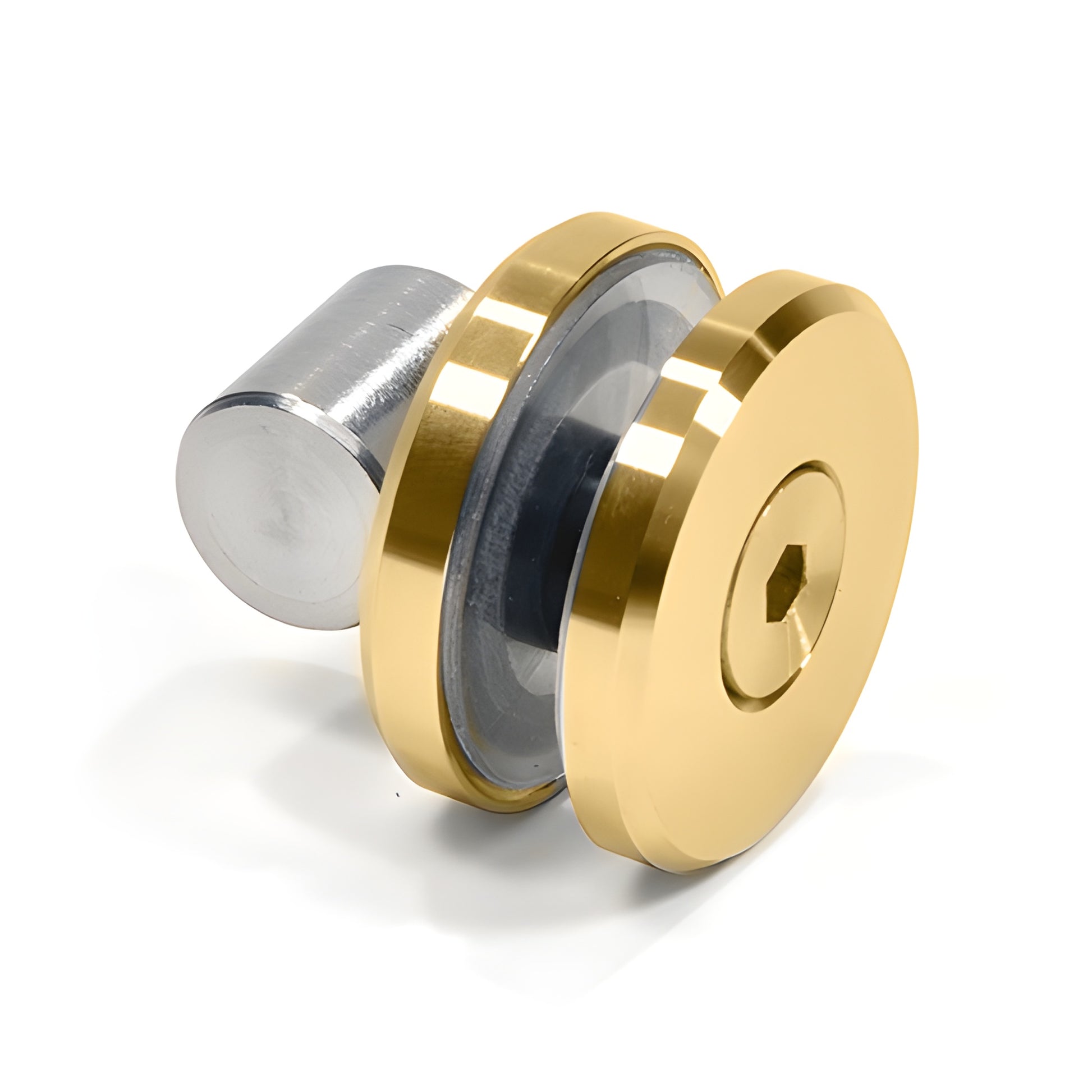

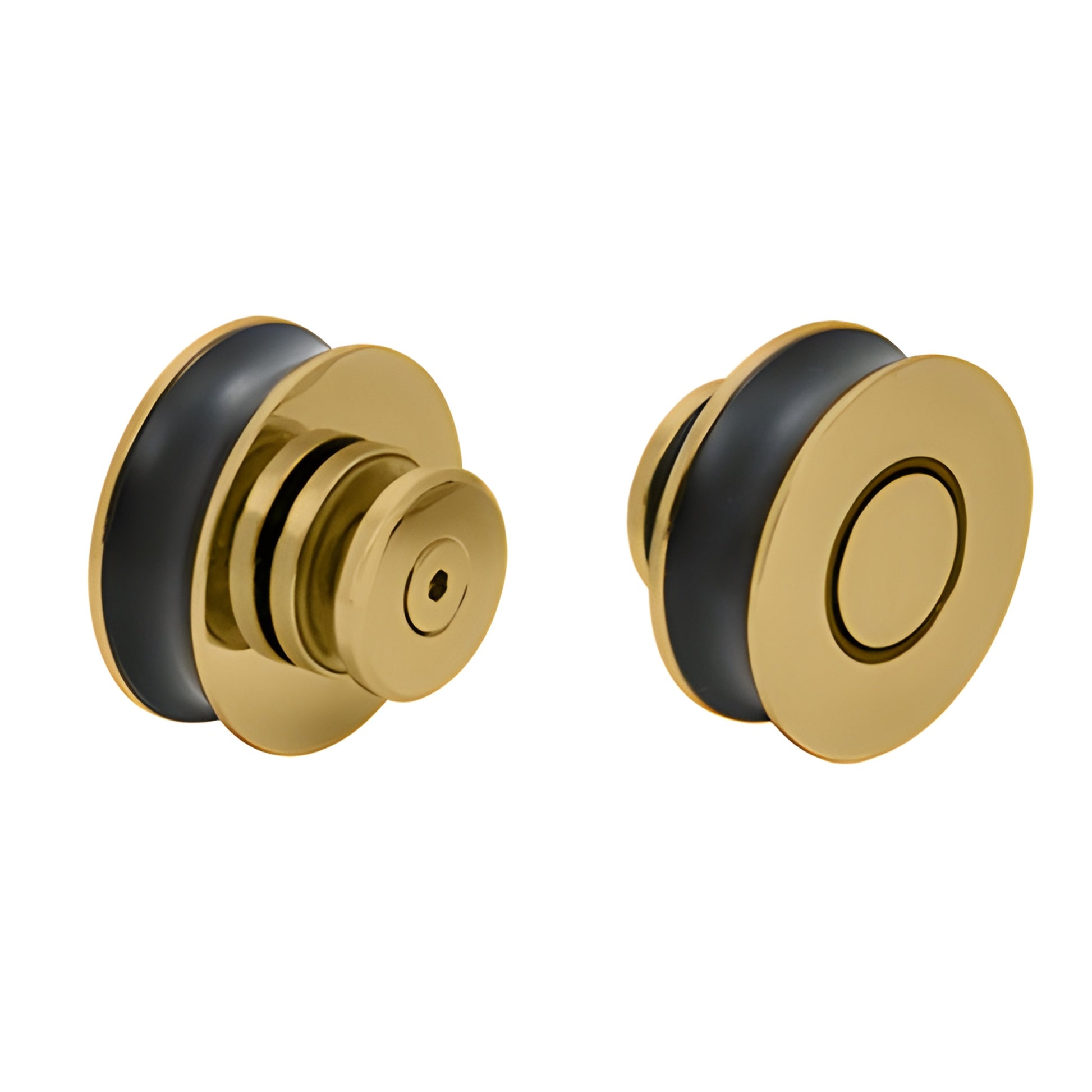

• Four - Rollers

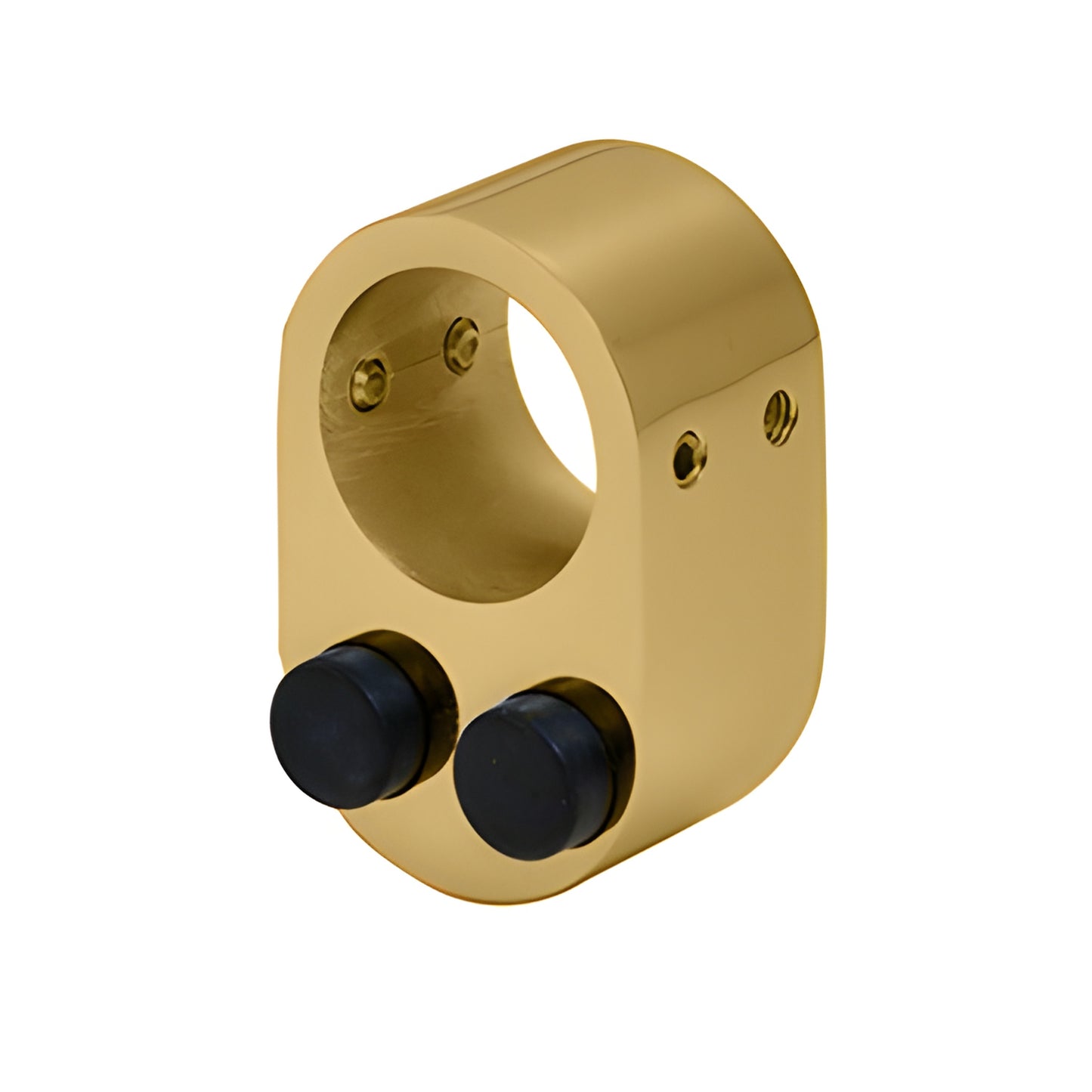

• One - Stopper

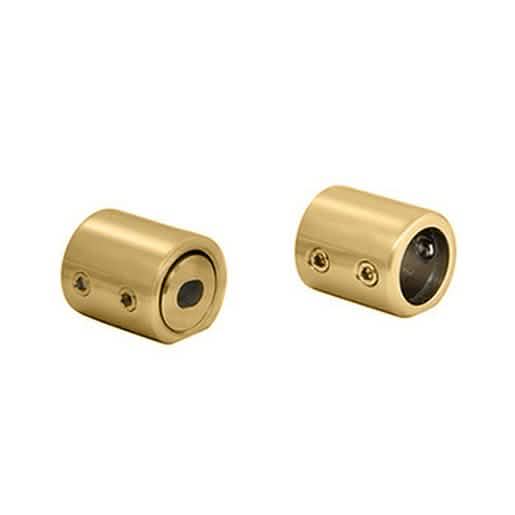

• Two - Wall mount fittings
• Two - Track holder fittings for fixed panel

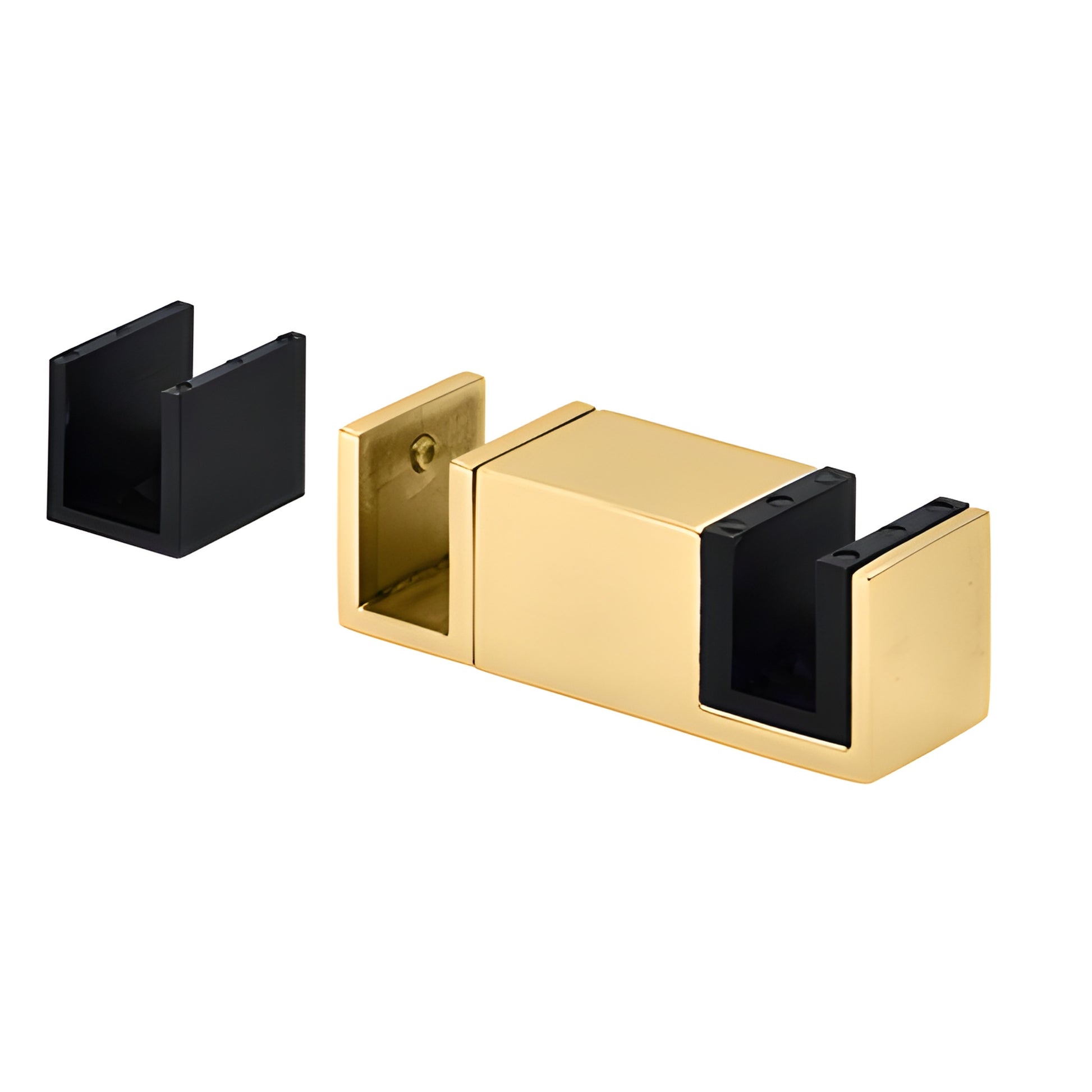

• One - Bottom guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) glass)

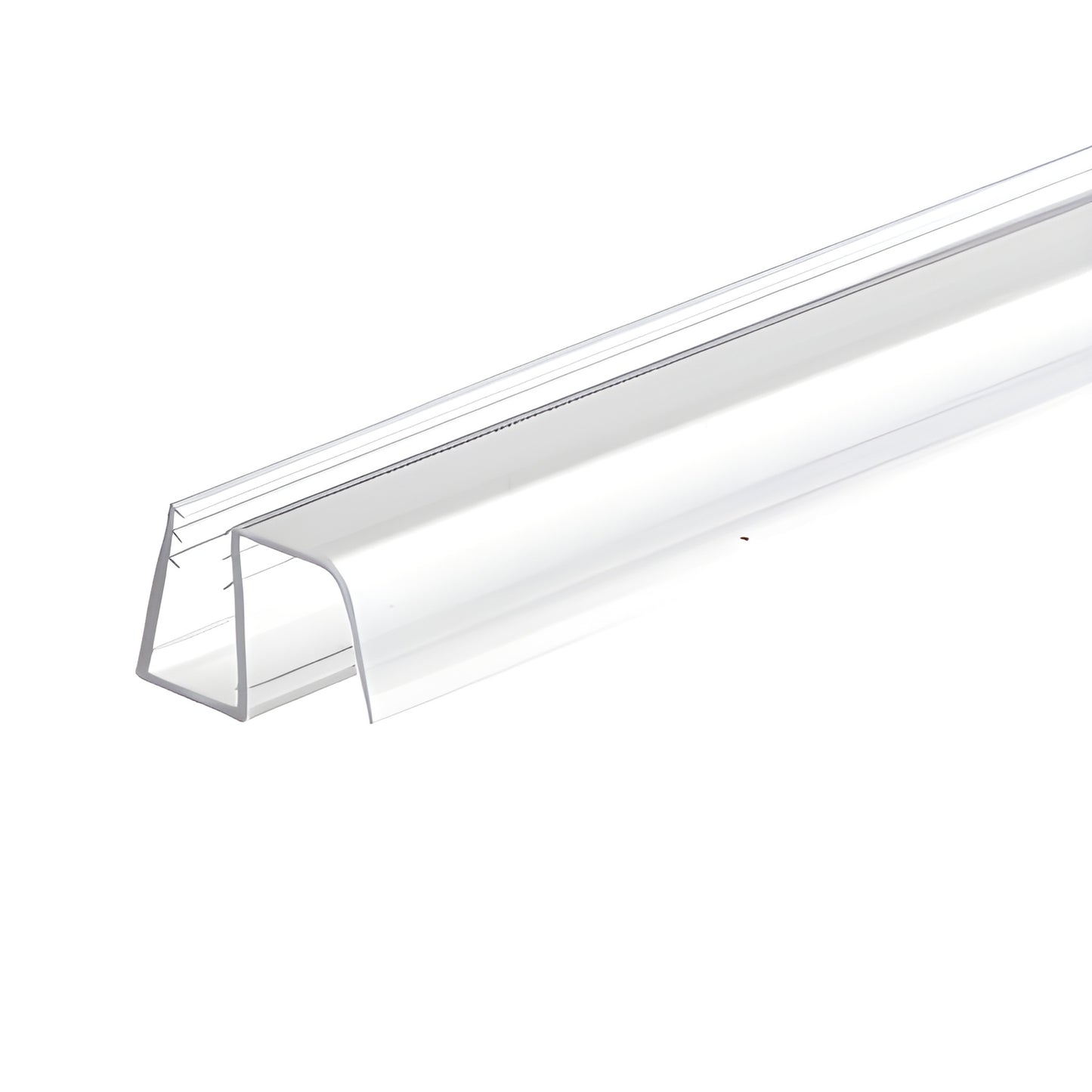

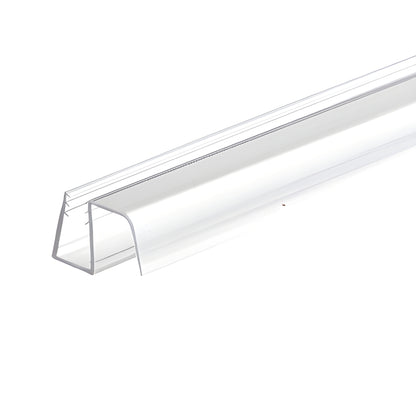

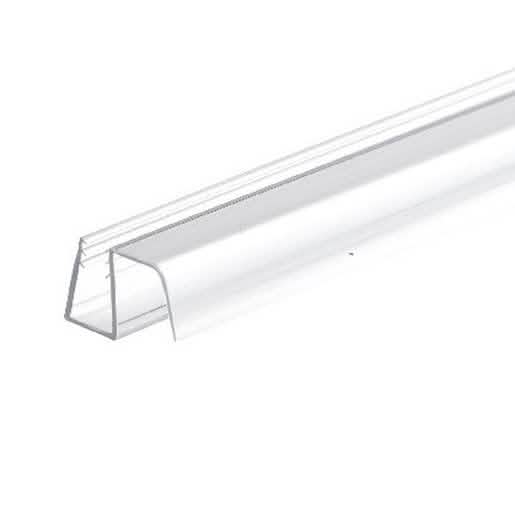

• Two - 40" (1016 mm) bottom sweeps with drip rail (one for 3/8" (10 mm) and one for 1/2" (12 mm))

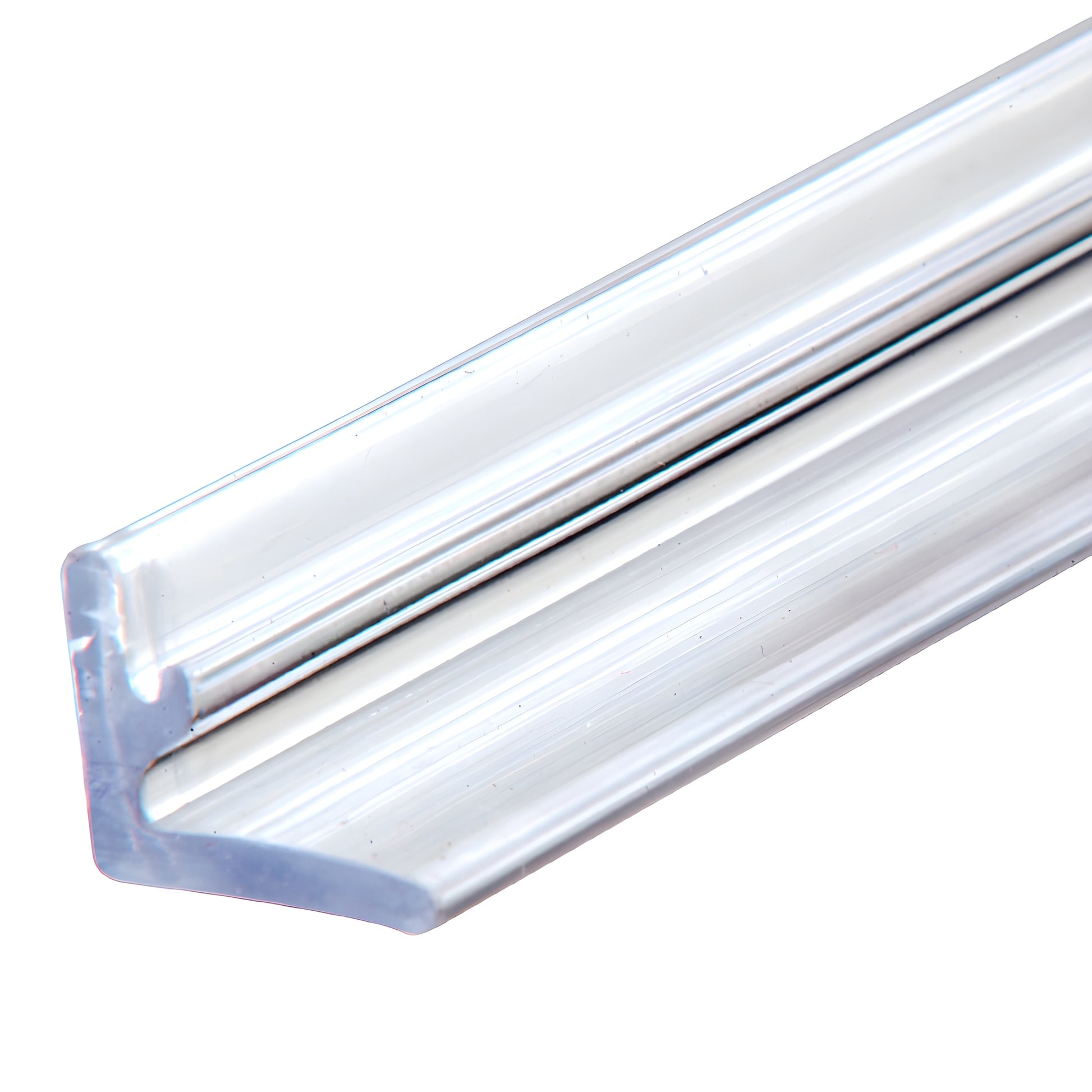

• One - 80" (2032 mm) Clear L-jamb

NOTE: Customer to supply choice of handle or knob for door, and glass clamps or U-channel for fixed panel.

SPECIFICATIONS:

• Material: Stainless steel
• Glass thickness: 1/2" or 3/8" (12 or 10 mm) — not included
• Maximum door size: 36" (914 mm) wide or 100 lbs (45 kg) — do not exceed either width or weight
• Glass fabrication required for both door
