Product Details
- System Features One Sliding Door and One Fixed Panel

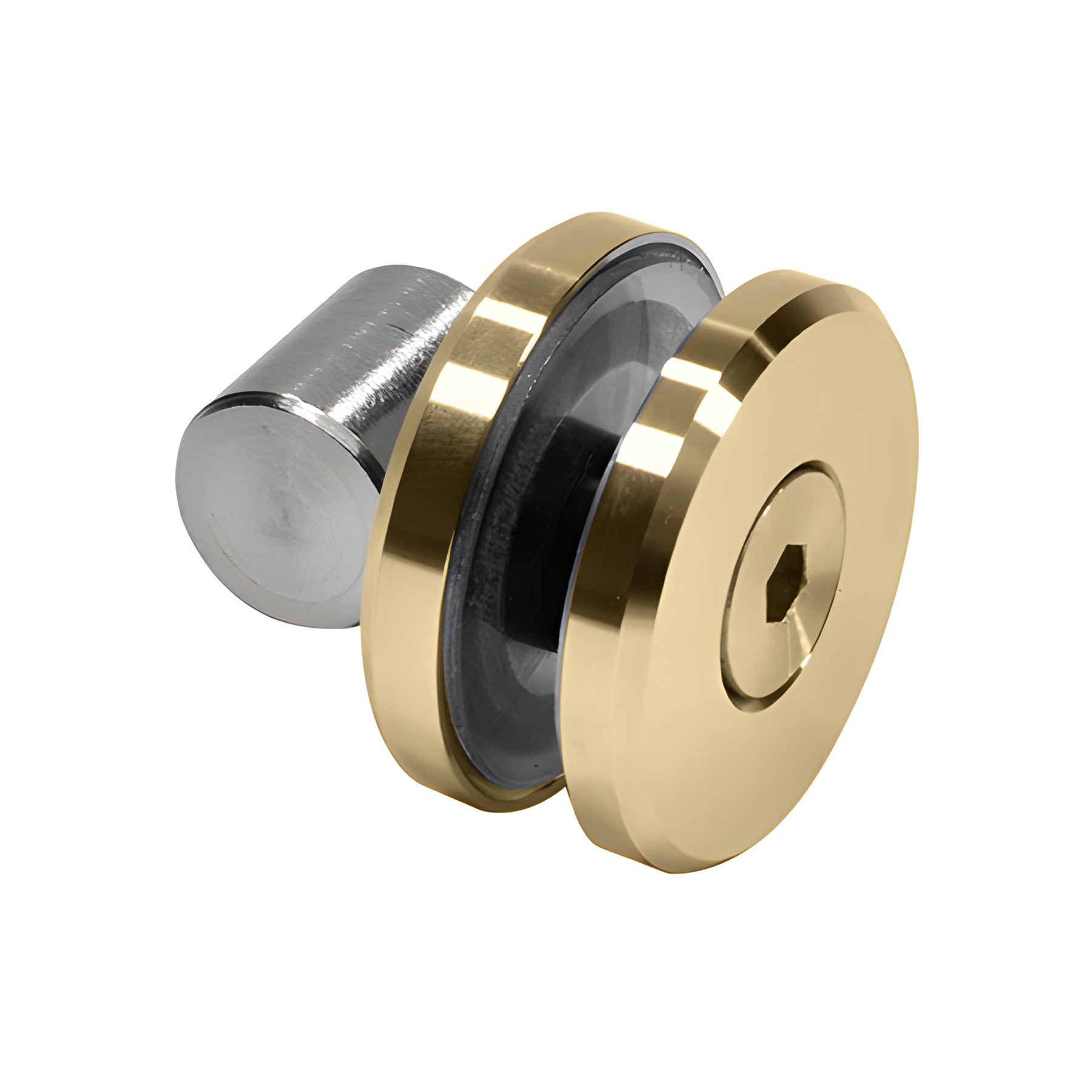

- Quality Roller Bearings Assure Quiet Door Movement
- Circular Header and Rollers Provide Symmetrical Aesthetics
- Polished Stainless, Brushed Stainless, Matte Black and Brushed Bronze Finishes
- Handle or Knob for Door Glass Ordered Separately
- Glass Clamps or U-Channel for Fixed Panel Ordered Separately
- Accommodates 1/2" or 3/8" ( 12 or 10 mm ) Thick Tempered
- Safety Glass (Not Included)
- One - 78" (1981 mm) Length of Header Bar
- Four - Rollers
- One - Stopper
- Two - Wall Mount Fittings
- Two - Track Holder Fittings for Fixed Panel
- One - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)
- Two - 40" (1016 mm) Bottom Sweeps with
- Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)
- One - 80" (2032 mm) Clear L-Jamb NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel. SPECIFICATIONS:
- Material: Stainless Steel
- Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included
- Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.
- Glass Fabrication Required for Both Door and Fixed Panel
The circular shaped Header and the round Rollers of the Crescent Series Sliding Door System are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft decor. The use of minimal hardware lends itself to the popular modern sliding shower door systems by showing more glass, and less hardware. These quality Rollers assure quiet door travel, and make the door easy to slide. The Crescent Series Sliding System accommodates 1/2" or 3/8" (12 or 10 mm) thick tempered safety glass (not included), and the system allows that the fixed and sliding panels are reversible for installation as desired. The Crescent Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, brushed bronze, or the new popular matte black finish.
Create a custom look with our black seals and black edge moldings sold separately. (View Here)
STANDARD 180 DEGREE KIT INCLUDES:One - 78" (1981 mm) Length of Header Bar Four - RollersOne - StopperTwo - Wall Mount FittingsTwo - Track Holder Fittings for Fixed PanelOne - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)Two - 40" (1016 mm) Bottom Sweeps withDrip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)One - 80" (2032 mm) Clear L-Jamb
NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.
SPECIFICATIONS:Material: Stainless SteelGlass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not IncludedMaximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.Glass Fabrication Required for Both Door and Fixed Panel
