CRL SDC EMLock Narrow-Profile Single Magnetic Door Lock
CRL SDC EMLock Narrow-Profile Single Magnetic Door Lock
Regular price
$688.74 CAD
Regular price
Sale price
$688.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDC350A
Shipping Weight: 22.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 22.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
SDC EMLock
Certification
ANSI/BHMA Grade 1,ANSI/BHMA Grade 1
Height
2-1/8
Holding Force
12001200
Input Voltage
12/24 Volts,12/24 Volts
Length
12-1/2
Type
Single Electromagnetic Lock,Single Electromagnetic Lock
UL Listed
Yes
Width
1-11/16
Overview
- Narrow-profile body retrofits discontinued Locknetics® 350+ magnetic lock (no modifications)
- Fully automatic 12/24VDC selection—works with 12V or 24V access control systems
- 1200 lbs. holding force for secure perimeter and interior doors
- Full monitoring standard (door status and lock monitoring)
- ANSI/BHMA Grade 1 compliant for commercial security applications

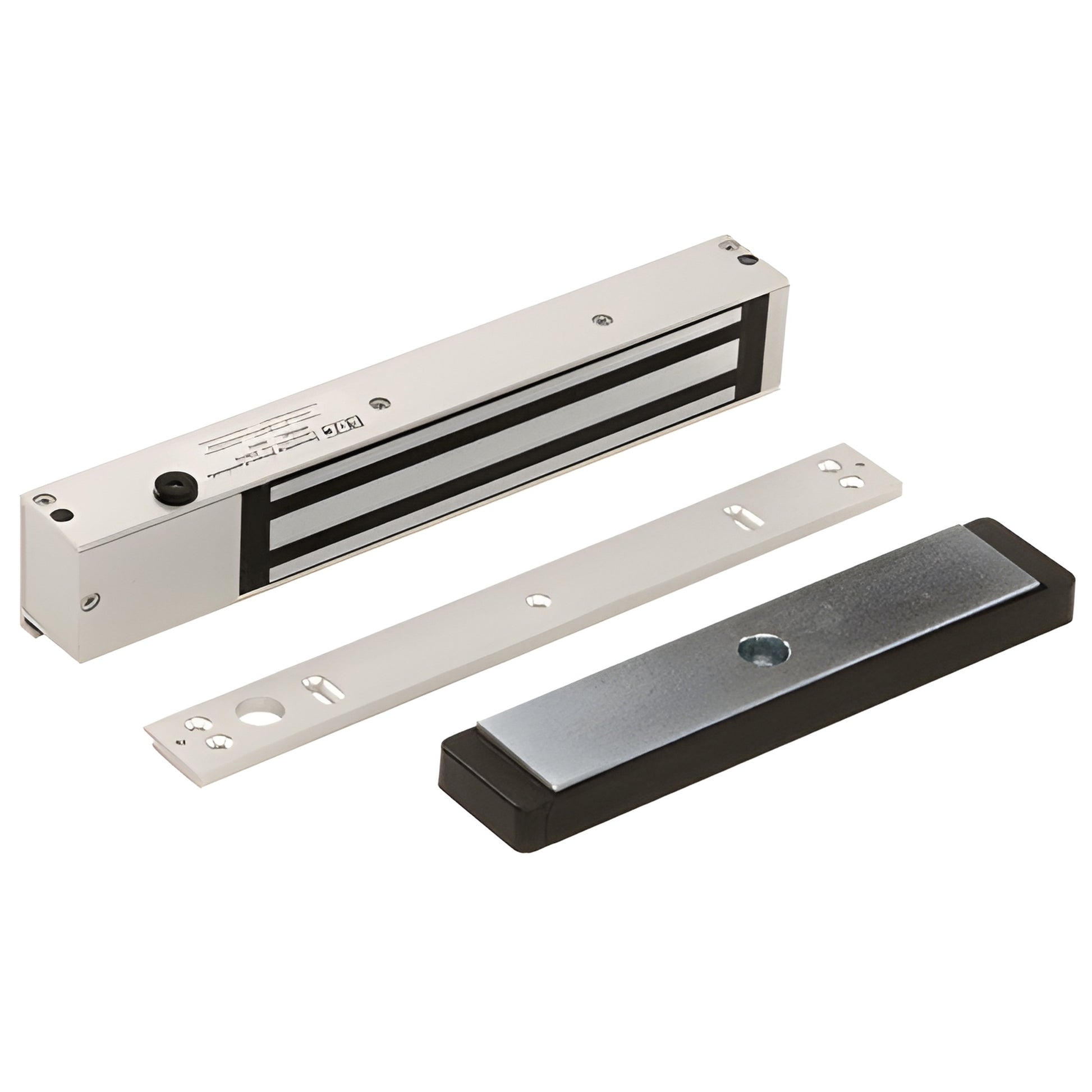

The CRL SDC® EMLock® Single Narrow Profile Electromagnetic Lock (SKU: SDC350A) is a retrofit-friendly, fail-safe magnetic lock that delivers 1200 lb holding force while projecting only 2-11/16" (68 mm) into the opening—ideal for narrow frames and architectural applications. Designed for access control professionals, it meets fire life-safety and building security requirements and includes standard monitoring for integrated system diagnostics.
SPECIFICATIONS:
Holding Force: 1200 Lbs. (544 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection
Single EMLock®
12 Volt Current Draw: 540 mA
24 Volt Current Draw: 300 mA
Dimensions: L = 12-1/2" (318 mm) x H = 2-1/8" (54 mm) x W = 1-11/16" (43 mm)
Weight: 9.5 lbs. (4.3 kg)
Enhance narrow-frame security with the SDC350A narrow-profile electromagnetic lock—order or request a quote today.
Specifications
Installation Instructions
