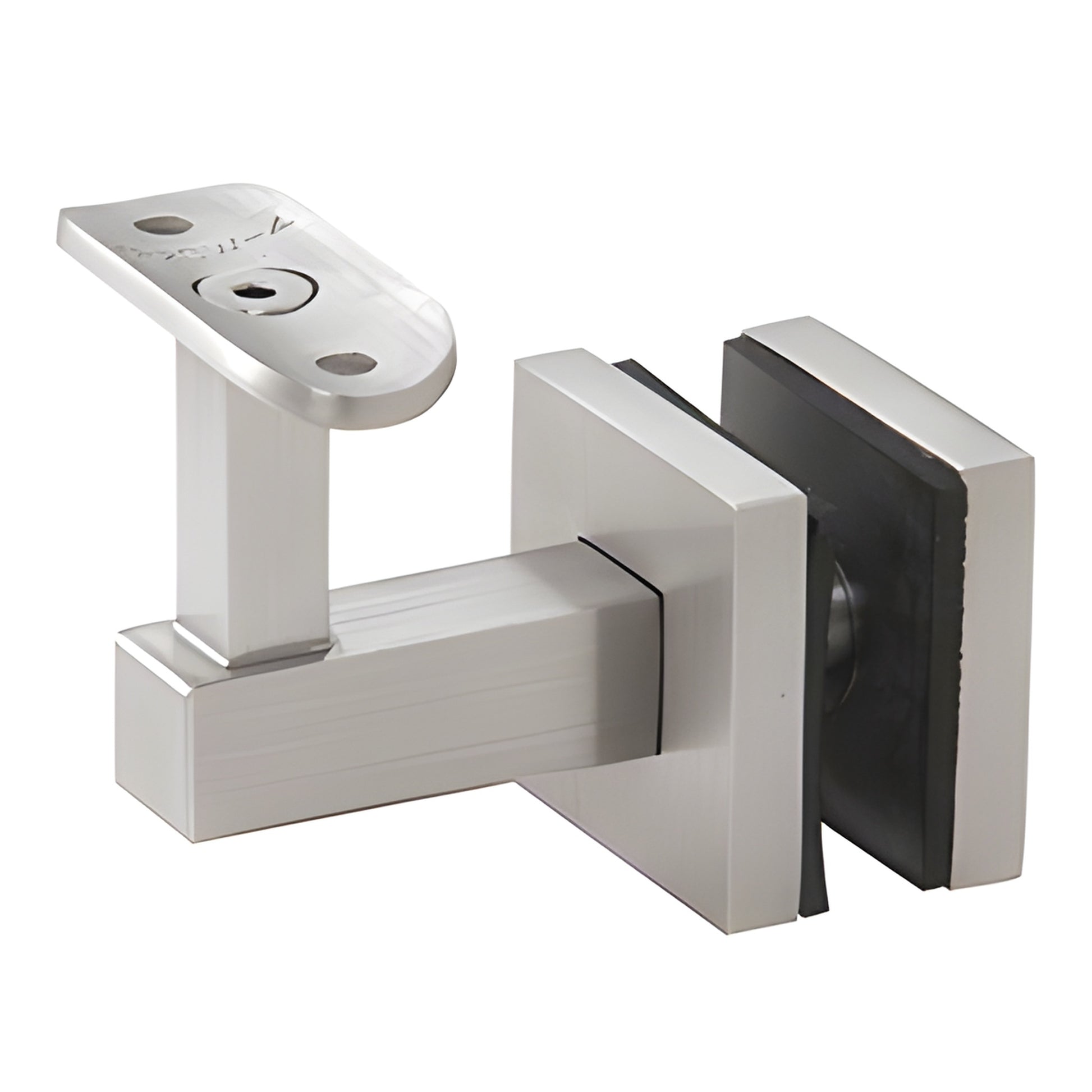

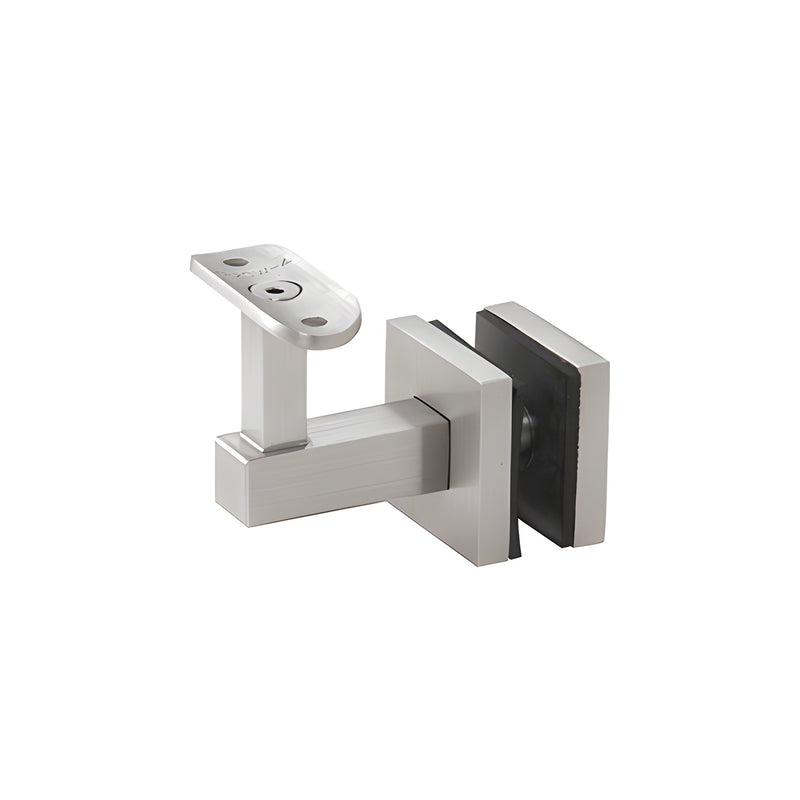

CRL Shore Brushed Stainless Steel Handrail Bracket for Glass Railing
CRL Shore Brushed Stainless Steel Handrail Bracket for Glass Railing
Regular price
$105.81 CAD
Regular price
Sale price
$105.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HR5EGBS
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

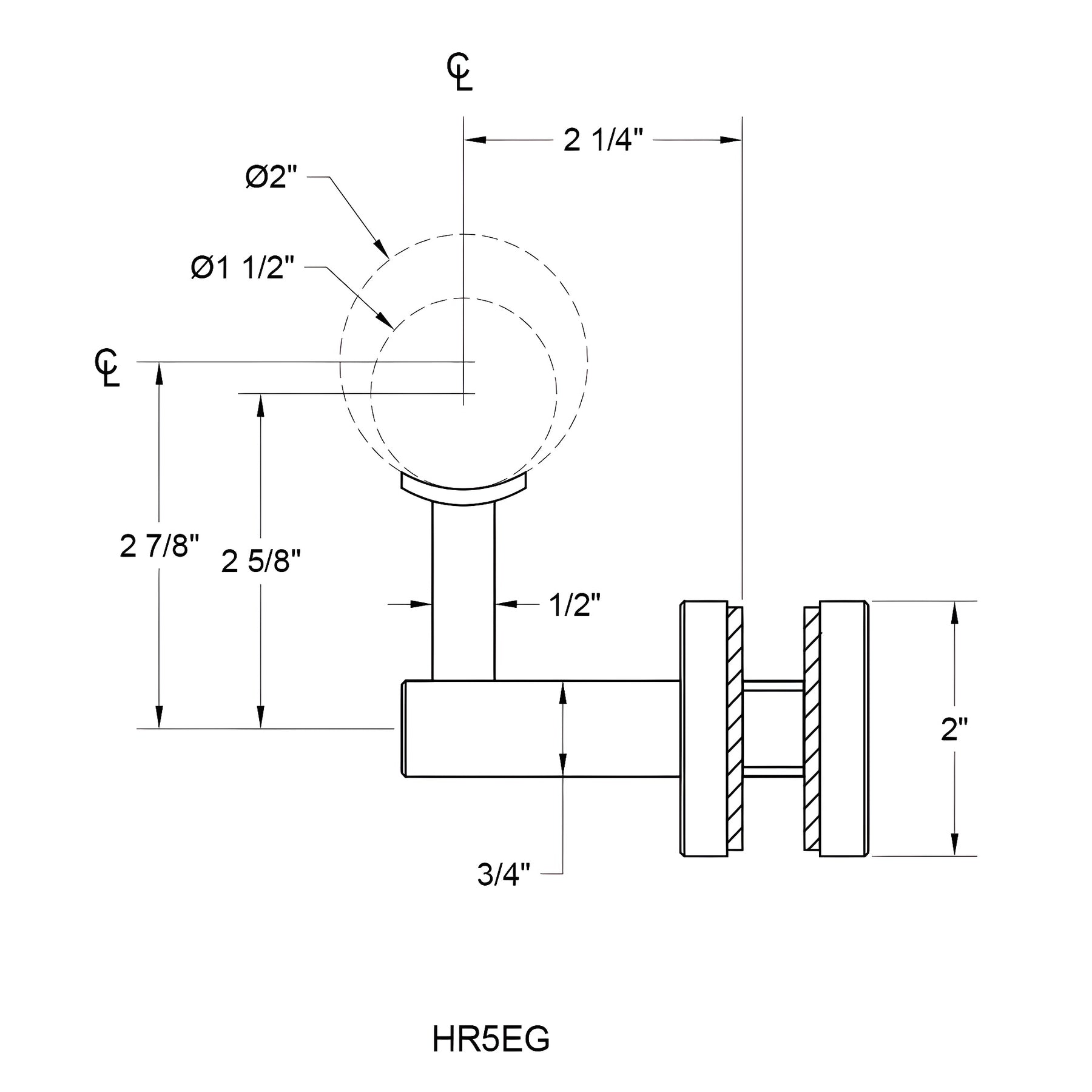

Centerline Width Projection
2-1/4 in. (57 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Overview
- Ready-to-install glass-mounted hand rail bracket for 1-1/2" to 2" (38.1 to 50.8 mm) diameter handrail tubing
- Two architectural finishes available for commercial and residential applications
- Fits 1/2" to 1-1/16" (12 to 25.52 mm) glass thickness
- Can also be used for wall-mount applications
This CRL Shore Series Glass Mounted Hand Rail Bracket (SKU: HR5EGBS) is designed for 1/2" to 1-1/16" (12 to 25.52 mm) glass and installs easily for handrail systems that require a clean, architectural glass-mounted solution.
Product Warning:
NOTE: Requires a 3/4" (19 mm) hole in glass.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
For the HR5EGBS Shore Series glass-mounted handrail bracket or assistance with specifications and ordering, contact CRL Customer Service or order online today.
Specifications
CAD Drawings - pdf
