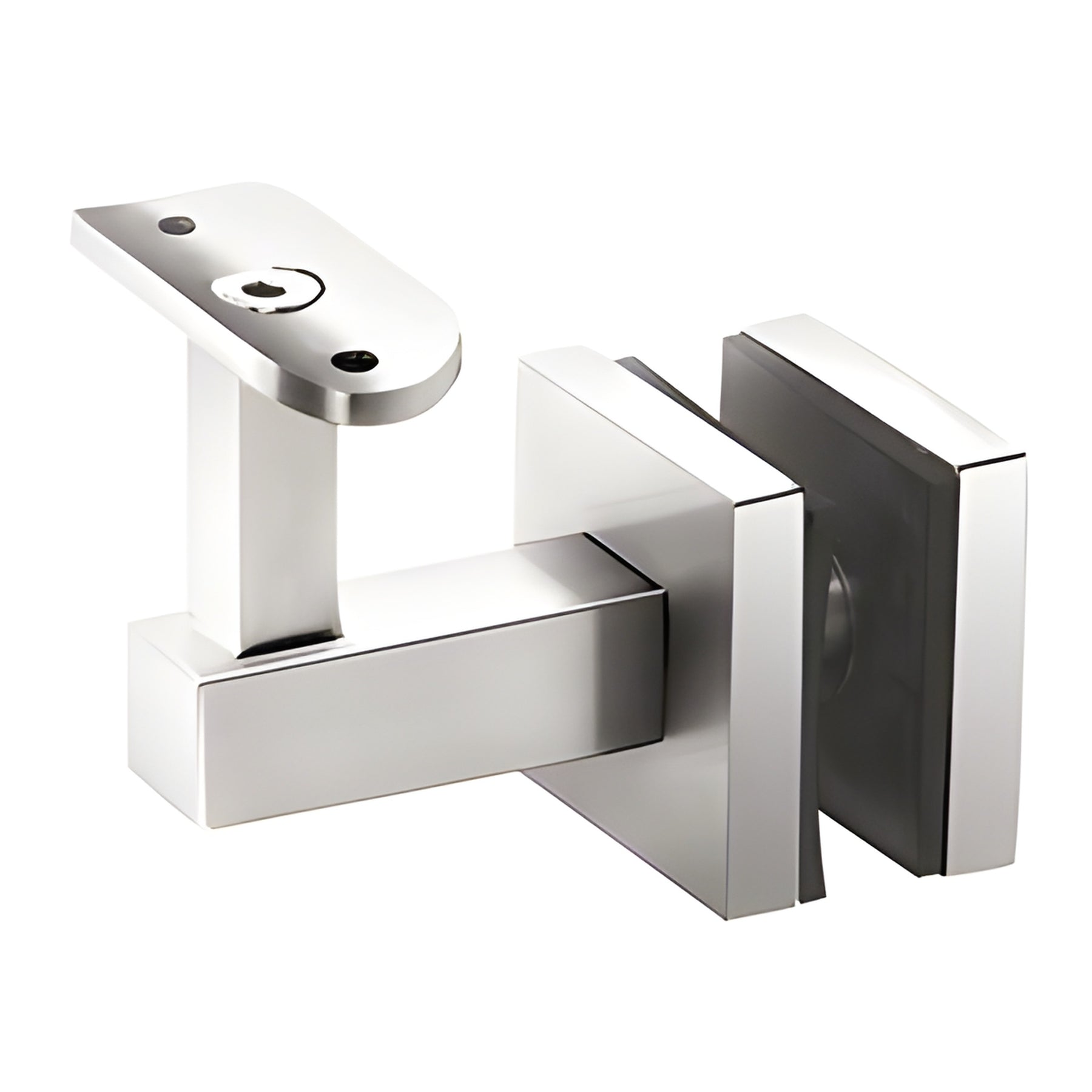

CRL Shore Series Polished Stainless Steel Glass Handrail Bracket
CRL Shore Series Polished Stainless Steel Glass Handrail Bracket
Regular price
$118.75 CAD
Regular price
Sale price
$118.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HR5EGPS
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

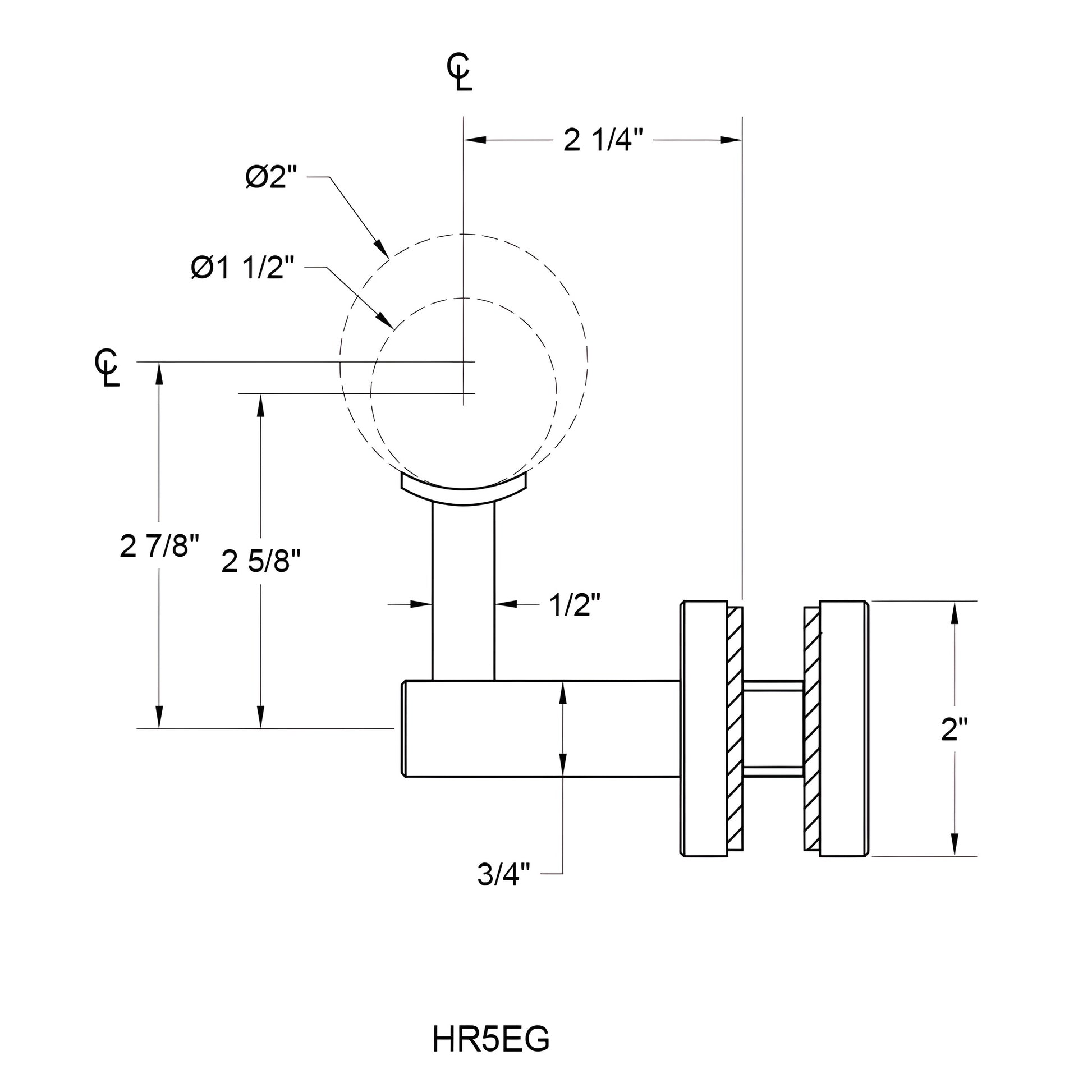

Cap Height
2 in. (51 mm)
Centerline Width Projection
2-1/4 in. (57 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Overview
- Ready-to-install glass mounted hand rail bracket for 1-1/2" to 2" (38.1 to 50.8 mm) diameter handrail tubing
- Two architectural finishes available for interior and exterior design applications
- Designed for 1/2" to 1-1/16" (12 to 25.52 mm) glass thickness
- Can also be used for wall-mount applications
Product: CRL Shore Series Glass Mounted Hand Rail Bracket (SKU: HR5EGPS)
This glass-mounted handrail bracket is engineered for secure support of glass panels 1/2" to 1-1/16" (12–25.52 mm) thick and fits 1-1/2" to 2" diameter handrail tubing. Ideal for commercial and residential glass balustrades, stair railings, and ADA-compliant handrail systems where a clean, architectural finish is required.
Product Warning:
NOTE: Requires a 3/4" (19 mm) hole in glass.
Stainless Steel Advisory:
Although stainless steel is highly corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Shop now to order the Shore Series glass-mounted handrail bracket (SKU: HR5EGPS) or contact CRL for technical assistance and installation guidance.
Specifications
CAD Drawings - pdf
