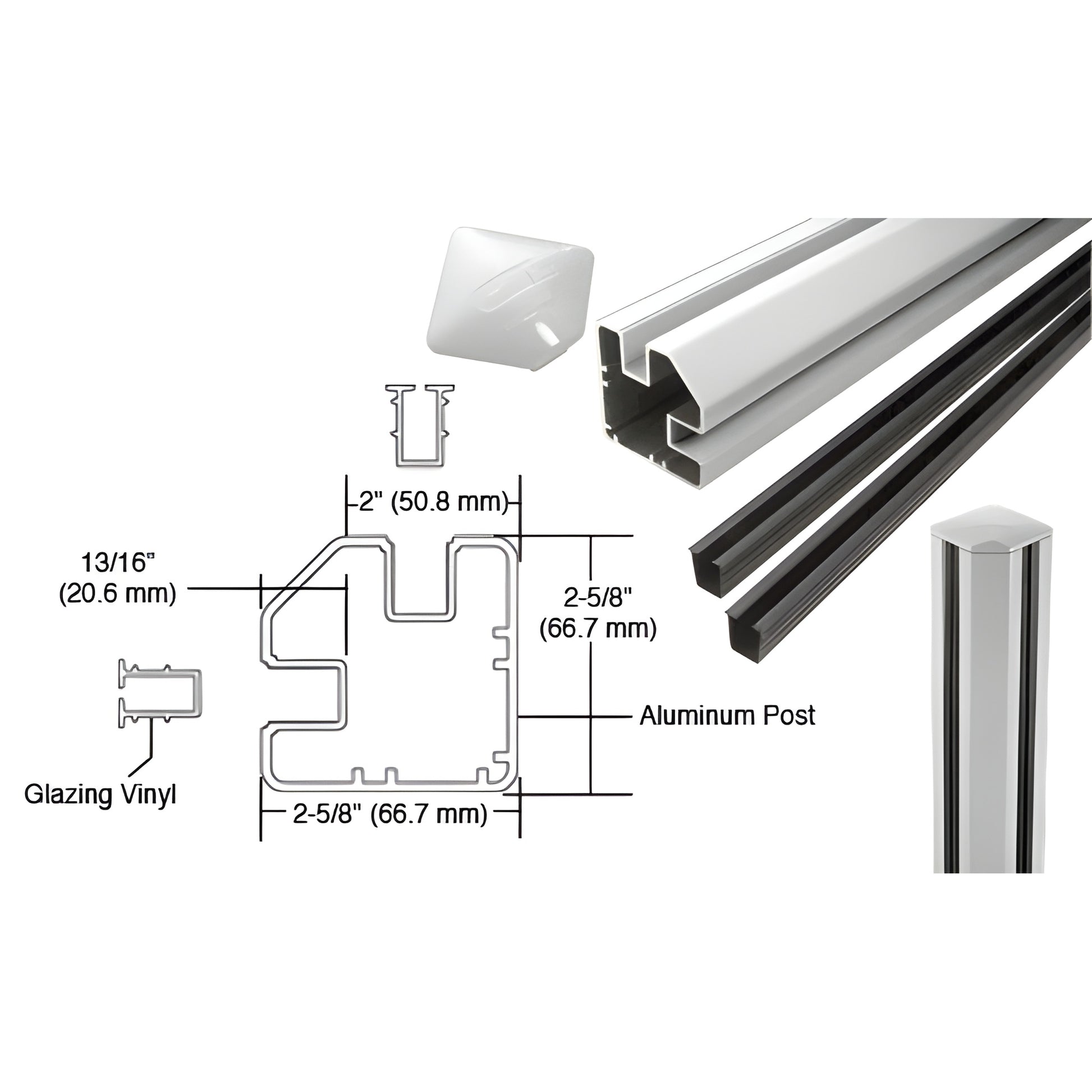

CRL 48 in Silver AWS 90° Corner Post Kit 2 x 2-5/8 in for Shower
CRL 48 in Silver AWS 90° Corner Post Kit 2 x 2-5/8 in for Shower
Regular price
$192.83 CAD
Regular price
Sale price
$192.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S48CRKS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Centerline
2-5/8 in. (67 mm)
Configuration
Corner
Degree
90
Depth
2 in. (51 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
48 in. (1219 mm)
Material
Aluminum
Profile
Rectangular
Overview
- Standard kits include post, top cap, and vinyl
- Available in several attractive colors
- Custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
These CRL Kits (SKU: S48CRKS) are corner post kits for fabricating posts that join two glass panels at 90 degrees — ideal for glass partitions, office storefronts, and divider systems. Designed for 1/4"–3/8" panels dry glazed with vinyl or 1/2" panels wet glazed, these glass partition corner post kits offer flexible glazing options and custom color matching.
Installation limits: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Order the S48CRKS glass partition corner post kit today — contact us for custom colors or technical support.
Specifications
CAD Drawings - pdf
