CRL Single Brass Wall-to-Glass Hinge for Frameless Shower Doors
CRL Single Brass Wall-to-Glass Hinge for Frameless Shower Doors
Regular price
$60.79 CAD
Regular price
Sale price
$60.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH260
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
31/32 in. (24.6 mm)
Material
Brass
Maximum Door Width
14 in. (355.6 mm)
Pack Quantity
2
Weight Capacity
10 lbs. (4.5 kg)
Width
1-13/64 in. (30.6 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Two per package (pair)
- Requires one 1/2" (12 mm) hole in glass for mounting

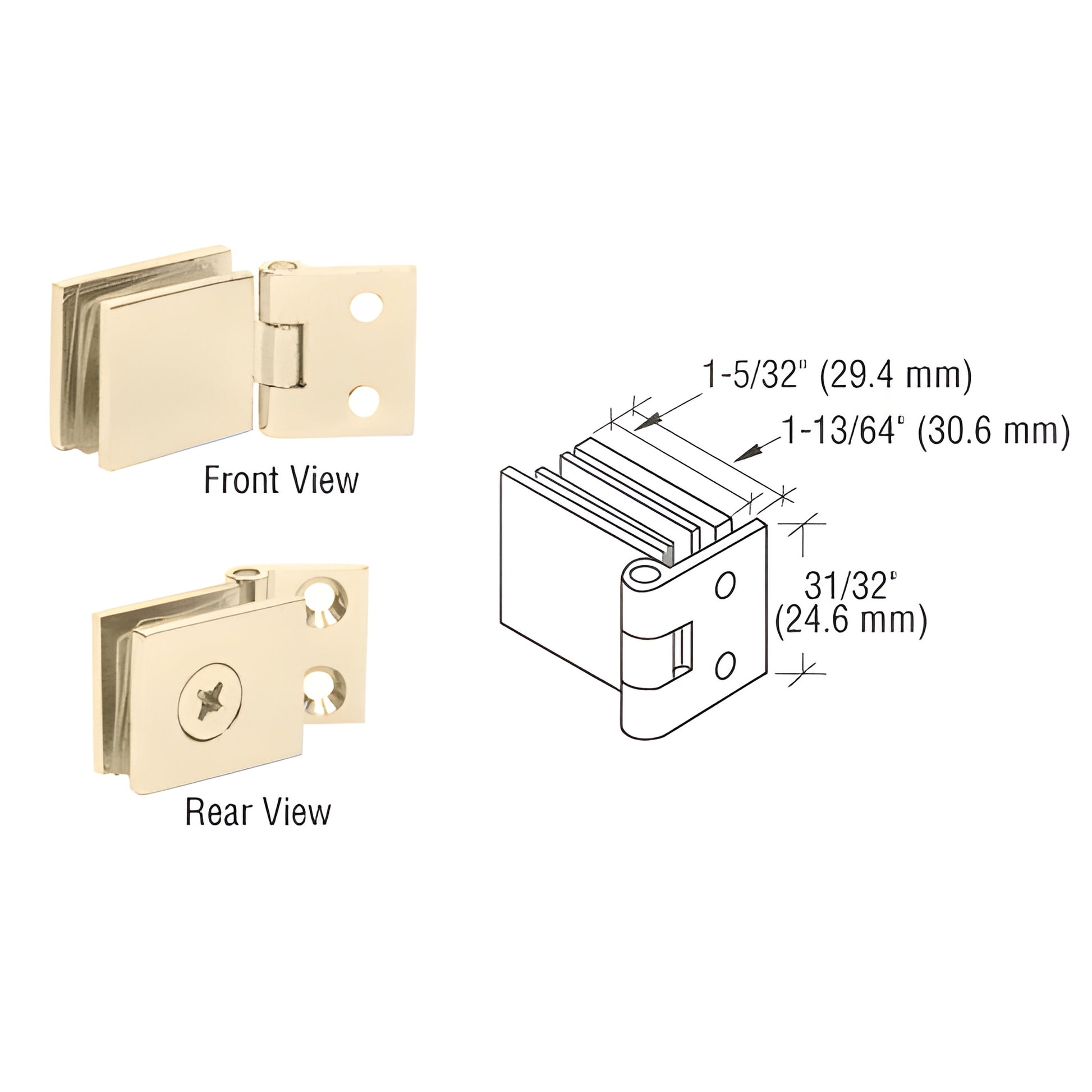

Designed for wall-mounted glass doors, the CRL Brass Single Wall-to-Glass Hinge (SKU: EH260) features forged brass construction and a screw-attachment design for secure installation. Clear vinyl pad inserts protect the glass edge. Available in polished brass with a lacquered finish or chrome-plated finish. Recommended maximum door width: 14" (356 mm); maximum door weight: 10 lb (4.5 kg).
Brass Finish Advisory:
Brass finishes can oxidize over time and may develop a tarnished appearance despite initial packaging or storage. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.
Right-size your hardware with this forged brass wall-to-glass hinge designed for 1/4"–5/16" glass — order SKU EH260 today.
