CRL Sky White AWS 2" x 2-5/8" Rectangular 180 Degree 72" End Post Kit
Item # S72EKW
$248.70
CAD
Finish (3)
-
Matte Black -
Silver Metallic -
Sky White
Overview
| SKU | S72EKW |
|---|---|
| Sold As | 1 Each |
| Configuration | End |
| Degree | 180 |
| Depth | 2-5/8 in. (67 mm) |
| Finish/Color | Sky White |
| Glazing Thickness - Dry Glaze | 1/4 To 3/8 Inch |
| Glazing Thickness - Wet Glaze | 1/2 Inch |
| Length | 72 in. (1829 mm) |
| Material | Aluminum |
| Profile | Rectangular |
| Width | 2 in. (51 mm) |
Description

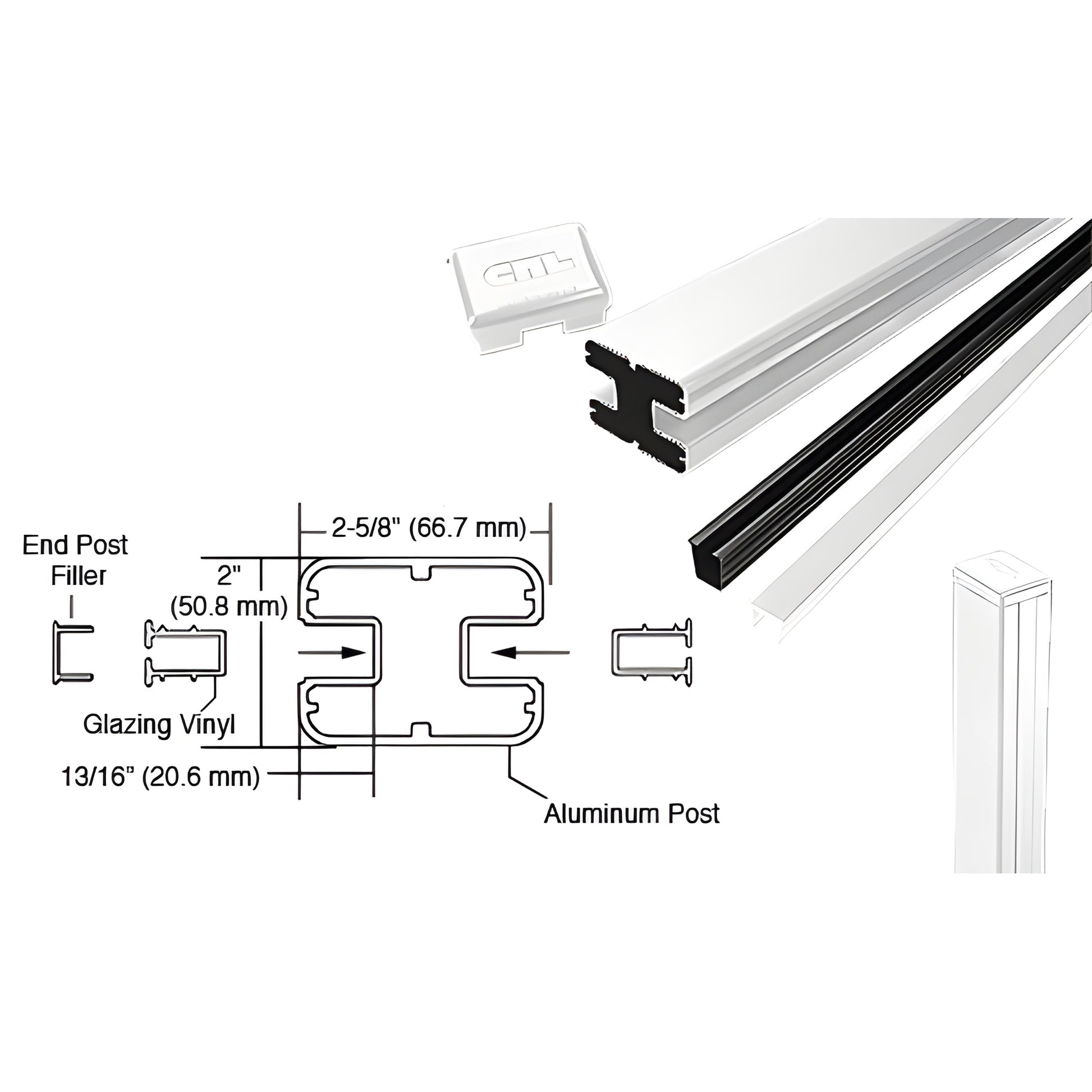

- Standard Kits Include Post, Top Cap, and Vinyl
- Available in Several Attractive Colors
- Custom Colors Available Upon Request
- Accommodates 1/4" to 3/8" (6 to 10 mm) Glass Dry Glazed with Vinyl
- Accommodates 1/2" (12 mm) Glass Wet Glazed
These CRL Kits can be used to fabricate posts used at the end of a barrier. They can accommodate 1/4" to 3/8" (6 to 10 mm) panels when dry glazed with vinyl, and 1/2" (12 mm) panels when wet glazed. They are available in several attractive colors.
NOTE: Maximum Post Spacing is 72" (1.83 m) on center. Maximum square footage should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Specifications
Brochures & Literature
Quote Request Forms
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
