CRL Brushed Stainless Small Glass-to-Wood Door Swing Hinge (UV)
CRL Brushed Stainless Small Glass-to-Wood Door Swing Hinge (UV)
Regular price
$78.75 CAD
Regular price
Sale price
$78.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UV6262
Shipping Weight: 2.368 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.368 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

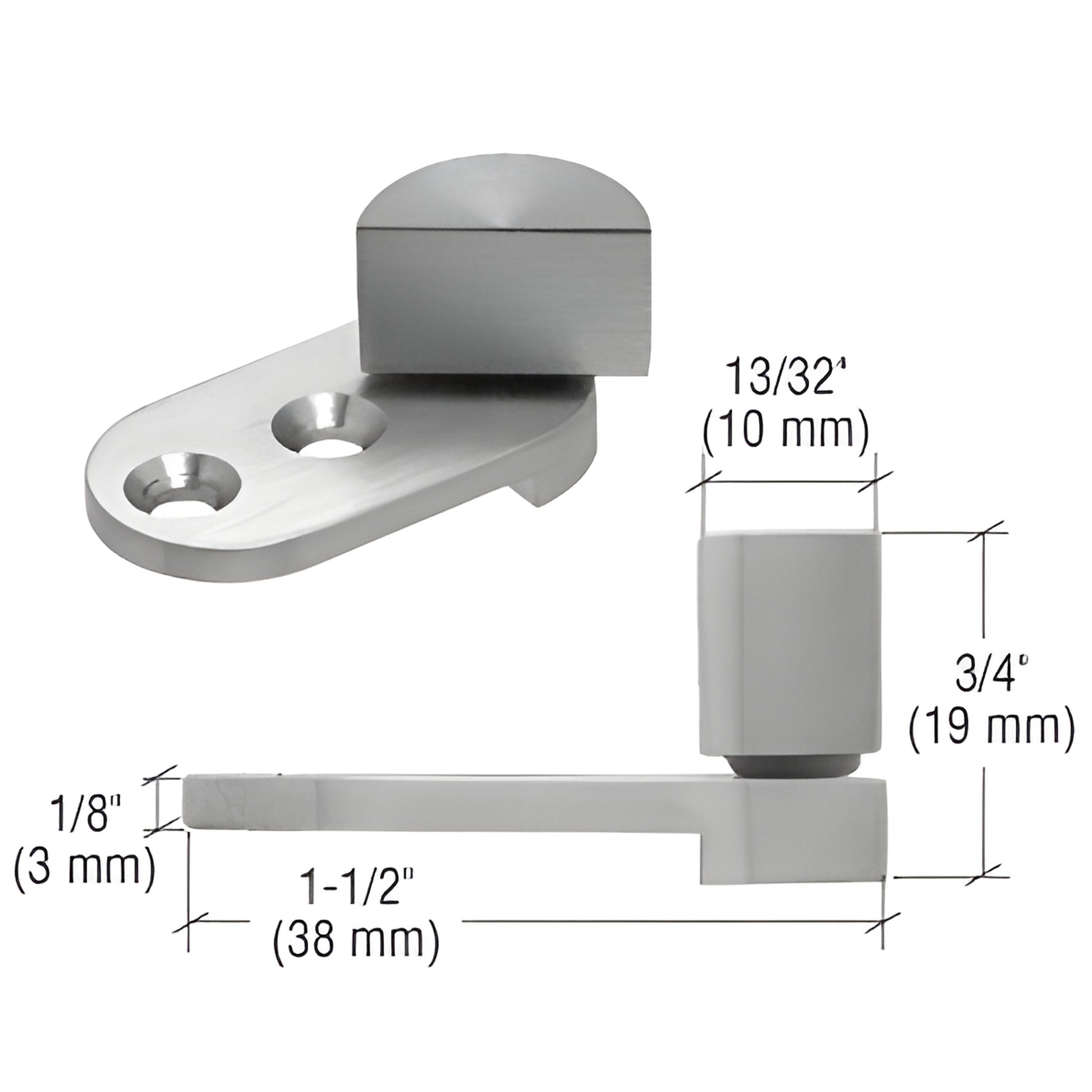

Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
3/4 in. (19 mm)
Material
Stainless Steel
Maximum Weight Capacity
22 lbs. (10 kg)
Overall Width
1-1/2 in. (38 mm)
Profile
Small
Width
13/32 in. (10 mm)
Overview
- For inset glass doors in a wood cabinet
- Weight capacity 22 lbs. (10 kg)
- SKU: UV6262
CRL's UV Glass-to-Wood Hinges are designed for bonded glass cabinet doors installed into a wood surround frame. These brushed stainless steel glass-to-wood cabinet hinges bond to glass up to 1/2" (12 mm) thick per hinge pair and support inset glass doors with a 22 lb (10 kg) capacity. A threaded pin in the bottom hinge allows easy installation and removal after glass bonding—ideal for bonded glass cabinet door hinge applications. Minimum order is one pair (top and bottom).
Product Warning:
3/8" total height glass deduction (3/16" per side). Width deductions are determined based on desired gaps and any hardware that must be cleared.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
For bonded glass-to-wood hinge solutions for inset glass cabinet doors, order SKU UV6262 or contact CRL Customer Service to confirm fit and shipping.
