CRL Large Brushed Stainless Steel Glass-to-Wood Swing Hinge UV-Rated
Item# UV6263
Shipping Weight: 5.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |

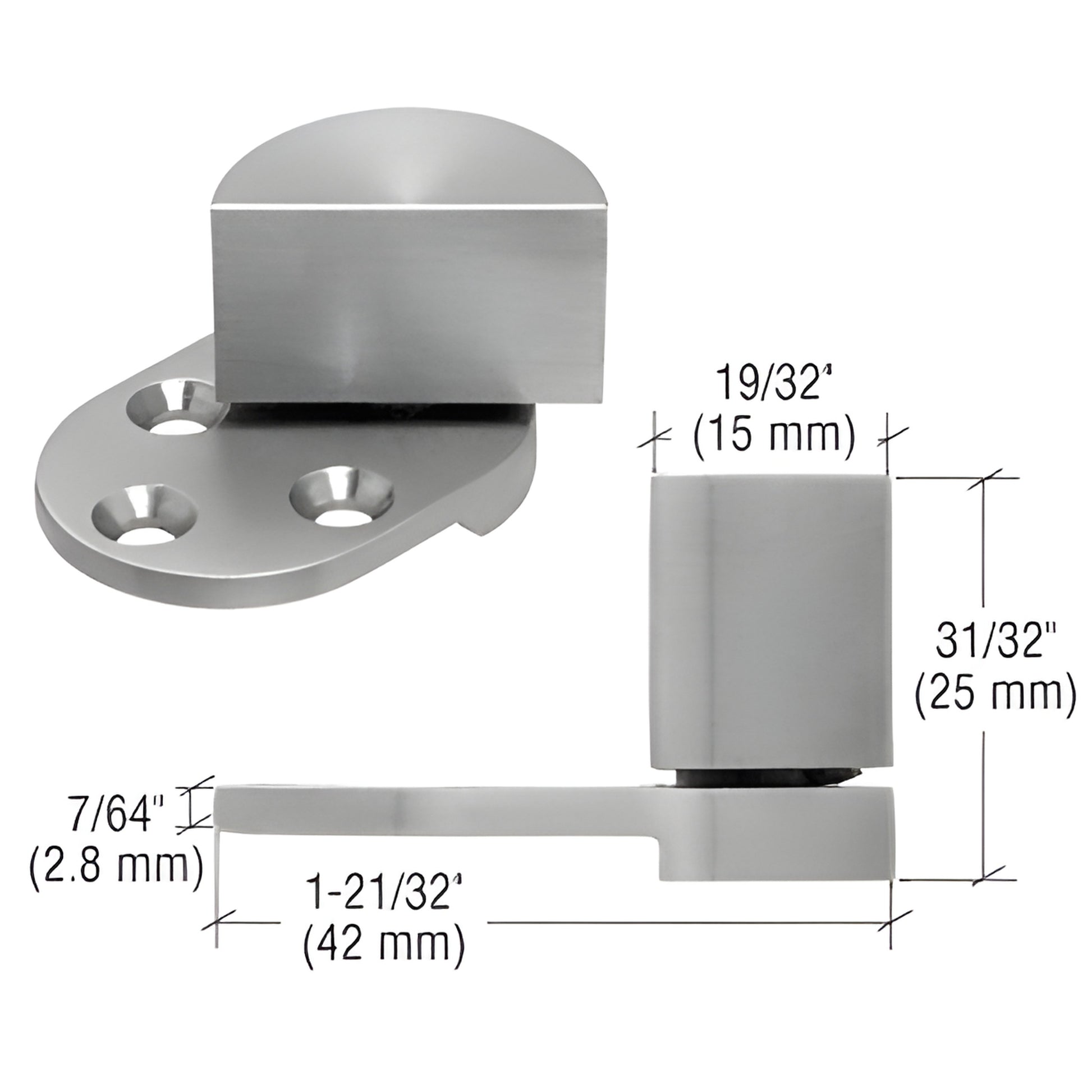

Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
31/32 in. (25 mm)
Material
Stainless Steel
Maximum Weight Capacity
44 lbs.(20 kg)
Overall Width
1-21/32 in. (42 mm)
Profile
Large
Width
19/32 in. (15 mm)
- For inset glass doors in a wood cabinet
- Weight capacity 44 lbs. (20 kg) per pair
CRL UV Glass-to-Wood Hinges (SKU: UV6263) deliver a reliable bonded-hinge solution for inset glass cabinet doors set into a wood surround frame. These brushed stainless steel hinges bond to glass up to 1/2" (12 mm) thick per pair and support up to 44 lbs. (20 kg). A threaded pin in the bottom hinge allows easy installation and removal after glass bonding—ideal for display cabinets, curio cabinets, and furniture with inset glass doors. Minimum order is one pair (top and bottom).
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, and those costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Order UV6263 glass-to-wood hinges today to secure and streamline installation of your inset glass cabinet doors.
