CRL-U.S. Aluminum 250 Narrow Stile Door, Kynar Paint, Geared Hinge
CRL-U.S. Aluminum 250 Narrow Stile Door, Kynar Paint, Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ21871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications

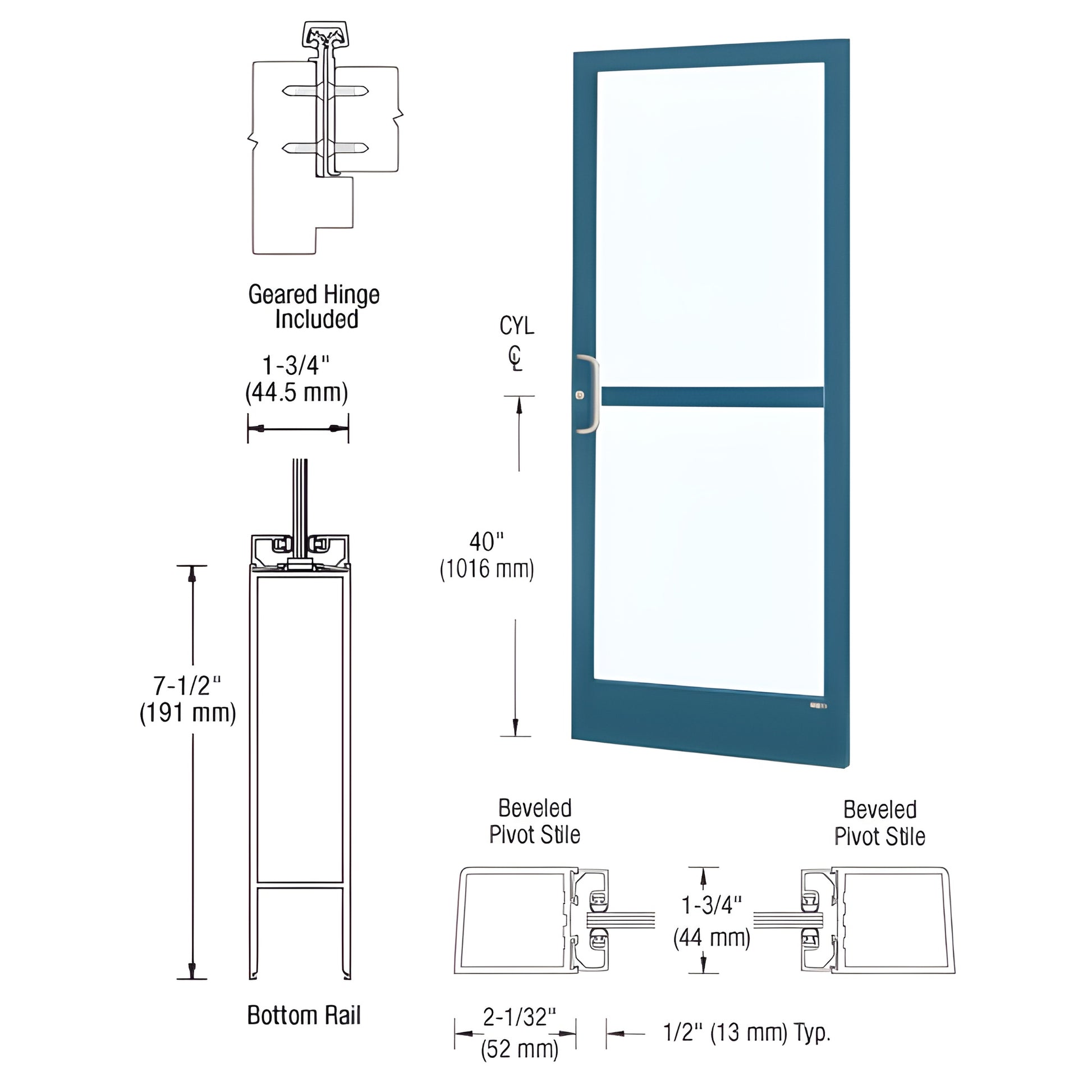

This Custom Narrow Stile Entrance Door (SKU: HZ21871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Built for commercial storefronts and high-traffic entrances, it ships with stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass by others). Ready for custom fabrication to accommodate a wide range of optional hardware, including panic and vertical rod systems — a practical choice for secure, code-compliant entryways.
Order or request a quote for SKU HZ21871 to get pricing and lead time.
Specifications
BIM Objects - rvt
