CRL-U.S. Aluminum 550 Wide Stile Butt-Hinged Door, Clear Anodized

• Includes Standard Panic Pull and hanging hardware for quick installation
• Selected panic hardware and one cylinder are ordered and added separately
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 9-1/2" (241 mm) bottom rail available to meet A.D.A. and Title 21 applications
• Custom fabricated to accept a wide range of optional hardware applications for commercial use

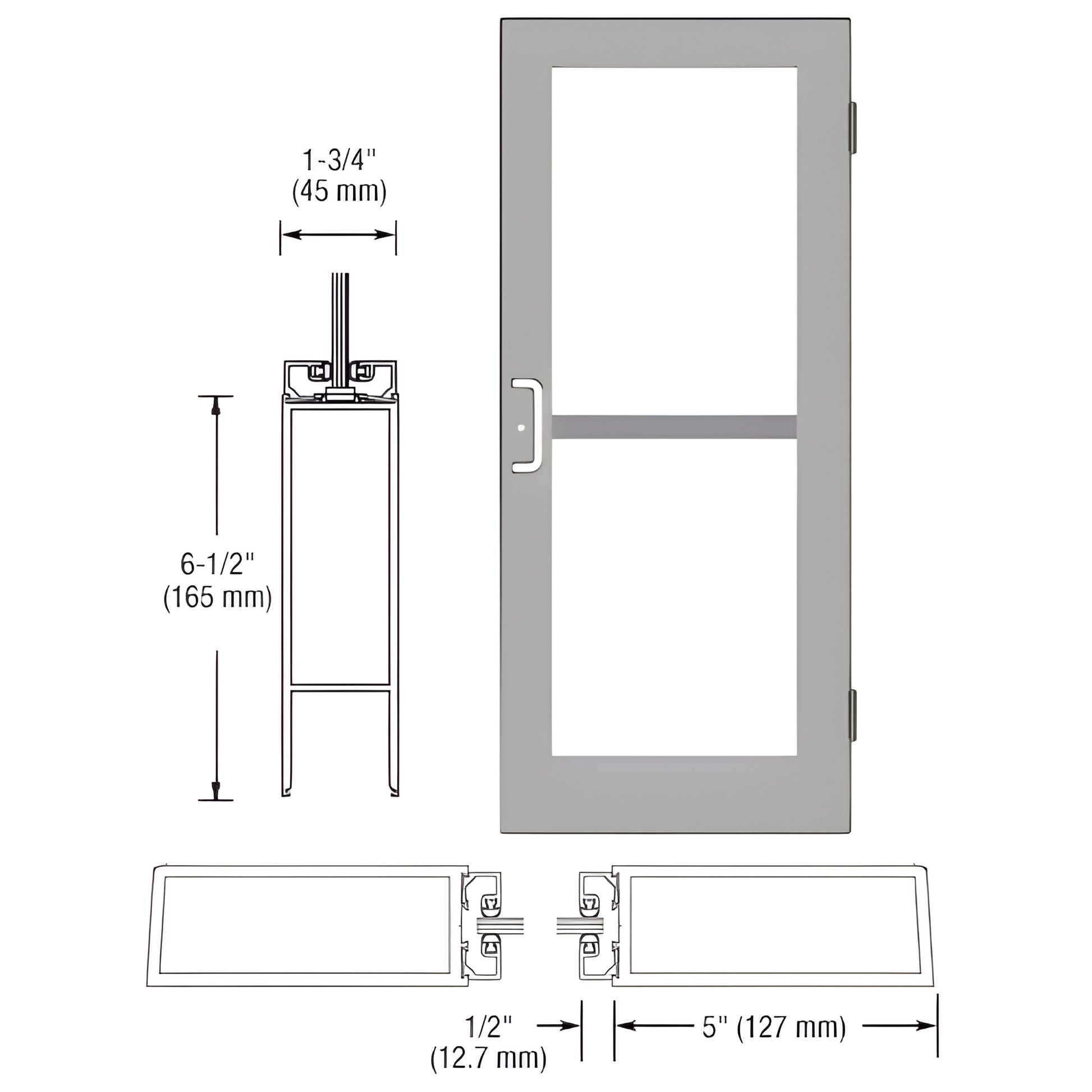

This Custom Wide Stile Entrance Door is a commercial-grade solution with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include butt-hinge stiles and glass stops sized for 1/4" (6 mm) tempered glass (glass by others). Built for custom fabrication to support optional hardware packages and institutional or retail storefront installations.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

SKU: DZ51511 — Custom commercial glass entrance door engineered for secure, ADA-aware storefront and institutional applications. Contact CRL to configure hardware options and place your order.
