CRL-U.S. Aluminum 550 Wide Stile Geared-Hinge Entrance Door, KYNAR®

• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (glass not included)
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• 7-1/2" (191 mm) bottom rail
• Custom fabricated to accept optional hardware applications

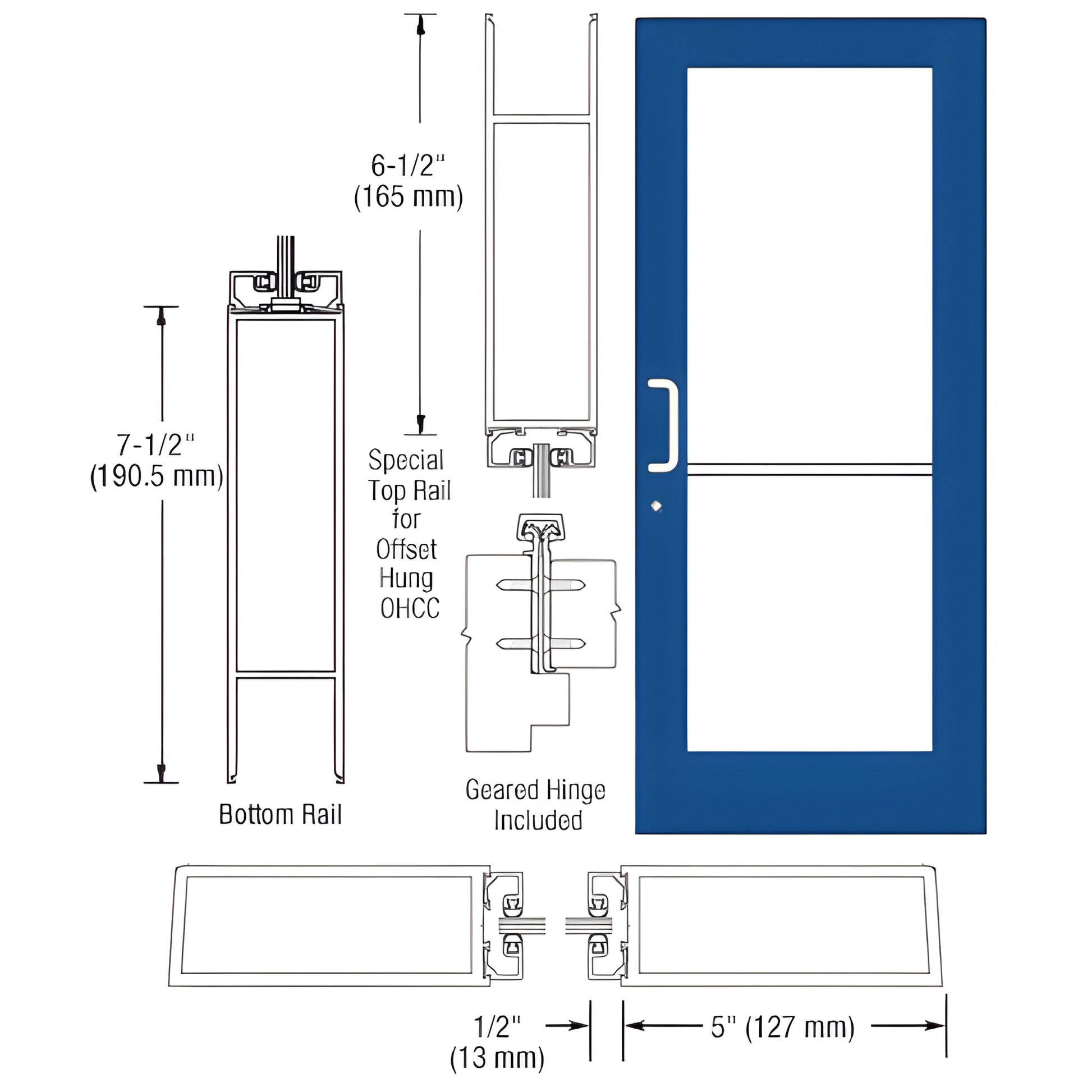

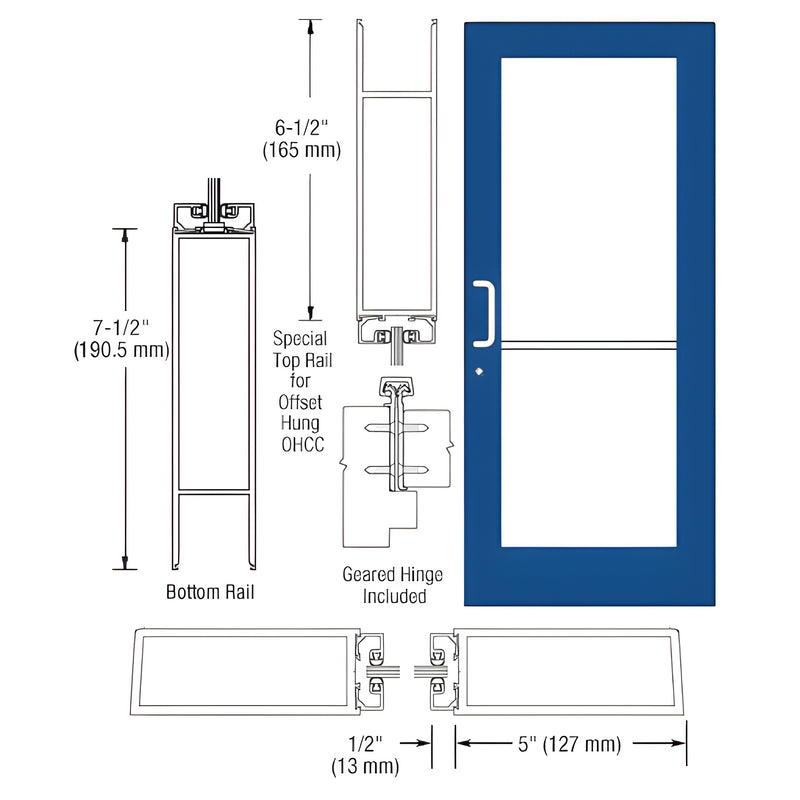

This Custom Wide Stile Entrance Door (SKU: HE51971) is a commercial-grade, custom-fabricated entry solution with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for storefront and commercial entrance installations, it includes stiles configured for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass supplied by others. The door is ready for customized hardware applications—ideal when you need a heavy-duty, glass-accommodating commercial entrance door built to spec.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU HE51971 or contact us for custom hardware options and lead times.
