CRL-U.S. Clear Anodized Aluminum Deep Division Bar with Vinyl, 24 ft
Item# DB47511
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized
Height
2-3/16
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-11/16"
Width
1-3/4
- Available in Clear Anodized and Dark Bronze finishes
- Supplied with vinyl and 20 screws (1/4-20 x 1-11/16" Pan Head Phillips)
- Back bar is punched 12" (305 mm) on center

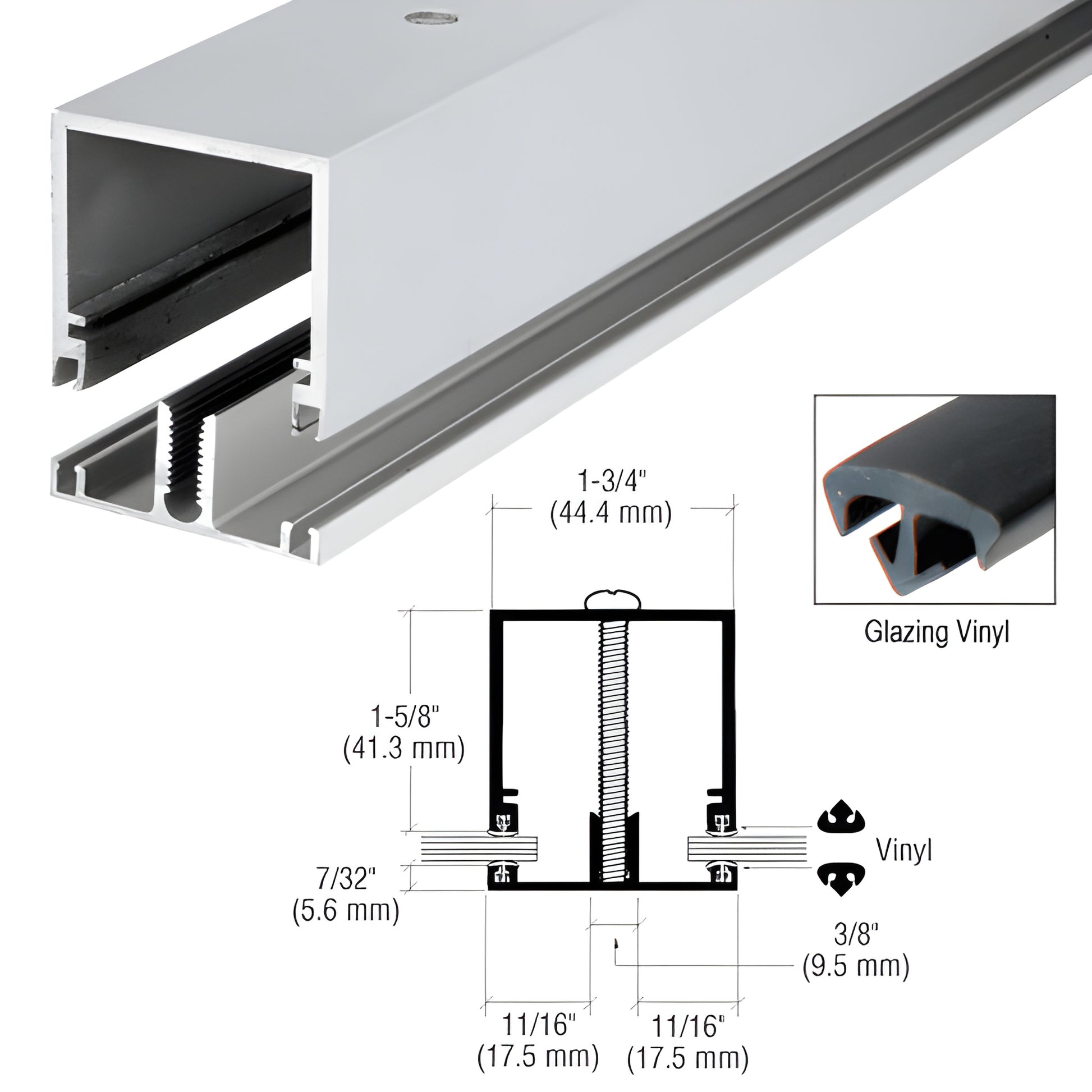

CRL Deep Division Bar (SKU: DB47511) is a lightweight extruded aluminum division bar for windows and small fixed glazing units. Designed for vertical or horizontal installation, the system uses a face member with an extruded spline and threaded bosses to receive exposed fasteners inserted through the drilled back member. After the glazing infill is set, the back and face members are screwed together to form a secure, finished window division.
Each DB47511 includes 100' (30.5 m) of glazing vinyl and 20 machine screws. Long-life anodized finishes and extruded aluminum construction provide corrosion resistance and a clean architectural appearance—ideal when you need a durable, low-maintenance deep division bar for window glazing projects.
Product Warning:
Must ship common carrier if over 98" (2.49 m) length.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.
