CRL-U.S. Aluminum Series 250 72x84 Narrow-Stile Gear-Hinge Door KYNAR®
CRL-U.S. Aluminum Series 250 72x84 Narrow-Stile Gear-Hinge Door KYNAR®
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD22971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass (by others) or optional 1" (25 mm) tempered insulating unit — glass not included

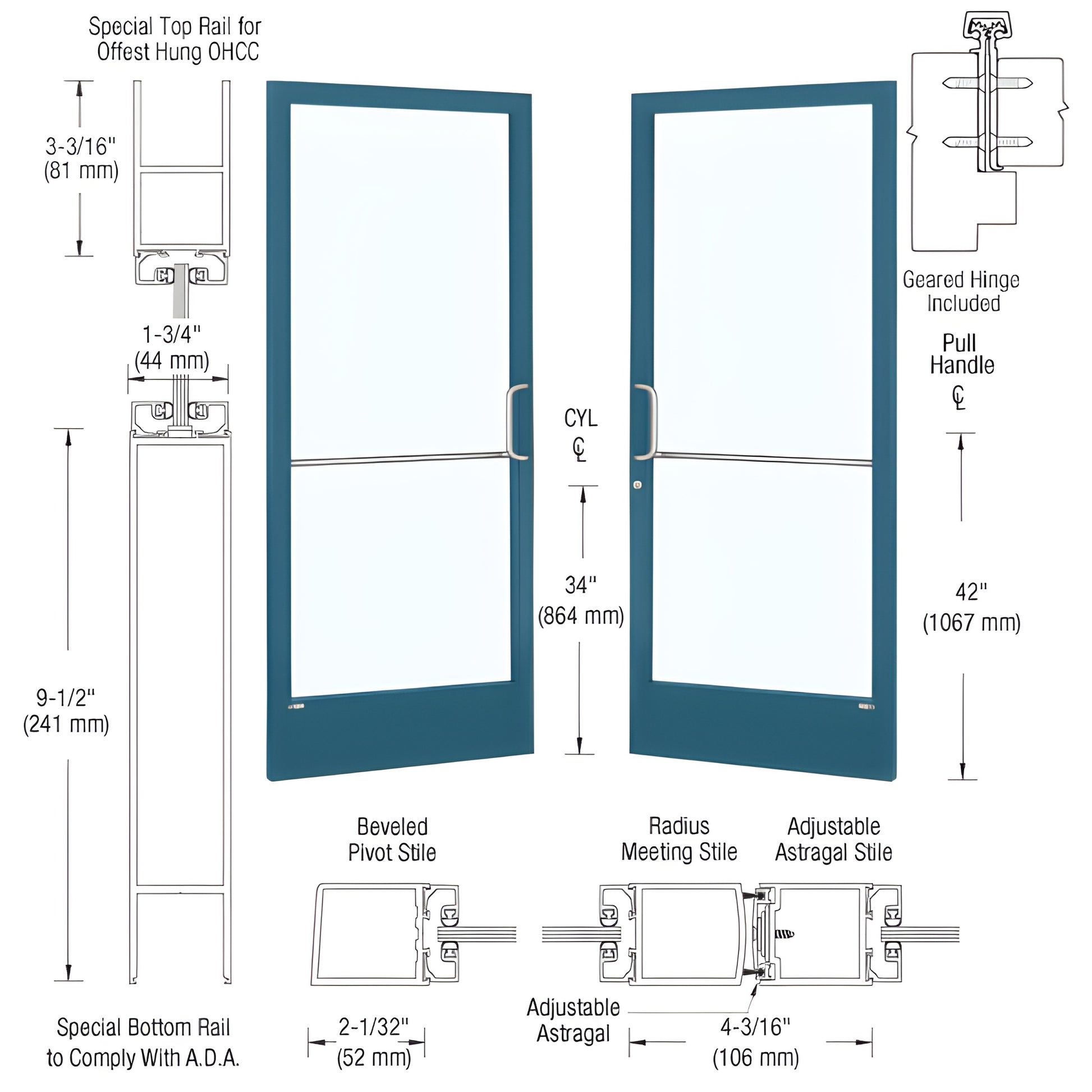

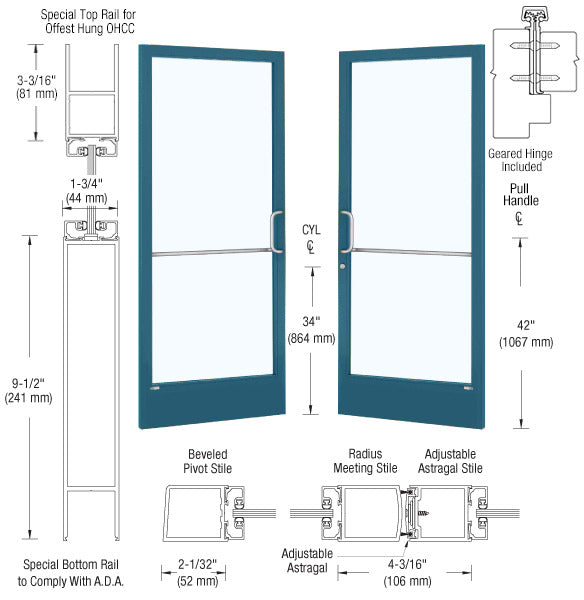

CRL Custom Narrow Stile Entrance Door (SKU: CD22971) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed as a narrow stile entrance door for commercial storefronts, it ships ready for Gear Hinge hardware and includes glass stops for 1/4" tempered glass. Built for custom fabrication, this model accepts a wide range of optional hardware applications for tailored entry solutions.
Key differentiators: ADA-compliant bottom rail, narrow stile profile for modern storefronts, Gear Hinge hardware-ready, and option for insulated tempered glass units—ideal for energy-conscious commercial entrances.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
To configure options or request a quote for SKU CD22971, contact CRL Customer Service or request a quote now.
Specifications
BIM Objects - rvt
