CRL-U.S. Aluminum Series 550 Wide Stile Geared Hinge Entry Door Kynar
CRL-U.S. Aluminum Series 550 Wide Stile Geared Hinge Entry Door Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD52871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- Includes both active and inactive leafs with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications; prepared for Gear Hinge hardware and standard glass stops

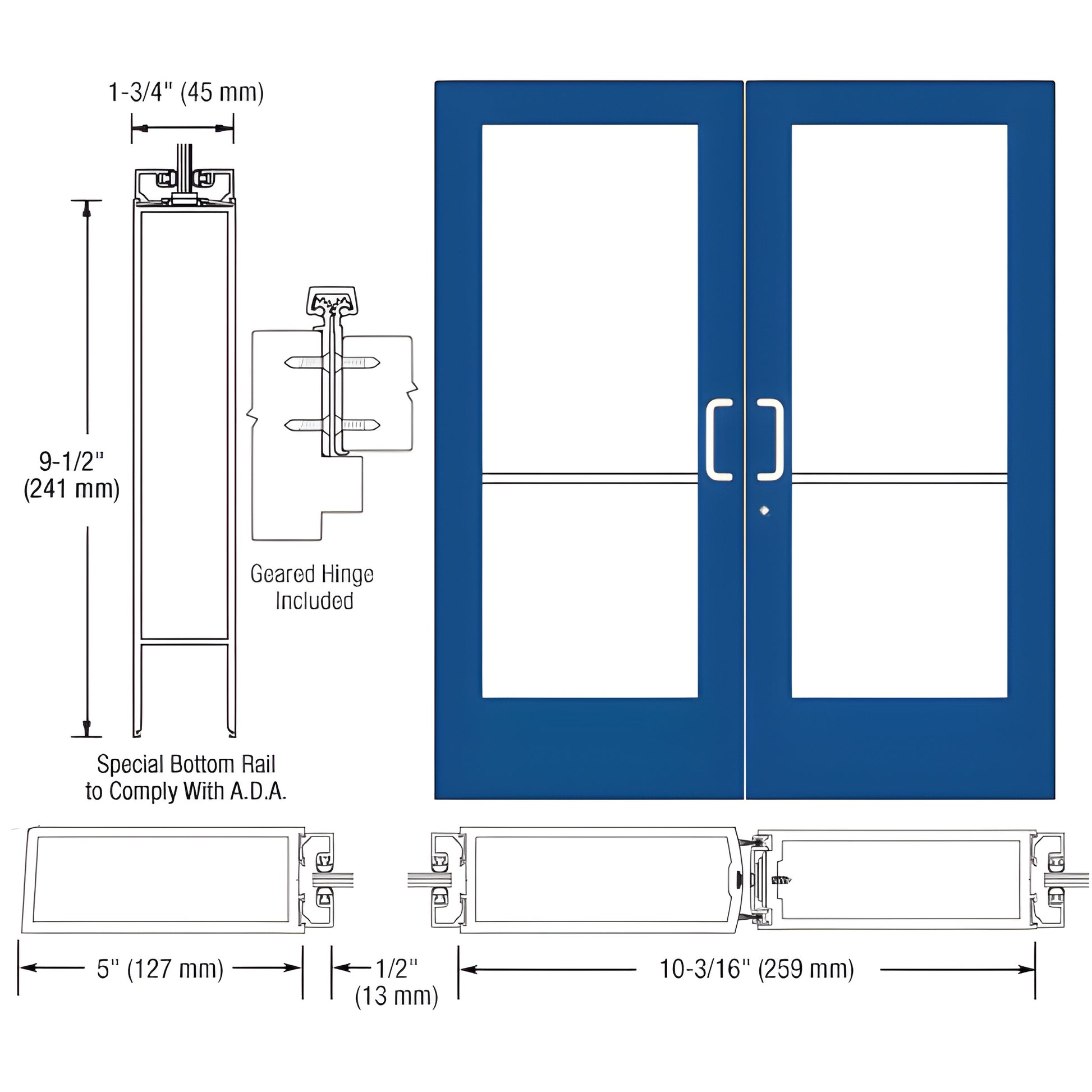

This CRL Custom Wide Stile Entrance Door is fabricated with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard features include glass stops sized for 1/4" (6 mm) tempered glass (by others) and preparatory fabrication for Gear Hinge hardware and other optional hardware configurations.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
SKU: CD52871
For custom hardware options or ordering information, contact CRL or add SKU CD52871 to your cart to get started.
Specifications
BIM Objects - rvt
