CRL-U.S. Aluminum S550 Custom KYNAR Entrance Door Pair ADA Butt-Hinge
CRL-U.S. Aluminum S550 Custom KYNAR Entrance Door Pair ADA Butt-Hinge
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD52571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with all standard hardware (handles/pivots boxed separately to prevent transit damage)
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications (ready for butt hinge hardware)

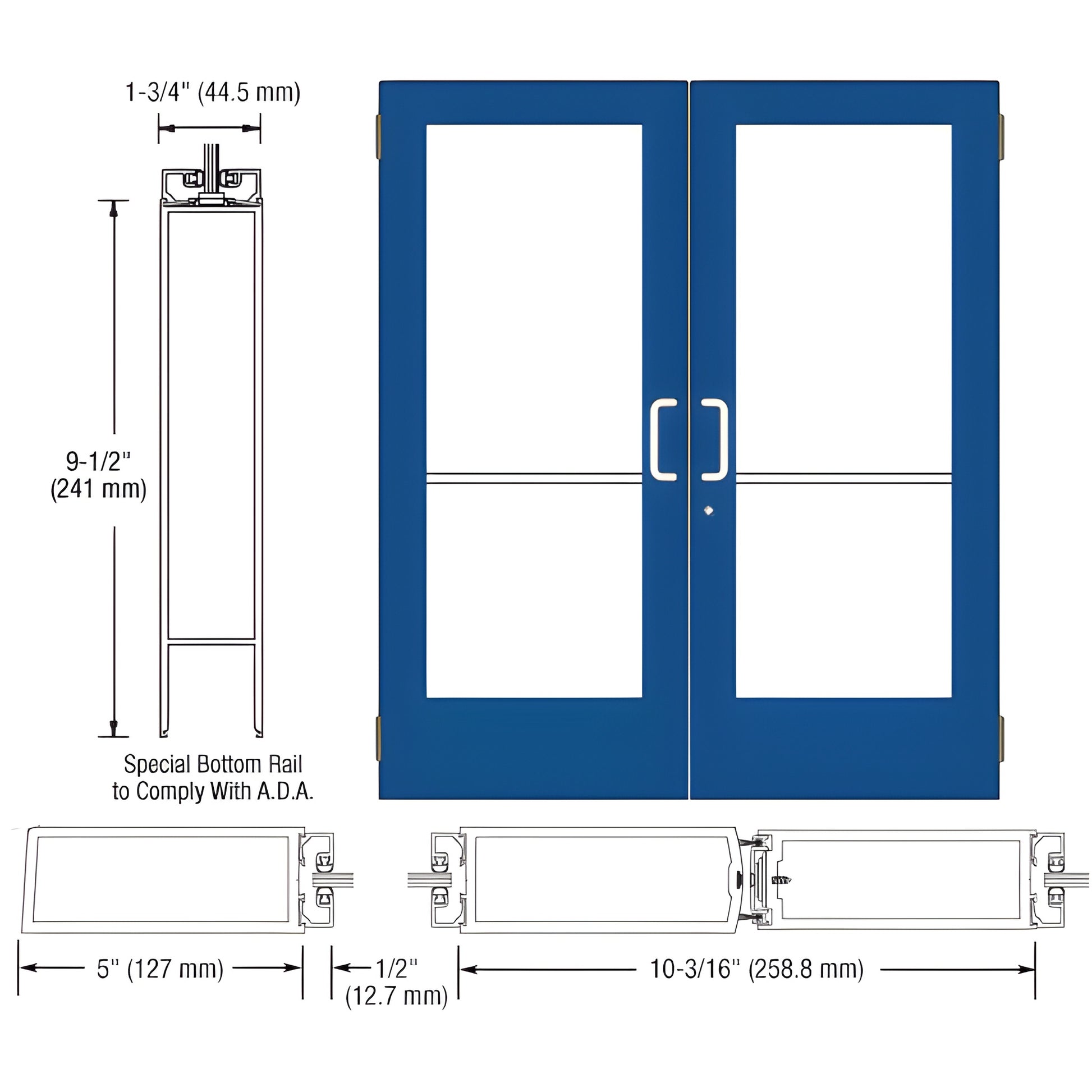

This CRL Custom Wide Stile Entrance Door (SKU: CD52571) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial glass entrance installations, it includes glass stops for 1/4" (6 mm) tempered glass and is built for custom hardware integration and retrofit applications.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.
Order SKU CD52571 or contact CRL Sales for customization and lead times.
Specifications
BIM Objects - rvt
