CRL-U.S. Alum Deep Division Bar w/ Vinyl 1-3/4x2-3/4, 24' Dark Bronze
Item# DB47422
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Dark Bronze Anodized
Height
2-3/4
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-3/4"
Width
1-3/4
- Available in four finishes
- Supplied with glazing vinyl and screws
- Back bar punched 12" (305 mm) on center

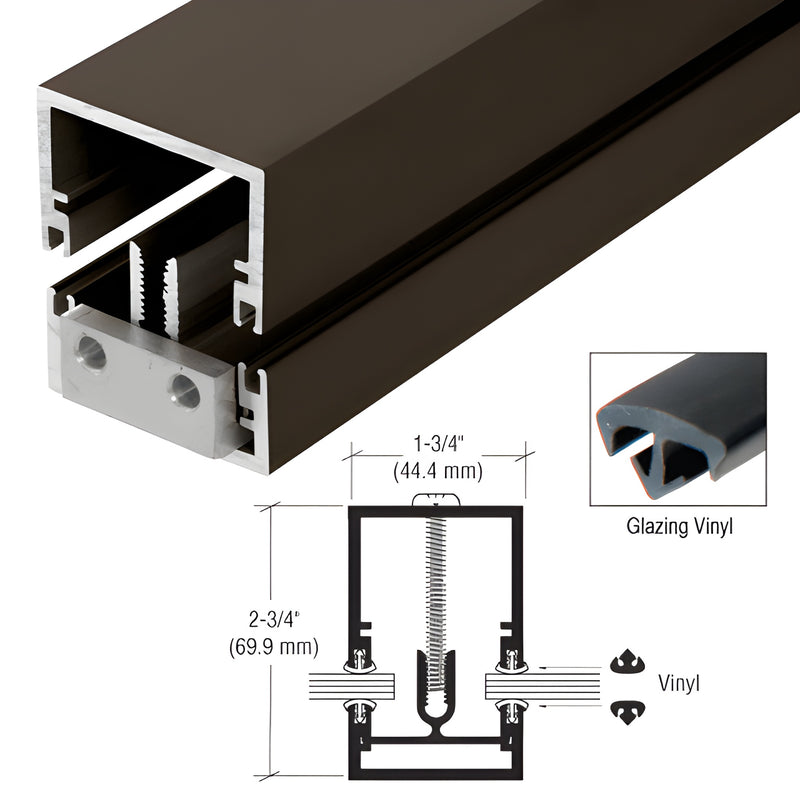

CRL Deep Division Bar (SKU: DB47422) — lightweight extruded aluminum division bar with included glazing vinyl, engineered for small fixed window units and storefront applications. Use vertically or horizontally to create clean sightlines and secure glass infill. The system consists of a face member with an extruded spline and threaded holes for exposed fasteners and a drilled back member; the two pieces are screwed together after glazing is installed. Each piece includes 100' (30.5 m) of glazing vinyl and twenty 1/4-20 x 1-3/4" (44.4 mm) pan head Phillips machine screws.
Product Warning:
Must ship common carrier if over 98" (2.49 m) length.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to placing your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor settings.
