• DB175DU dark bronze anodized extruded aluminum deep division bar with vinyl gasket and screws, 144 in length
1 1

CRL

CRL-U.S. 12 ft Deep Aluminum Division Bar w/ Vinyl Gasket - Dark Bronze Anodized

CRL-U.S. 12 ft Deep Aluminum Division Bar w/ Vinyl Gasket - Dark Bronze Anodized

$683.43 CAD
$683.43 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DB175DU
Shipping Weight: 10.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cuttable
Yes
Finish/Color
Dark Bronze Anodized
Height
2-3/16
Includes
Vinyl and Screws
Length
144
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-11/16"
Width
1-3/4

Overview

  • Available in Satin Anodized and Dark Bronze finishes
  • Supplied with vinyl gasket and mounting screws
  • Back bar is punched 12" (305 mm) on center for fast installation

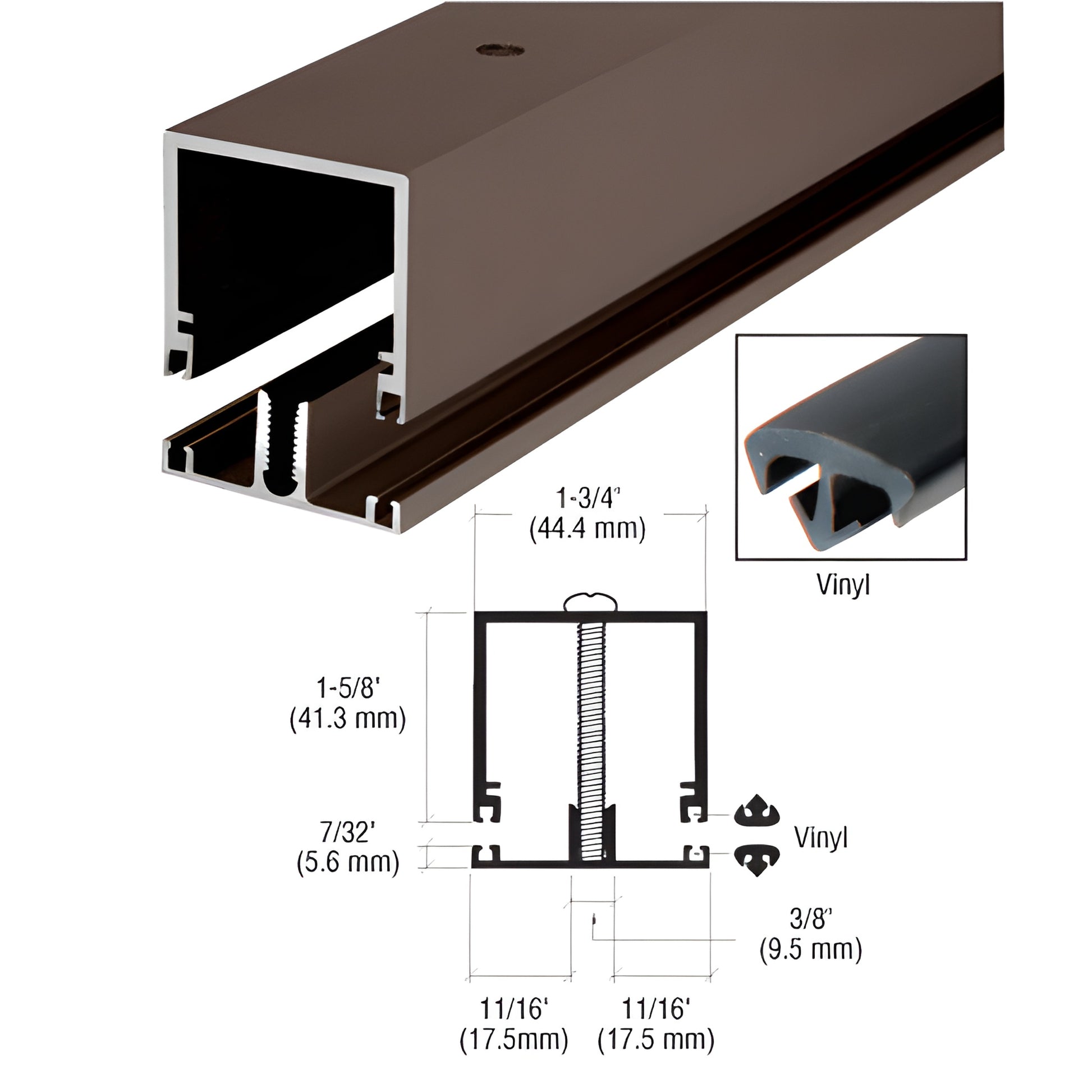

CRL Deep Division Bar (SKU: DB175DU) with vinyl gasket divides an existing opening so two glass panels can be used in place of a single pane. This deep division bar for glass panels helps customers avoid the cost of replacing an entire glazing unit when only a small section is damaged. Each bar includes 50' (15 m) of vinyl and ten 1/4-20 x 1-11/16" (42.9 mm) pan head Phillips machine screws for secure attachment.


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Weights are approximate. If you need exact shipping weight to calculate costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.


Order the DB175DU deep division bar for glass panels today to reduce replacement costs and simplify glazing repairs.
