CRL-U.S. 12' Aluminum Deep Glass Division Bar w/ Vinyl, Satin Anodized
Item# DB175A
Shipping Weight: 10.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

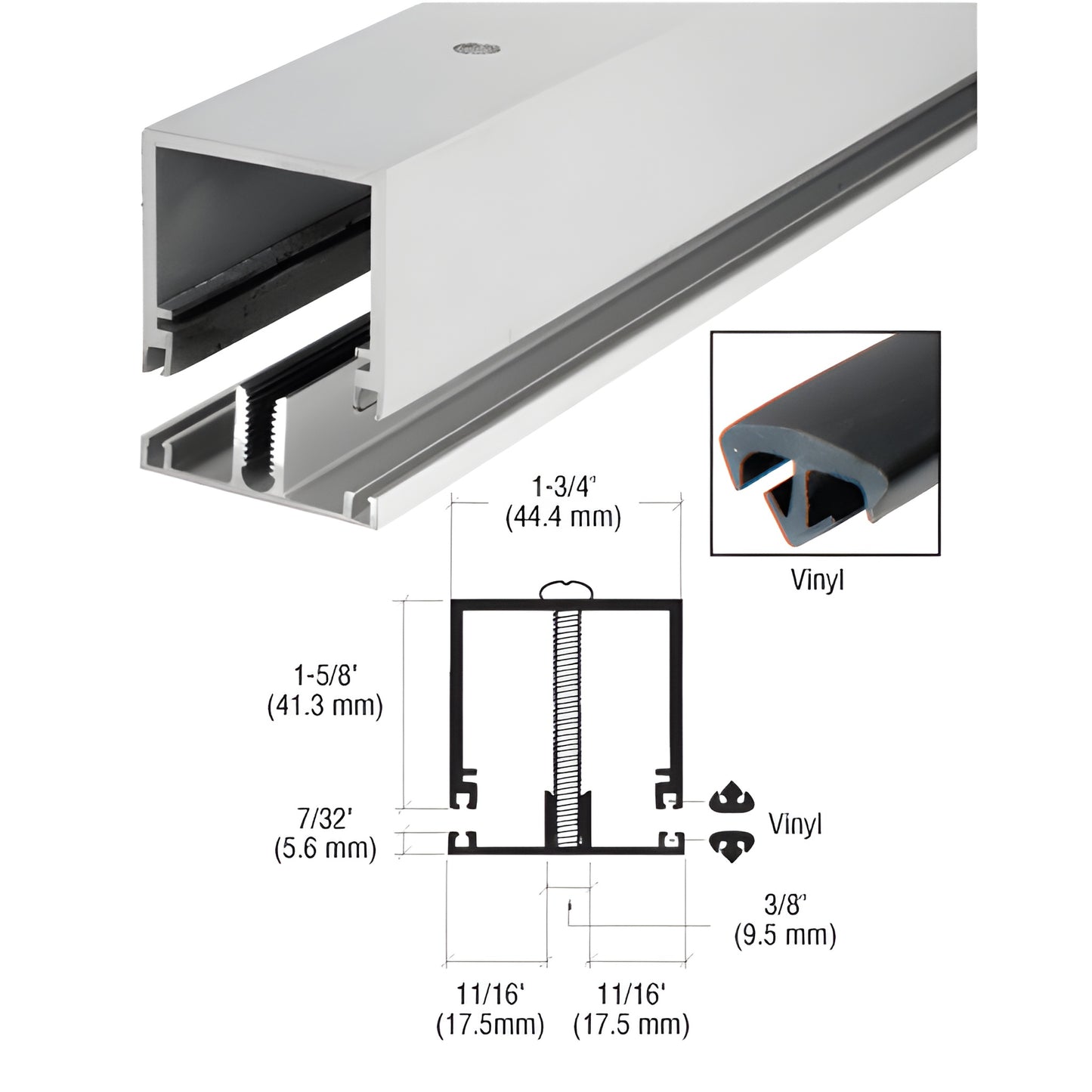

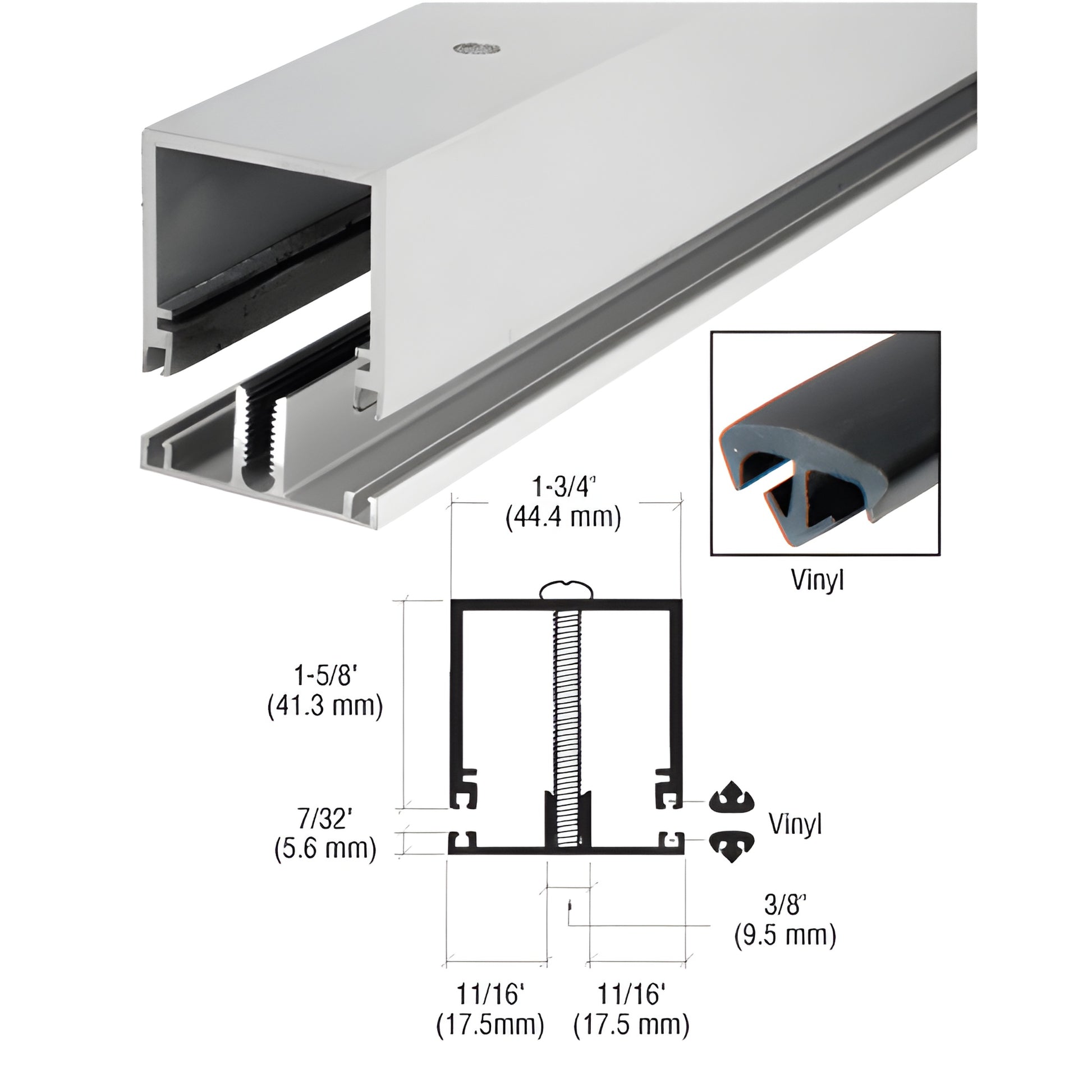

Cuttable
Yes
Finish/Color
Satin Anodized
Height
2-3/16
Includes
Vinyl and Screws
Length
144
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-11/16"
Width
1-3/4
- Available in Satin Anodized and Dark Bronze finishes
- Supplied with vinyl gasket and 10 each 1/4-20 x 1-11/16" (42.9 mm) pan head Phillips machine screws
- Back bar is punched 12" (305 mm) on center for easy installation
CRL Deep Division Bar (SKU: DB175A) — a heavy-duty division bar with vinyl gasket designed to divide an existing opening so two pieces of glass can be used instead of replacing the entire unit. This saves cost when only a small portion of the glass is damaged. Each deep division bar includes 50' (15 m) of vinyl and the 10 pan head screws shown above. Ideal for glass partition repairs, shower door glass replacements, and custom storefront glass applications where a deep division bar with vinyl is required.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor.
Order DB175A now to keep repair costs down and simplify glass replacement—contact CRL Customer Service to confirm cut-to-size shipping options.
