CRL-U.S. Aluminum Deep Division Bar w/ Vinyl, Dark Bronze - 24'
Item# DB47522
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Dark Bronze Anodized
Height
2-3/16
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-11/16"
Width
1-3/4
- Available in Clear Anodized and Dark Bronze finishes
- Supplied with glazing vinyl and 1/4-20 x 1-11/16" (42.9 mm) pan head Phillips machine screws (20 per piece)
- Back bar punched 12" (305 mm) on center for easy installation

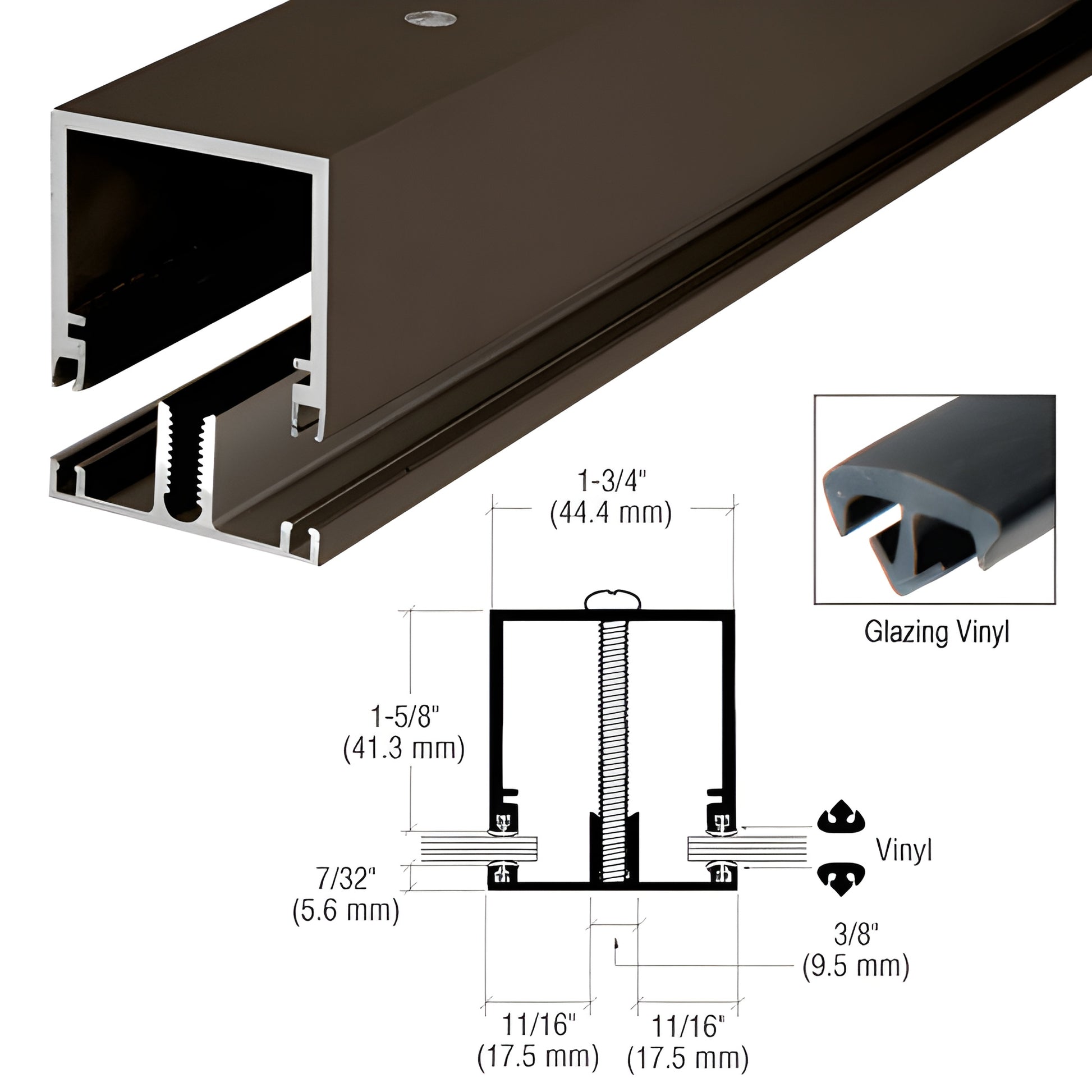

CRL Deep Division Bar (SKU: DB47522) is a lightweight extruded aluminum division bar designed for small fixed window units. Use vertically or horizontally to create clean sightlines. Each division bar includes an extruded face member with a threaded spline for exposed fasteners and a drilled back member that screws to the face after glazing infill is installed. Included: 100' (30.5 m) glazing vinyl and 20 machine screws. Ideal for applications requiring a deep division bar with vinyl for secure glazing and a finished architectural appearance.
Product Warning:
Must ship common carrier if over 98" (2.49 m) length.
