CRL-U.S. Aluminum S400 Offset Geared Hinge — Panic/Concealed Closer

• Selected panic hardware and one cylinder ordered and added separately
• Includes standard panic pull and hanging hardware
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)
• 6-1/2" (165 mm) bottom rail
• Custom fabricated to accept optional hardware applications

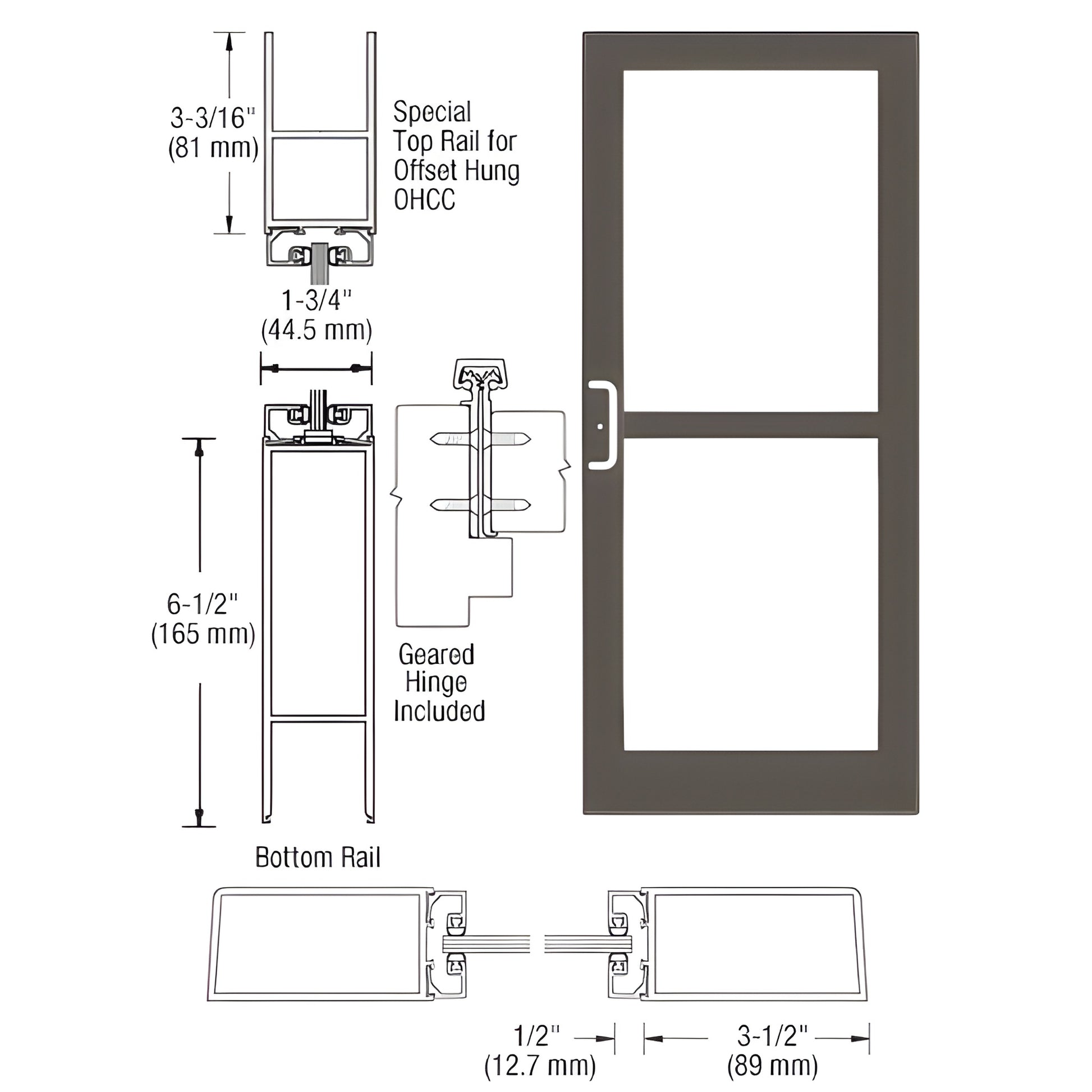

This Custom Medium Stile Entrance Door (SKU: DZ41922) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial and storefront use, it ships with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass supplied by others. The door is prepped for a wide range of optional hardware applications, including panic hardware and commercial-grade locks.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements—verify dimensions for accessibility compliance.
