CRL-U.S. Aluminum S400 Offset-Hung Doors, KYNAR, Geared Hinge
CRL-U.S. Aluminum S400 Offset-Hung Doors, KYNAR, Geared Hinge
Regular price
$2,884.51 CAD
Regular price
Sale price
$2,884.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ42871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes Standard Panic Pull and Hanging Hardware
- Selected panic hardware and one cylinder ordered and added separately
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

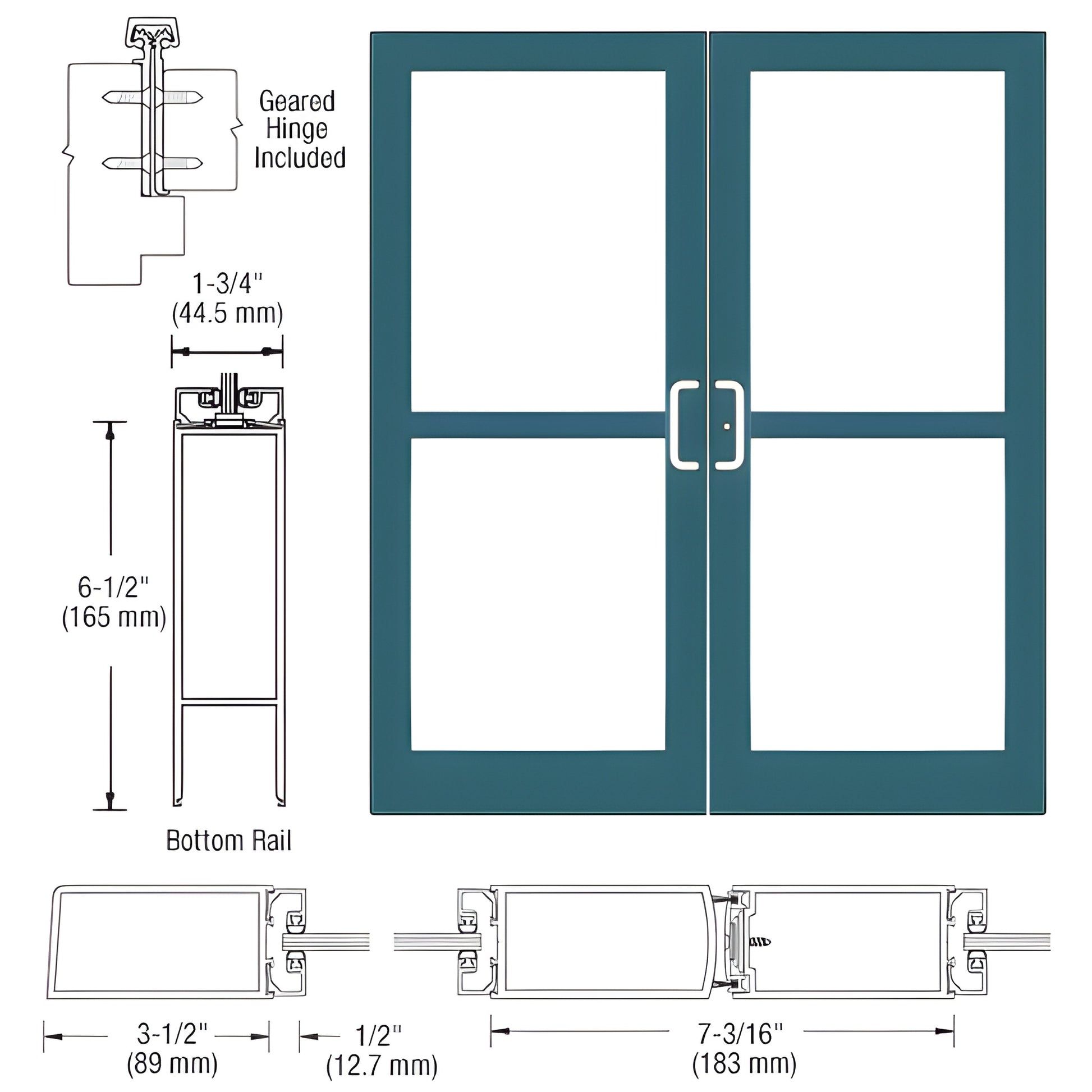

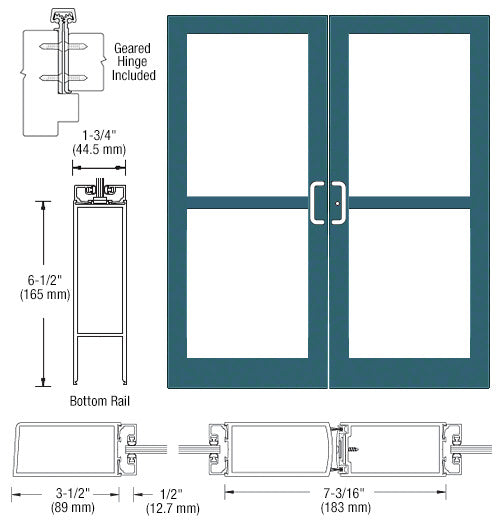

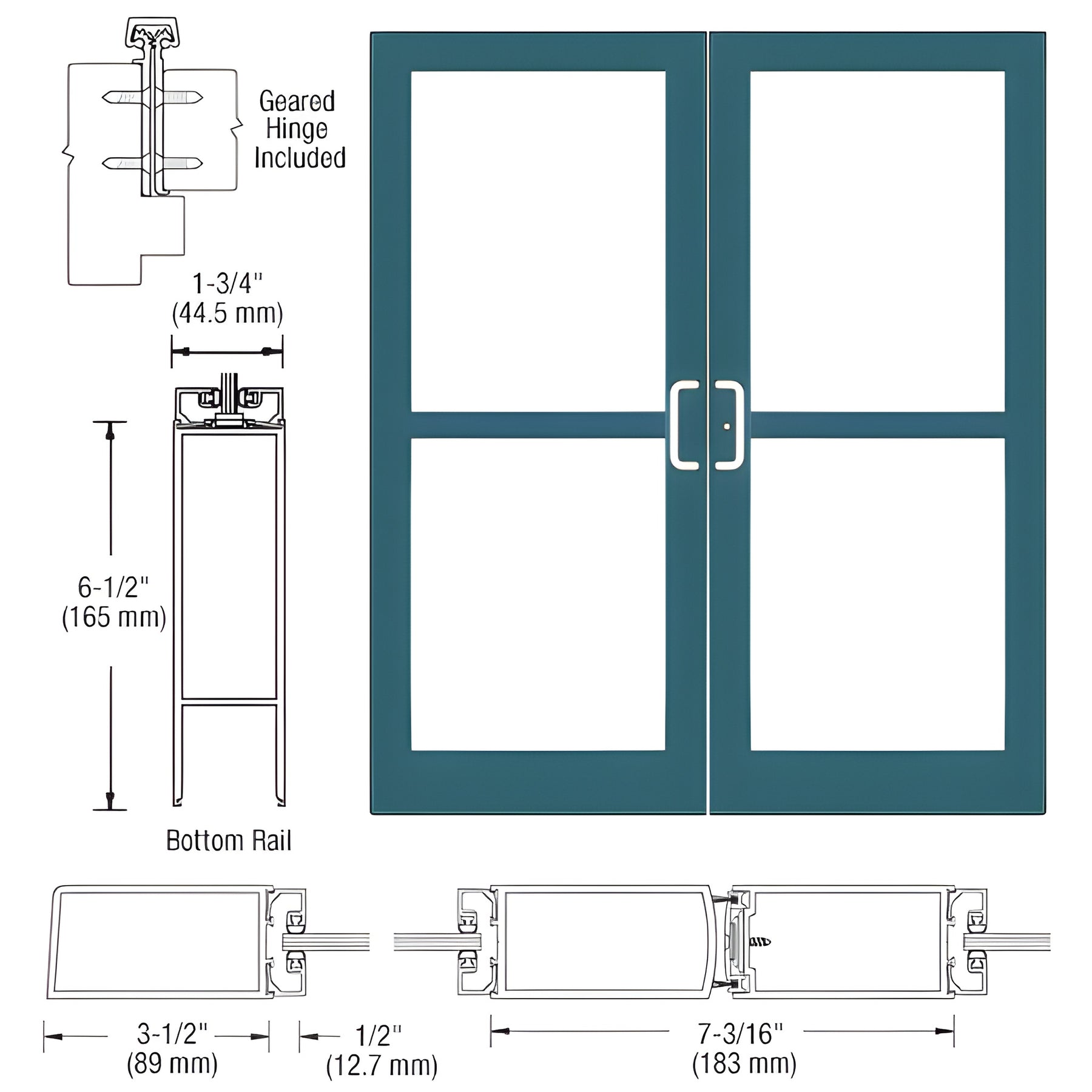

Custom Medium Stile Entrance Door — SKU: DZ42871. Built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Custom fabrication supports commercial-grade hardware options for storefronts, offices, and institutional entrances.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order this customizable, hardware-ready medium stile entrance door (SKU DZ42871) for reliable commercial performance — contact us to get started.
Specifications
BIM Objects - rvt
