CRL-U.S. Aluminum S400 Offset Pivot Entry Door, Black Anodized, Panic

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder (SKU: CZ41122)
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.; door widths under 36" (914 mm) may not pass A.D.A. inspection
• Custom fabricated to accept a wide range of optional hardware applications and offset pivot systems

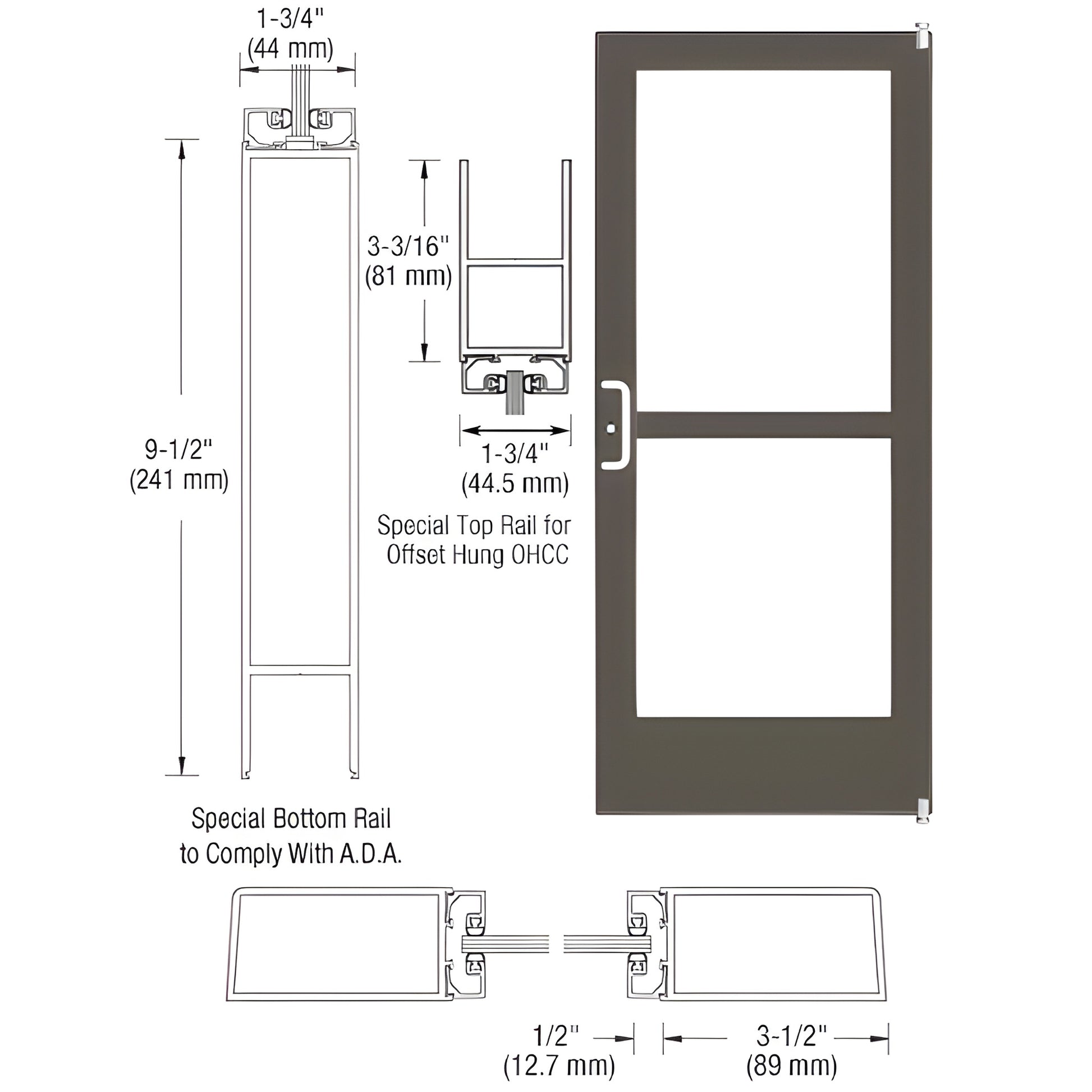

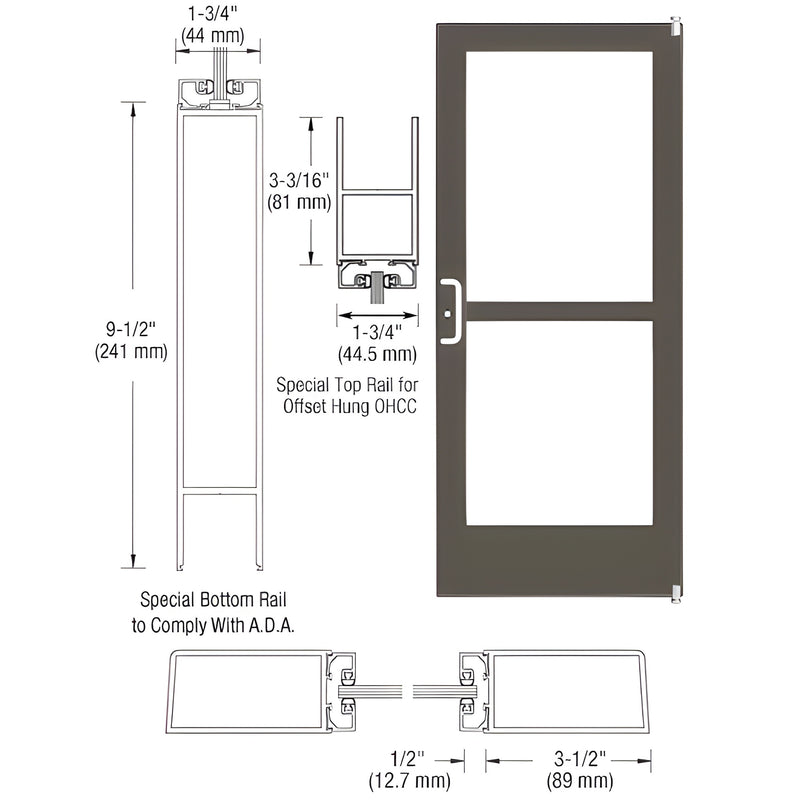

This CRL Custom Medium Stile Entrance Door is engineered for commercial glass storefronts and entrances, built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard stiles accept offset pivot hardware and include glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to support additional hardware options, including concealed vertical rod panic hardware for secure egress.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage.

Order SKU CZ41122 or contact CRL for custom hardware configurations and lead times.
