CRL-U.S. Aluminum S550 Kynar Wide-Stile Door - Panic/Concealed Closer
CRL-U.S. Aluminum S550 Kynar Wide-Stile Door - Panic/Concealed Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ51471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) ADA-compliant bottom rail option for Title 21 and accessibility applications
- Custom fabricated to accept a wide range of optional hardware, including selected panic hardware
- Selected panic hardware and cylinder ordered and installed separately
- Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots) boxed separately to prevent transit damage

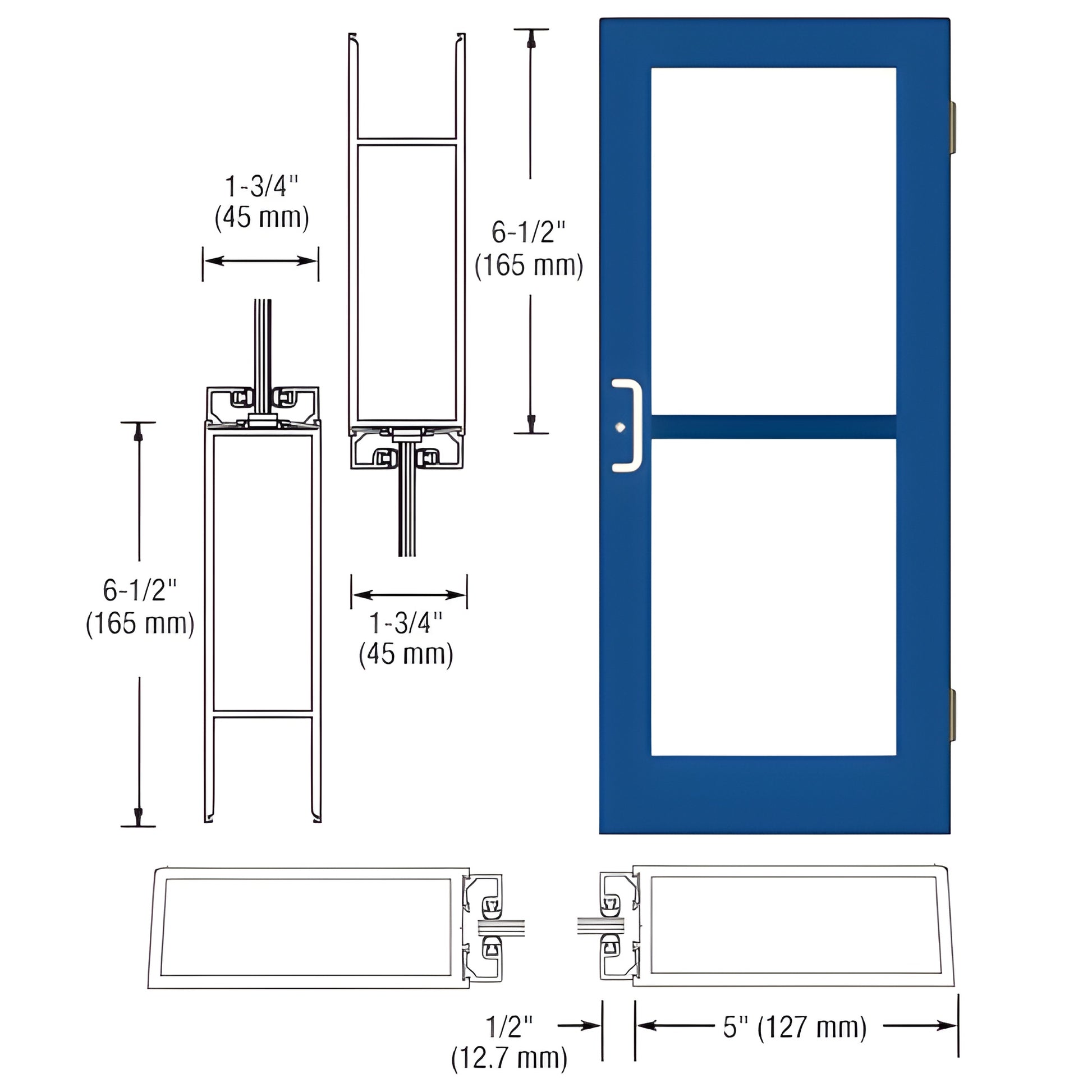

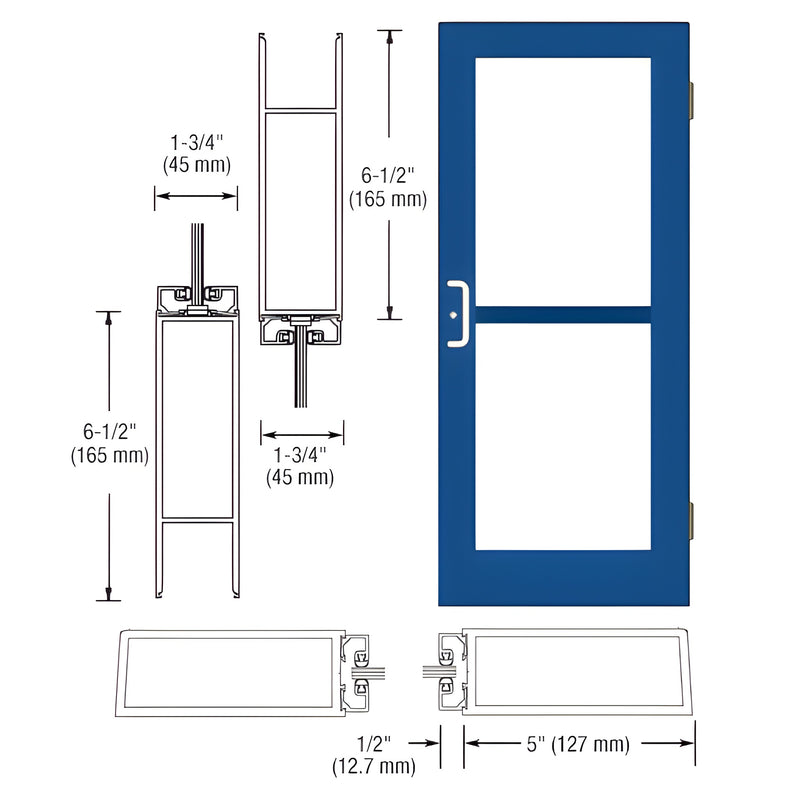

Custom Wide Stile Entrance Door (SKU: DZ51471) — Built for commercial and institutional entrances, this door features 5" (127 mm) stiles, a 6-1/2" (165 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction includes stiles sized for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Door is prepared for custom fabrication to support optional hardware applications and panic devices.
Note: Door widths under 36" (914 mm) may not meet ADA inspection requirements. Customer is responsible for installing boxed protruding hardware after delivery.
Order SKU DZ51471 or contact us for pricing and lead time.
Specifications
BIM Objects - rvt
