CRL-U.S. Aluminum Series 250 KYNAR® Narrow Stile Geared-Hinge Doors
CRL-U.S. Aluminum Series 250 KYNAR® Narrow Stile Geared-Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ22871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 7-1/2" (191 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications for commercial entry systems
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

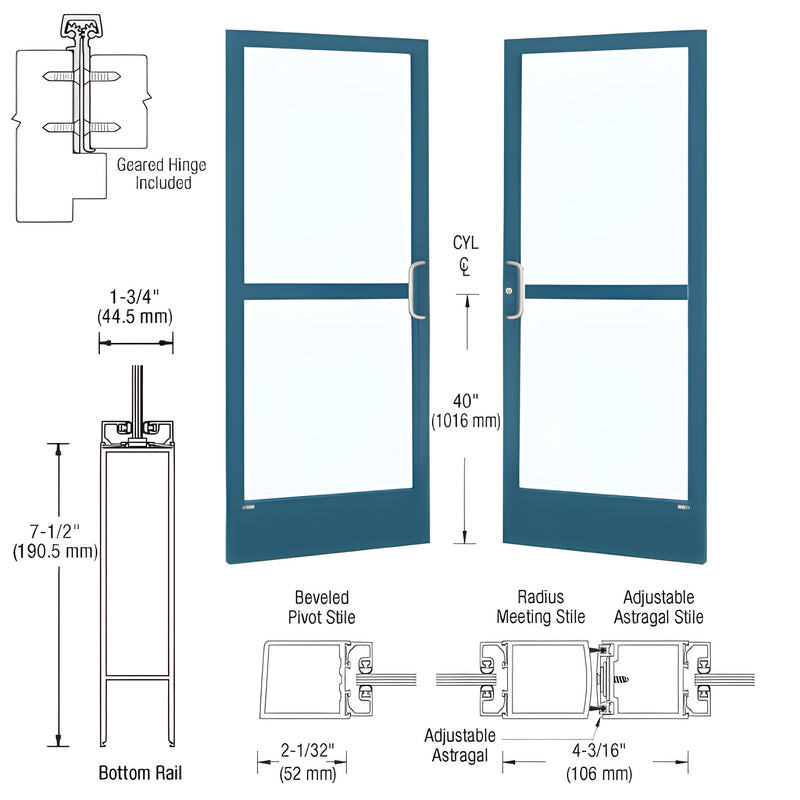

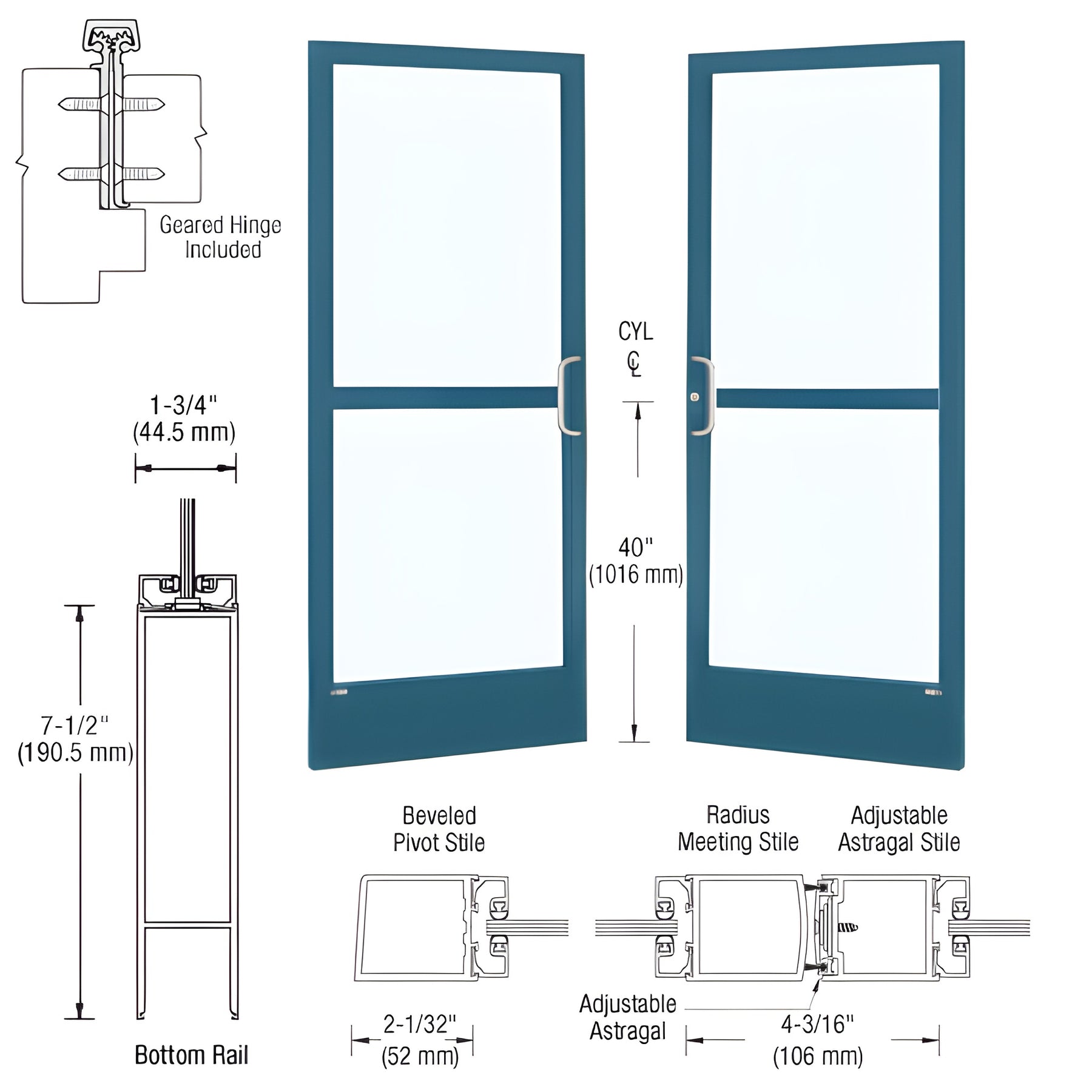

This Custom Narrow Stile Entrance Door (SKU HZ22871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard design includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Door is prepped for custom fabrication and a wide range of optional hardware applications, ideal for commercial storefronts and ADA-compliant entrances.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Specifications
BIM Objects - rvt
