CRL-U.S. Aluminum Series 250 Narrow Stile Geared Hinged Doors, Kynar
CRL-U.S. Aluminum Series 250 Narrow Stile Geared Hinged Doors, Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE22971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4” (6 mm) tempered glass; optional 1” (25 mm) tempered insulating unit can be used (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

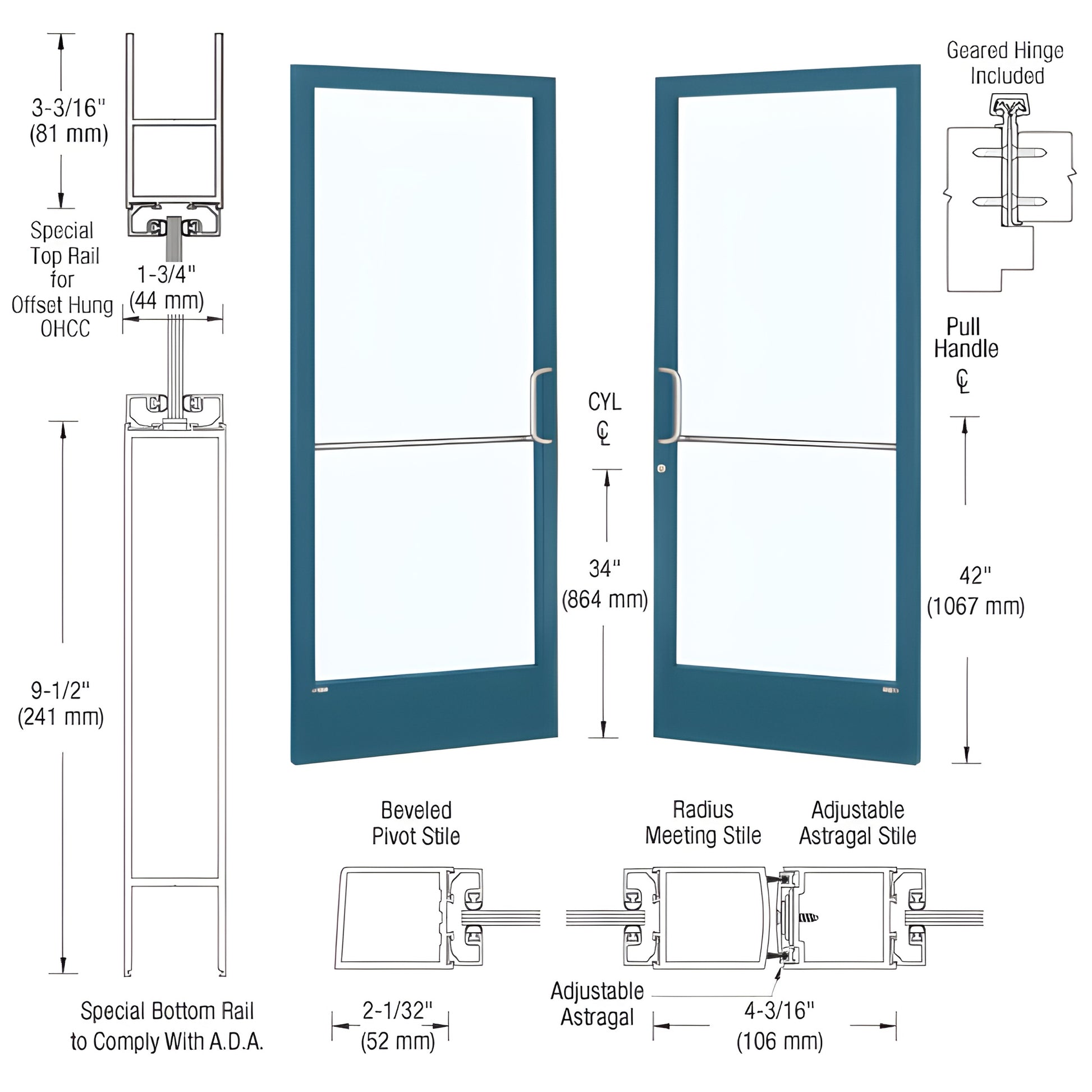

This Custom Narrow Stile Entrance Door (SKU: DE22971) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard design includes stiles prepared for Gear Hinge hardware and glass stops for 1/4” (6 mm) tempered glass (glass supplied by others). Engineered for custom fabrication, this narrow stile door is ideal for storefront, commercial, and accessibility-focused entrance solutions.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage.
Order this custom narrow stile entrance door for a durable, ADA-ready storefront solution—contact us to request exact weight or place your order.
Specifications
BIM Objects - rvt
