CRL-U.S. Aluminum Series 550 Kynar Wide-Stile Butt-Hinge Door Pair
CRL-U.S. Aluminum Series 550 Kynar Wide-Stile Butt-Hinge Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ52571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

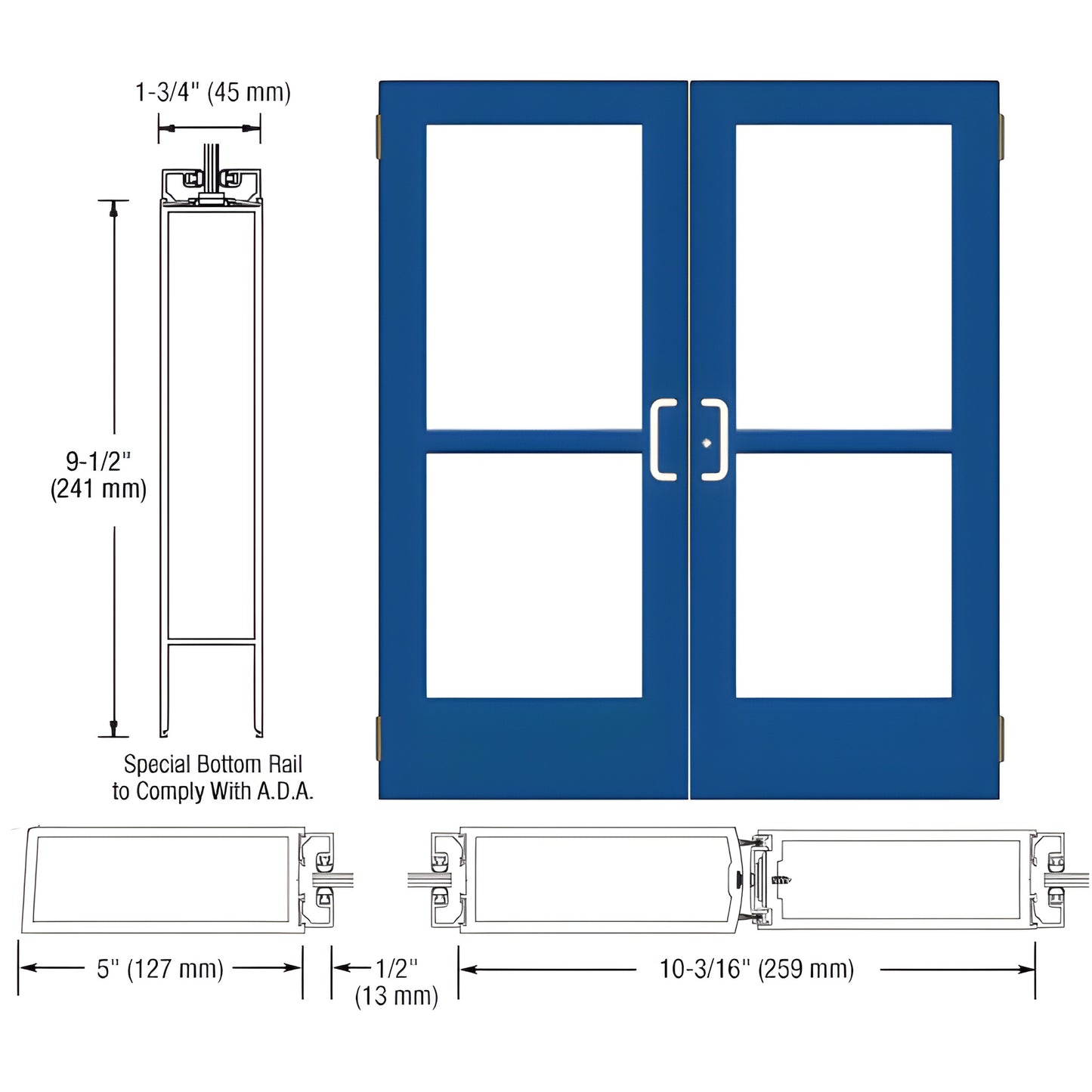

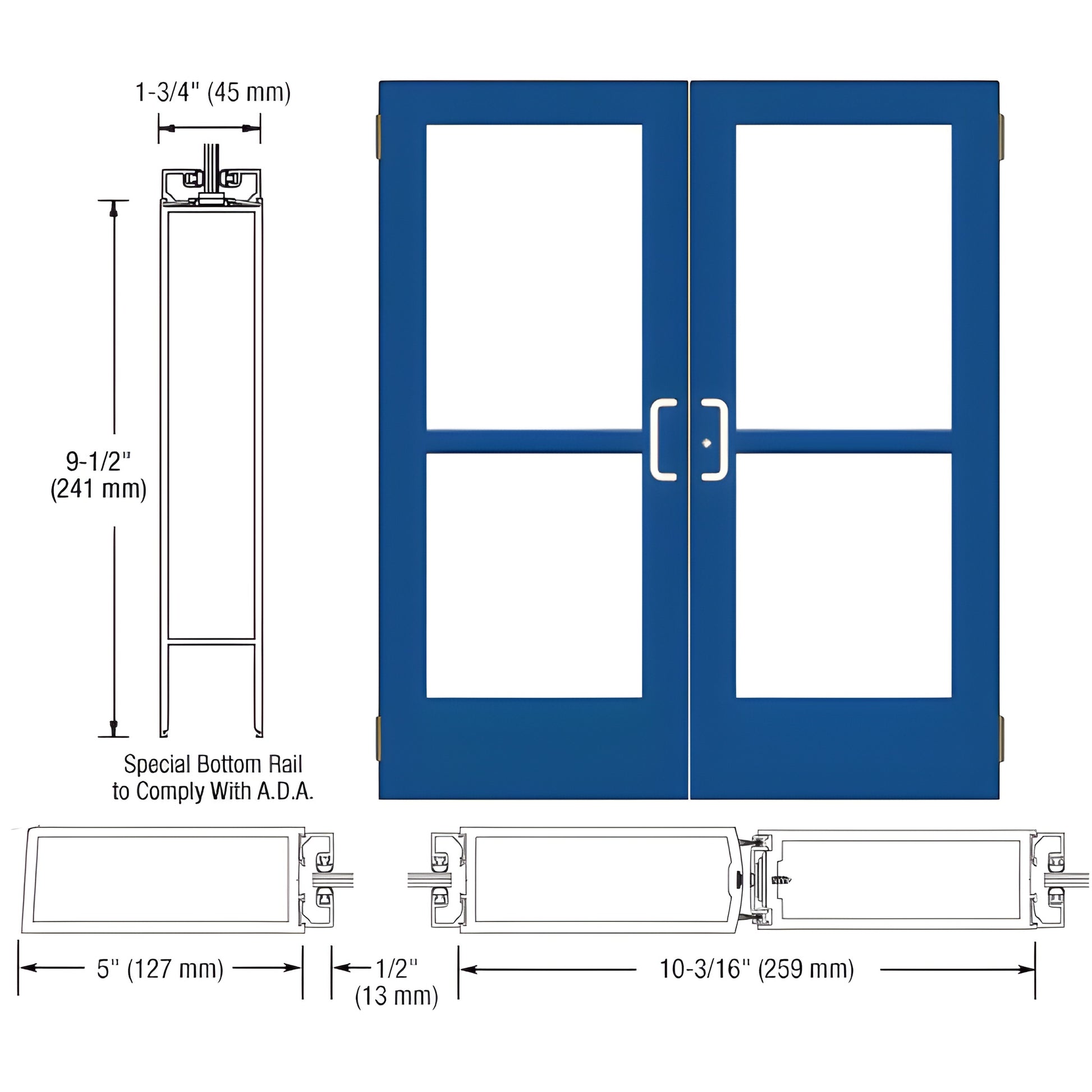

This CRL Custom Wide Stile Entrance Door (SKU: CZ52571) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) A.D.A. bottom rail. Designed as a custom wide-stile entrance door for commercial and institutional projects, it ships ready for Butt Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Engineered to accept a wide range of optional hardware applications, this model stands out for its concealed vertical rod panic hardware and field-ready configuration for handles, pivots, and other protruding hardware (boxed separately to prevent transit damage).
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.
Specifications
BIM Objects - rvt
